USED 2007 DOOSAN PUMA 300LC
Overview
Description

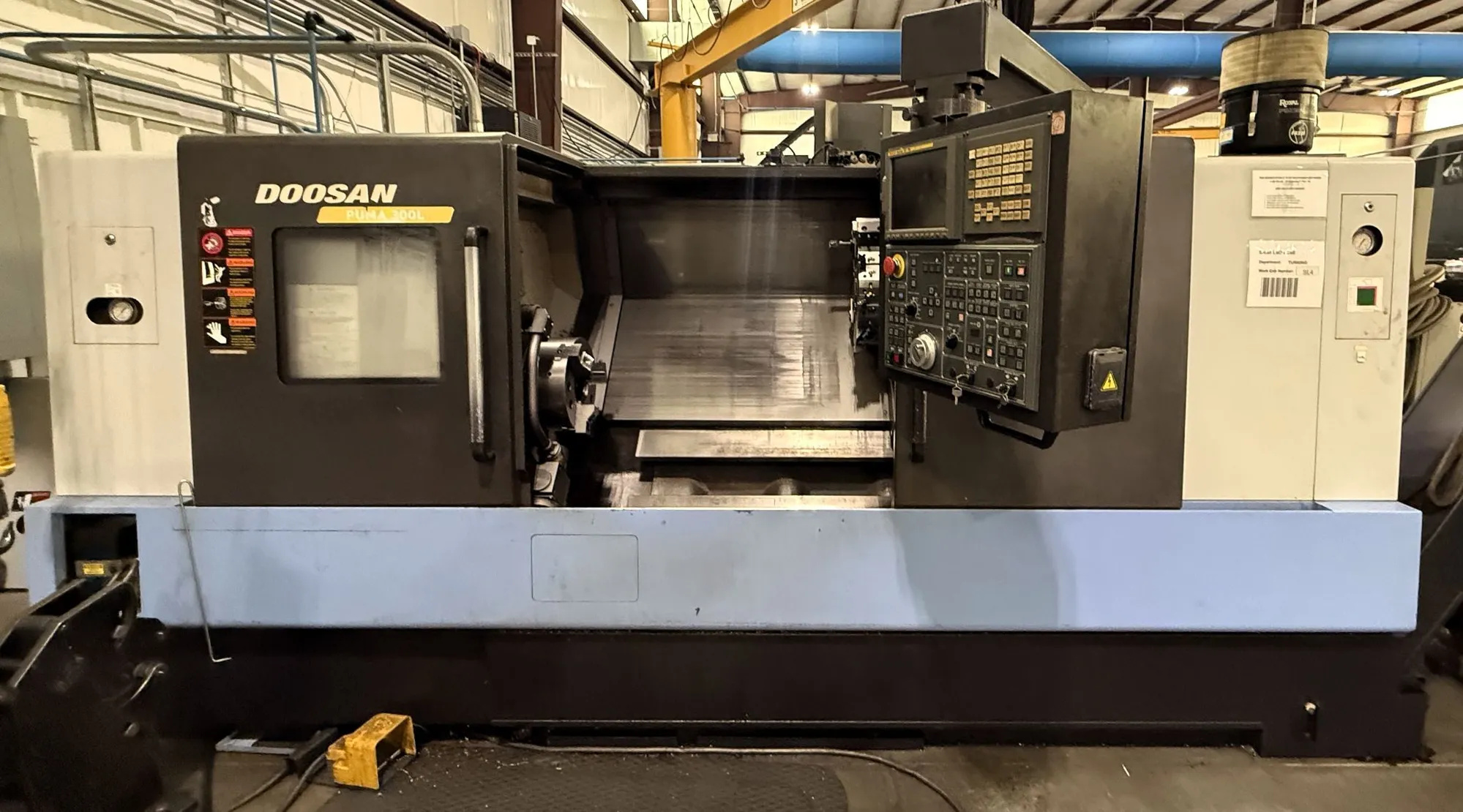

DOOSAN PUMA 300LC CNC Turning Center, New in 2007.
12-station bi-directional turret
Fanuc i-Series CNC control
Slant-bed design with rigid construction
Automatic lubrication and coolant systems
Chip conveyor and parts catcher
Specifications
| Swing | 23.2" | 589.28 mm |
|---|---|---|
| Machining Length | 34" | 863.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 17.3" | 439.42 mm |
| Control | CNC (Fanuc i-Series) | CNC (Fanuc i-Series) |
| Dimensions | 164" x 85" x 85" | 164" x 85" x 85" |
| Weight | 17,600 lbs | 17,600 lbs |
General Specifications:
Max Swing 21.6″
Max Turning Diameter 17.3″
Max Turning Length 34.0″
Bar Capacity 3.0″
Spindle Nose A2-8
Spindle Speed 3,500 rpm
Spindle Motor 35 hp
Turret Stations 12
X-Axis Travel 10.2″
Z-Axis Travel 34.0″
Control Fanuc i-Series CNC
Machine Dimensions ~164″ × 85″ × 85″
Machine Weight ~17,600 lb
Equipped With
12-station bi-directional turret
Fanuc i-Series CNC control
Slant-bed design with rigid construction
Automatic lubrication and coolant systems
Chip conveyor and parts catcher
Specifications may vary depending on configuration and options.
Always confirm with Doosan nameplate or factory documentation.
