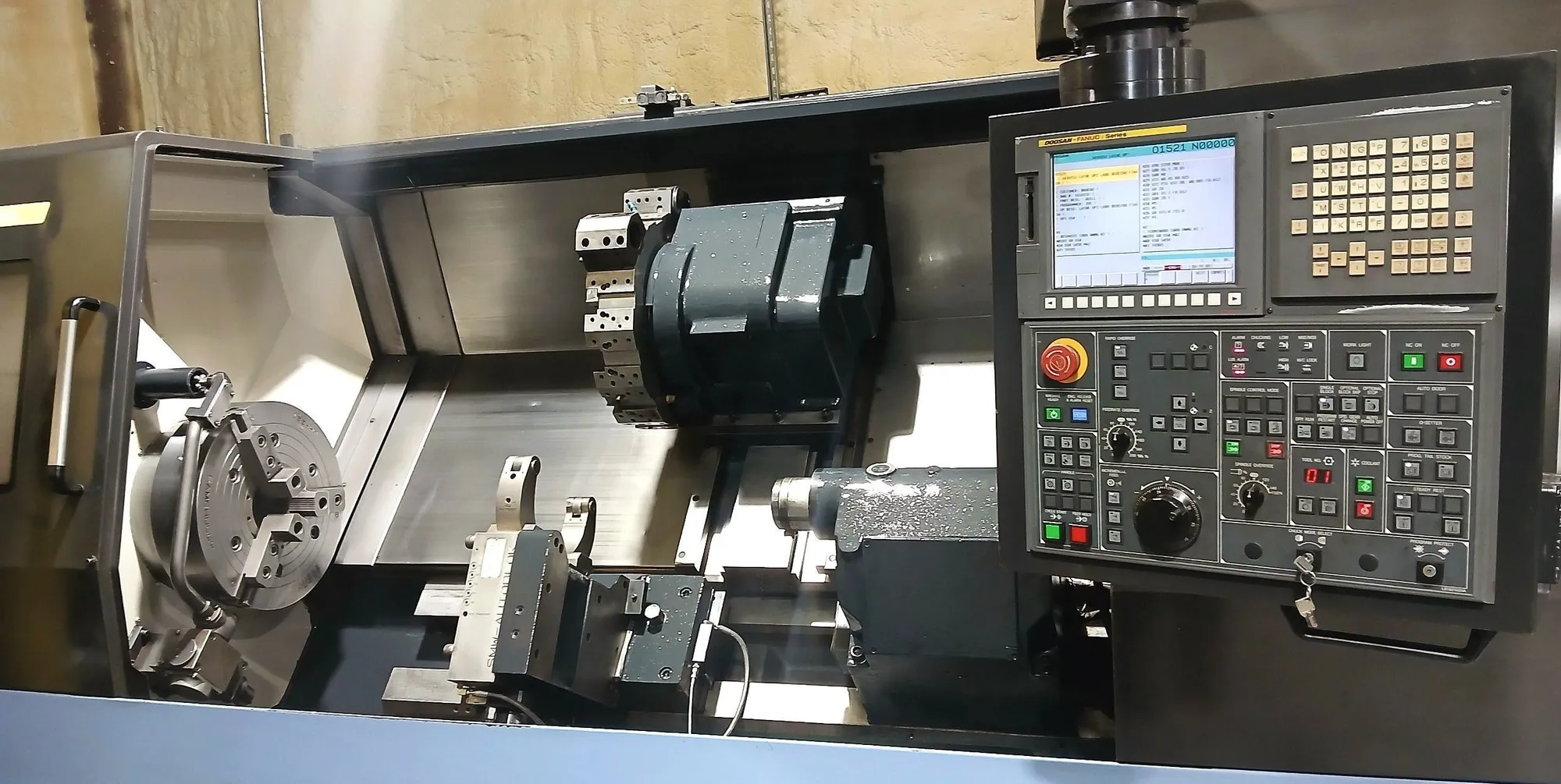

2012 Doosan Puma 400LC CNC Turning Center 21" 3-Jaw 6.5" Big Bore and Installed SMW Auto blok SLU-Z4 Hydraulic Automatic Steady Rest 1.20” to 9.60” Capacity Z-Travel by Turret. Very Low Cutting Hours 7,052 Cutting Hours!
| Swing | 27.56" | 700.02 mm |
| Machining Length | 82" | 2,082.8 mm |
| Chuck Size | 21" | 533.4 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 21.65" | 549.91 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Fanuc Series i CNC Control) | CNC (Fanuc Series i CNC Control) |
| Dimensions | Height -88.6" x Lenght-166.2" x Width 85.7" | Height -88.6" x Lenght-166.2" x Width 85.7" |
| Weight | 21,750 Lbs | 21,750 Lbs |
2012 Doosan Puma 400LC CNC Turning Center 6.5" Bib Bore and
Installed SMW Auto Blok SLU-Z4 CNC Hydraulic Automatic Steady Rest 1.20” to 9.60” Capacity Steady Design has Z-Travel by Turret.
* Good Condition Very Low Cutting Hours 7,052 Cutting Hours!
MAIN SPECIFICATIONS
Max Swing: 30.3”
Max Cutting Diameter: 21.7”
Max Cutting Length: 81.7”
X - Axis Travel: 14.1”
Z - Axis Travel: 84.8”
Chuck Size: 21”
Bar Capacity: 6.5”
Spindle Bore: 7.1”
Spindle Nose: A2-15
Spindle Motor: 50 HP
Spindle Speed: 1,500 RPM
Turret Positions: 12
Equipped With:
12 Station Turret, Auto Tool Setter, Tailstock and Chip Conveyor, Fanuc Oi-TD Control, 21” 3-Jaw Samchully (MH-221) Hydraulic Chuck 6.5" Bar Capacity, Tailstock, Tool Pre-setter, LNS Turbo Side Discharge Chip Conveyor, 145 PSI Coolant System, 2 Speed Gearbox, Heavy Duty Box Ways Construction.
I look forward to your questions and Interest. Under Power for
Inspections Re-Installing Steady Rest on Interfaced Bracket.
Sincerely,
Mark Murphy
Murphy Machinery
Office: 262-534-4124
Mobile: 414-520-0843
Website: www.murphymachinery.com
Email: [email protected]
