DN Solutions Lynx 2100LYB – 2023
Overview

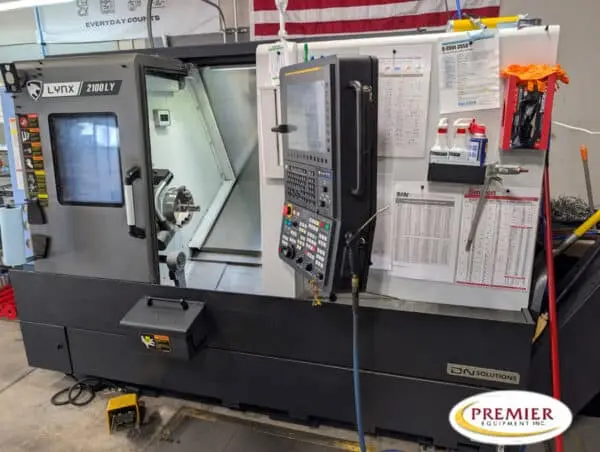

DN Solutions Lynx 2100LYB Multi-Axis CNC Turning Center
Specs
Capacity
Max Turning Diameter11.8”
Max Turning Length20.1”
Bar Working Diameter2.6”
Rapid Traverse X / Z1181 IPM / 1417 IPM
Travel Distance
X-Axis Travel8.1”
Z-Axis Travel22.0”
Y-Axis Travel4.1” (+/- 2.1”)
Main Spindle
Spindle Speed4500 RPM
Main Spindle Motor Power20 / 20 / 15 HP (25% / 15 min / Cont.)
Max Spindle Torque for Turning124.7 lbf-ft
Spindle Through Hole Diameter3”
Turret
No. of Tool Stations12 / 24
Milling Speed: 6000 RPM
Equipped With
Fanuc Series CNC Control
Tool Presetter
Tailstock
Chip Conveyor
Parts Catcher
