Doosan Puma 400LC – 2013
Overview

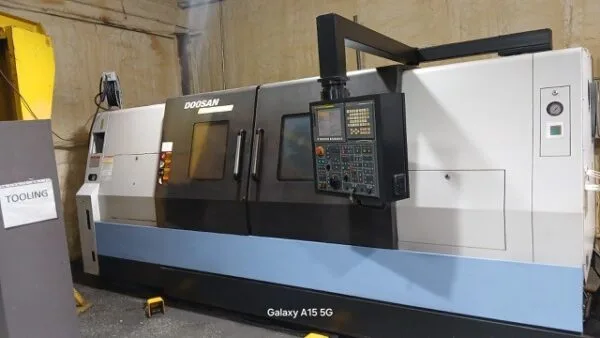

DOOSAN PUMA 400LC CNC Lathe
Specs
Maximum Swing: 30.3″
Maximum Turning Diameter: 23.2″
Maximum Turning Length: 81.7″
Bar Capacity: 6.5″
X Axis Travel: 14.2″
Z Axis Travel: 84.8″
Spindle Motor: 50 HP
Spindle Speed: 1,500 RPM
Spindle Nose: A2-15″
Spindle Bore: 7.1″
Turret Positions: 12
Rapid Traverse X: 630 IPM Rapid Traverse Z: 790 IPM
Tailstock Quill Diameter: Center 4.7″ / MT #5
Approx. Shipping Weight: 25,500 Lbs. Approx.
Shipping Dimensions: 210″ L x 94″ W x 89″ H
Equipped With
Fanuc Control
21″ Hydraulic Chuck
Chip Conveyor
Tool Setter Tailstock
SMW AUTOBLOK
Full Hydraulic Steady Rest
