USED 2021 FANUC M-20ID/25

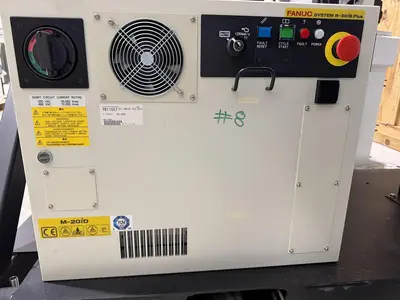

THE 2021 FANUC M-20ID/25 IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR APPLICATIONS SUCH AS ASSEMBLY, LOAD/TRANSFER, DISPENSING, MATERIAL REMOVAL, MATERIAL HANDLING, AND PALLETIZING. IT FEATURES A 25 KG PAYLOAD CAPACITY, AN 1831 MM REACH, AND A REPEATABILITY OF ± 0.02 MM. THE ROBOT HAS A MASS OF 250 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING. AXIS MOTION SPEEDS ARE 210°/S FOR J1 AND J2, 265°/S FOR J3, 420°/S FOR J4 AND J5, AND 700°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±340°, J2 ±260°, J3 ±458°, J4 ±400°, J5 ±360°, AND J6 ±900°. THE SYSTEM INCLUDES A FANUC R-30IB PLUS CONTROLLER, A TEACH PENDANT, AND CONNECTION CABLES. THE UNIT IS EQUIPPED WITH A COMPACT ARM AND WRIST WITH INTERNAL CABLE ROUTING TO ENHANCE ACCESS IN CROWDED ENVIRONMENTS. ITS DESIGN INCORPORATES AN IMPROVED DRIVE TRAIN AND RIGID STRUCTURE FOR ENHANCED MOTION PERFORMANCE AND A GENEROUS WORKING ENVELOPE.
