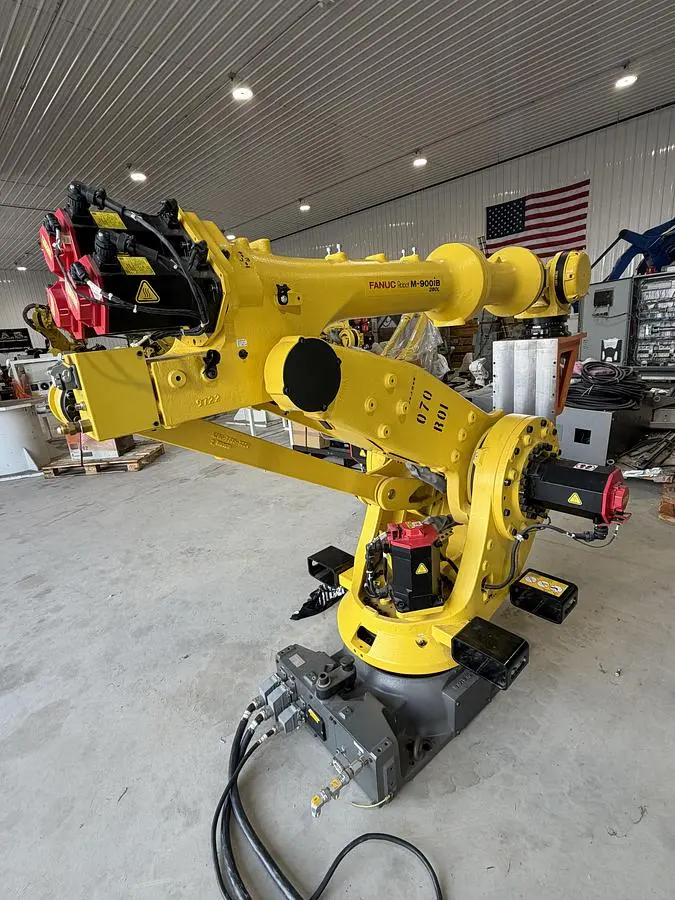

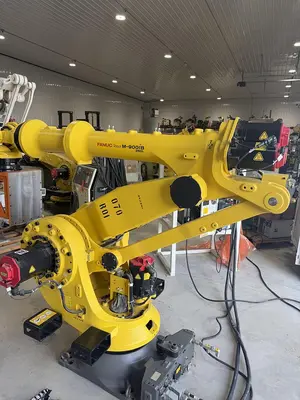

USED 2019 FANUC M-900IB/280L

This used FANUC M-900iB/280L (2019) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller, cables, and teach pendant. This robot was lightly used and only has 3,200 Servo on Hours. Check out the video! The video begins one axis
at a time programmed with joint fine motion to demonstrate all 6 individual axes. Then, we do a few linear moves in the tool
frame orientation to showcase it's impressive working envelope.

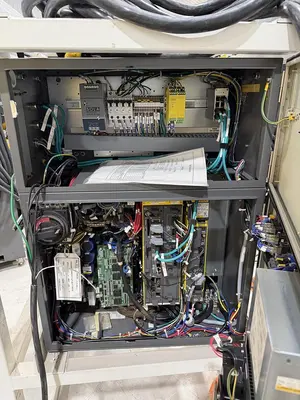

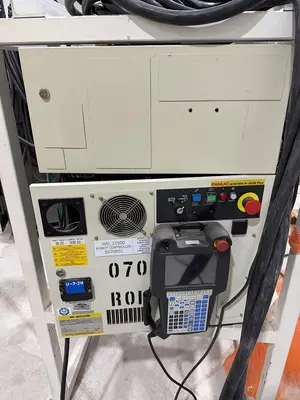

1-USED FANUC M-900iB/280L ROBOT WITH FANUC R-30iB PLUS CONTROLLER, TEACH PENDANT, AND CABLES.
DATE OF MFG. 2019

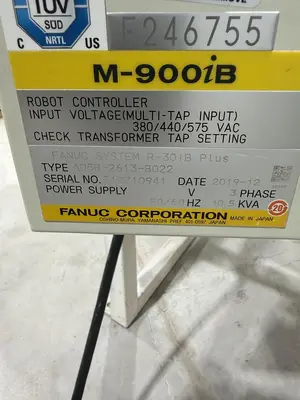

SERIAL NUMBER: F246755
STK#105480
SERVO ON HOURS: 3,200
================================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The Fanuc M-900iB/280L is the revamped and improved version of the Fanuc M-900iA/260L. It features an impressive 280kg maximum payload rating combined with an extended 3,103mm reach. The robot runs on the Fanuc R30iB/R30iB Plus A cabinet or the Fanuc R30iB/R30iB Plus B cabinet. Applications include Spot Welding Robots, Dispensing Robots, Machine Loading Robots, Machine Tending Robots, Part Transfer Robots, Assembly Robots, Coating Robots and Material Removal Robots. This robot has an impressive working envelope, and does not have a counter balance, it utilizes a link structure instead.

Robot Specifications:

Axes: 6

Payload: 280kg

H-Reach: 3103mm

Repeatability: ±0.3mm

Robot Mass: 1600kg

Structure: Articulated

Mounting: Floor, Inverted

Robot Motion Speed:

J1 110 °/s (1.92 rad/s)

J2 105 °/s (1.83 rad/s)

J3 100 °/s (1.75 rad/s)

J4 125 °/s (2.18 rad/s)

J5 125 °/s (2.18 rad/s)

J6 205 °/s (3.58 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±151°

J3 ±224°

J4 ±720°

J5 ±250°

J6 ±720°

Applications:

Spot Welding Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Part Transfer Robots

Assembly Robots

Coating Robots

Material Removal Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
