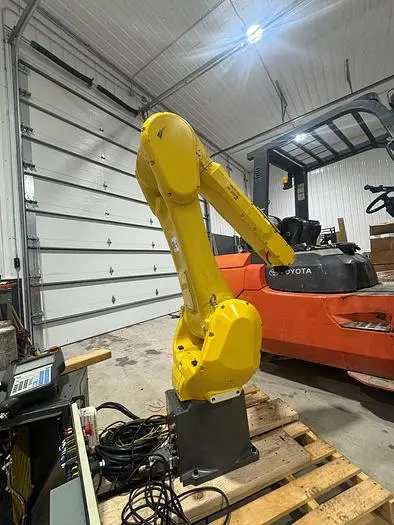

This used FANUC M-20iB/25 (2018) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller and 6-axis configuration.

1-USED FANUC M-20iB/25 6 AXIS ROBOT WITH R-30iB PLUS CONTROLLER

LIKE NEW 3 MECHANICAL MOVE HOURS ON UNIT

SN F223127

DATE OF MFG. 04/2018

MECHANICAL UNIT PART NUMBER A05B-1226-B201

CONTROL UNIT PART NUMBER A05B-2611-B322

STK#105261

===========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

The FANUC M-20iB/25 a 25kg payload robot. The design is unique, combining a lightweight hollow upper arm and wrist, so you can neatly run cables thru the side of the arm. The construction of the arm is similar to a scaled up LR Mate series robot. The Fanuc M-20iB/25 runs on the R30iB or R30iB Plus controller. It is great for many applications. This robot can be ordered with internal air solenoids.

Robot Specifications:

Axes: 6

Payload: 25kg

H-Reach: 1853mm

Repeatability: ±0.05mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 205 °/s (3.58 rad/s)

J2 205 °/s (3.58 rad/s)

J3 260 °/s (4.54 rad/s)

J4 415 °/s (7.24 rad/s)

J5 415 °/s (7.24 rad/s)

J6 880 °/s (15.36 rad/s)

Robot Motion Range:

J1 +340° - 360°

J2 ±240°

J3 ±303°

J4 ±400°

J5 ±290°

J6 ±540°

Applications:

Material Handling Robots

Pick and Place Robots

Machine Tending Robots

Machine Loading Robots

Material Removal Robots

Deburring Robots

Waterjet Robots

EQUIPPED WITH:

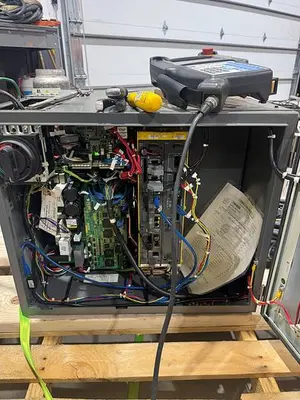

FANUC R-30iB PLUS ROBOT CONTROLLER

FANUC ROBOT CONNECTION CABLES

FANUC COLOR iPENDANT TEACH PENDANT

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
