USED 2021 FANUC FANUC M-20ID/35

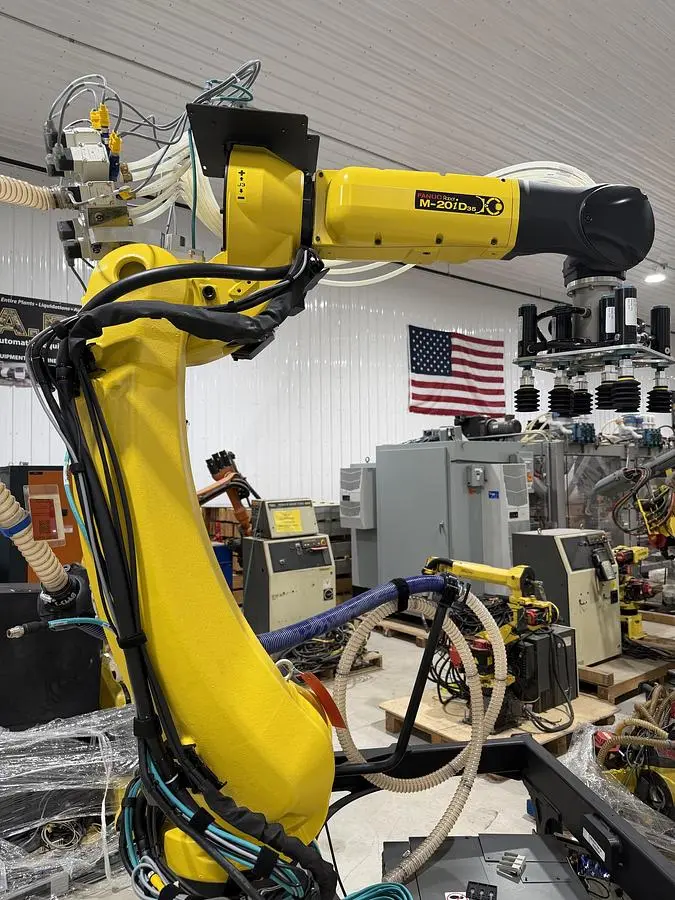

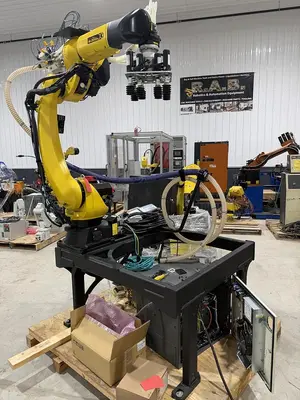

This un-used FANUC M-20iD/35 (2021) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller,teach pendant, cables, a riser, bulkhead ethernet cables, and Asi cable.

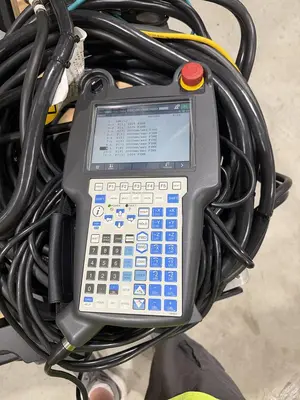

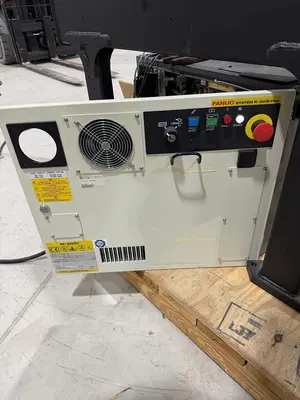

1-NEVER USED FANUC M-20iD/35 ROBOT WITH R-30iB PLUS CONTROLLER,

TEACH PENDANT, RISER, AND CABLES.

HOURS: POWER ON: 3.8 MECH UNIT TIME: 2.1

MECHANICAL ARM TYPE A05B-1228-B402

SERIAL NUMBER: F265752

DATE OF MFG. 2022

STK#105479

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Payload: 35KG

Repeatability: +/- 0.03 mm

Mechanical unit weight: 250 kg

Reach: 1831 mm

Motion Ranges:

J1: 370° or 340°

J2: 260°

J3: 458°

J4: 400°

J5: 360°

J6: 900°

Maximum Axis Speeds:

J1: 180 °/s

J2: 180 °/s

J3: 200 °/s

J4: 350 °/s

J5: 350 °/s

J6: 400 °/s

With a payload of 35 kg, this robot is designed for handling large parts of materials. Equipped with outstanding axis speeds and best-in-class accuracy, this robot is suitable for a wide range of applications. M-20iD series robots offer high flexibility for use in wrist-load applications up to 35 kg. They ensure high speeds for handling, pick & place and machine servicing operations.
