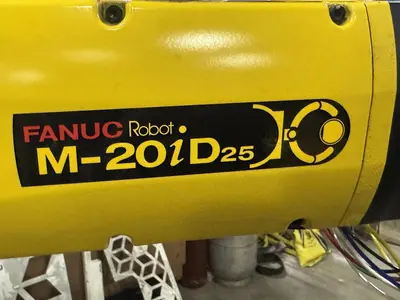

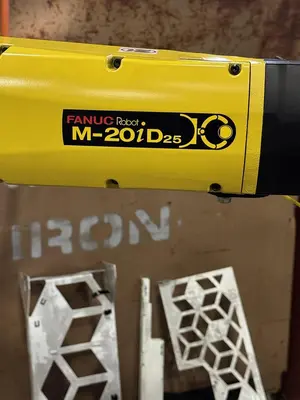

USED 2021 FANUC M-20ID/25

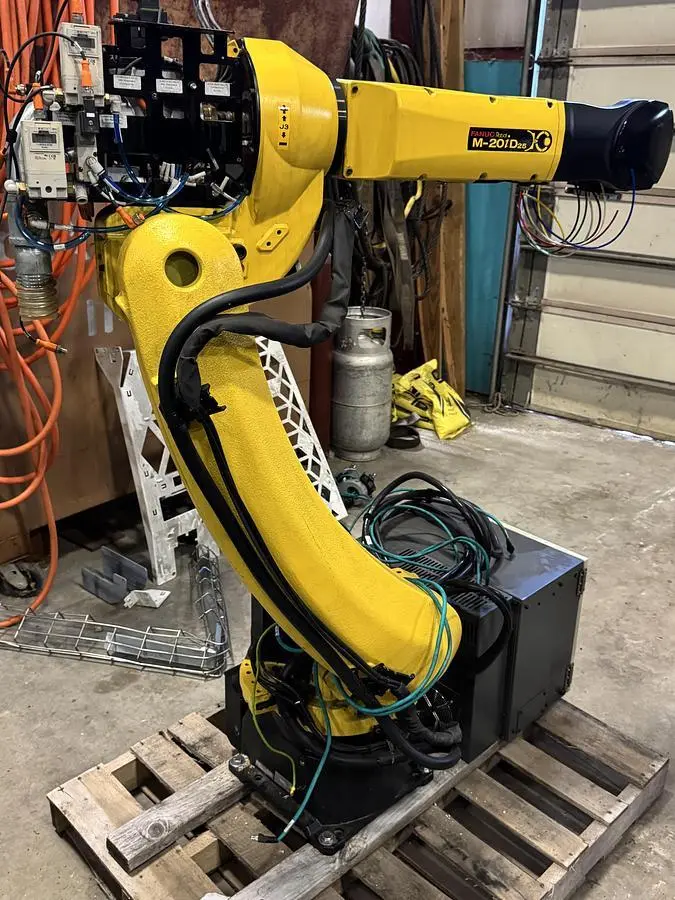

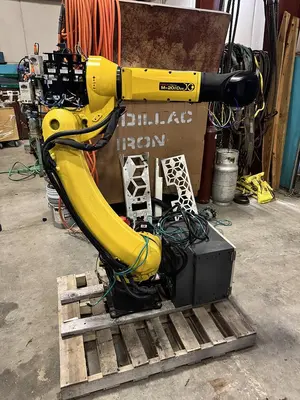

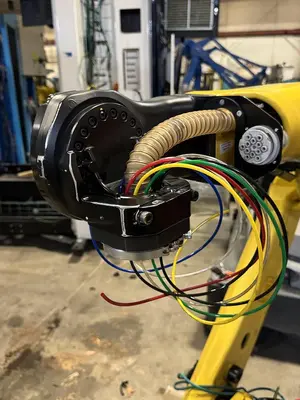

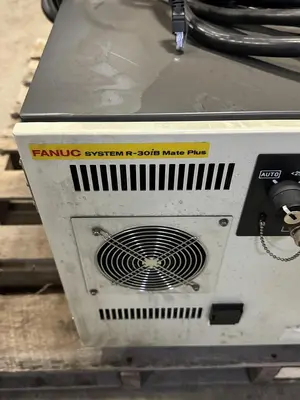

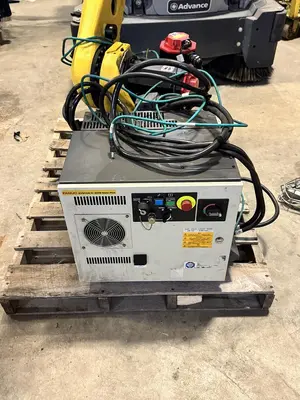

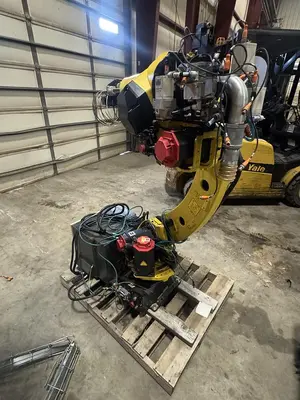

THE 2021 FANUC M-20ID/25 IS A SIX-AXIS ARTICULATED ROBOT FEATURING A 25 KG PAYLOAD CAPACITY AND AN 1,831 MM REACH. IT PROVIDES A REPEATABILITY OF ± 0.02 MM AND HAS A ROBOT MASS OF 250 KG. DESIGNED FOR FLOOR, INVERTED, OR ANGLE MOUNTING, THE UNIT IS EQUIPPED WITH A FANUC R-30IB PLUS MATE CONTROL, A TEACH PENDANT, AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE J1 AND J2 AT 210°/S, J3 AT 265°/S, J4 AND J5 AT 420°/S, AND J6 AT 700°/S. THE MOTION RANGE FOR THE AXES IS J1 ±340°, J2 ±260°, J3 ±458°, J4 ±400°, J5 ±360°, AND J6 ±900°. THE ROBOT FEATURES A COMPACT ARM AND WRIST WITH INTERNAL CABLE ROUTING TO PREVENT SNAGGING. TECHNICAL APPLICATIONS INCLUDE ASSEMBLY, LOAD/TRANSFER, DISPENSING, MATERIAL REMOVAL, MATERIAL HANDLING, AND PALLETIZING.
