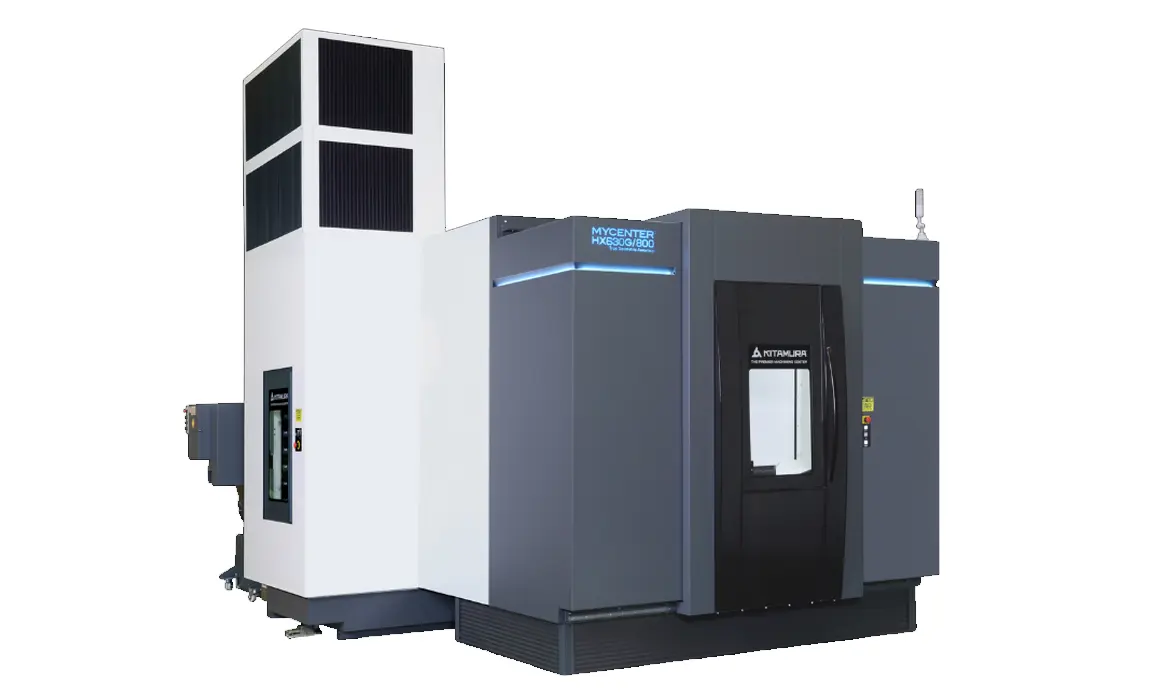

NEW KITAMURA MYCENTER HX630G/800-50

Table Size: 24.8" x 24.8"
Travel (X, Y, Z): 43.3" x 36.2" x 41.3"
Spindle Taper: NST No. 50
Spindle Speed: 20,000
Tool Storage Capacity: 50 Pcs. - 62, 100, 150, 200, 300 Tools Optional
Tool Change Time (T-T/C-C): 1.3 Sec. /3.8 Sec. Minimum
Rapid Feed (X,Y,Z): 60m/min (2,362ipm)
Rapid Feed (B): 12,000deg./min. (33.3rpm)
Power Requirement: 65KVA, 200v AC, 3 Phase
Solid Box Ways/Contact Surfaces are Extensively Hand Scraped
Patented Twin Ballscrew/Twin Servo Motor Driven in X and Y Axes
High Speed, Direct Drive Full 4th Axis Rotary Table
Expandable 2-Station Rotating Pallet System
12,000min, 4-Step Gear Driven, Dual Contact Spindle
Ballscrew Cooling System
Heidenhain Linear Scale Feedback - Fine Pitch, High Resolution Ballscrews
World's Fastest Rapid Feed Rates - 60m/min (2362ipm)/Solid Box Ways
Overhead Shower Coolant
Double Decker Style Chip Conveyor with Rolling Filter
15 bar (220psi) Coolant Thru the Spindle
62-Tool Expandable Fixed Pot ATC
3-Step Cycle Finish Lamp
Auto Power Off
Internal Chip Augers
Tool Monitor/Adaptive Control
Maintenance Support Function
4 Axes Simultaneous Control - Expandable to 5 axes in the field
67 million Pulse Encoder Feedback System
Manual Pulse Generator, Separate
Anywhere-Remote (E-Mail Status Updates)
SSS (Super Smooth Surface) Control
Up to 8190 Block Look-Ahead
Up to 270m/min Feed with 1 mm/block, 4,500 Blocks/sec
1280 Meters Memory
Data Server 32GB
USB Memory Interface

Table Size: 24.8 in.
Magazine: 50
Spindle RPM: 20,000
Spindle Taper: NST 50
Spindle HP: 54
Rapids(X): 2362
Rapids(Y): 2362
Rapids(Z): 2362
Travel(X): 43.3
Travel(Y): 36.2
Travel(Z): 41.3
