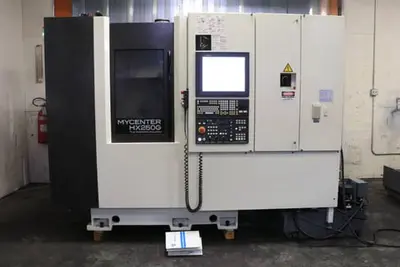

KITAMURA MYCENTER HX250G – 2013
Overview
KITAMURA MYCENTER HX250G CNC HORIZONTAL MACHINING CENTER
Specs
X-AXIS TRAVEL ………………….. 12″
Y-AXIS TRAVEL ………………….. 12″
Z-AXIS TRAVEL ………………….. 13″
SPINDLE POWER ………………….. 15 HP
SPINDLE SPEED ………………….. 15,000 RPM
TOOL POSITIONS ………………… 40
SPINDLE TAPER ………………….. BT-30
PALLET DIMENSIONS ………………. 10″ X 10″
NUMBER OF PROGRAMMABLE AXES ……… 4
MAXIMUM WORKPIECE DIAMETER ………. 13.8″
MAXIMUM WORKPIECE HEIGHT ………… 15.8″
RAPID FEED RATES X,Y,Z ………….. 2,362 IPM
CUTTING FEED RATE X,Y,Z …………. 2362 IPM
RAPID FEED (B-AXIS) …………….. 33.3 RPM
NUMBER OF PALLETS ………………. 2
APC CHANGE TIME ………………… 8 SECONDS
REQUIRED FLOOR SPACE ………. 111.5″ X 116.1″ X 89.9″ H
APPROXOMATE MACHINE WEIGHT ………. 12,000 LBS
Equipped With
KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL
FULL 4TH AXIS
COOLANT THROUGH THE SPINDLE 220 PSI
CHIP CONVEYOR
