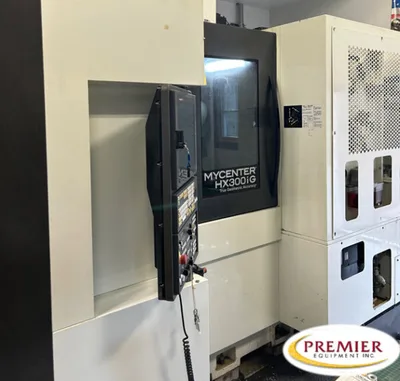

Kitamura Mycenter HX-300iG – 2017

Kitamura Mycenter HX300iG CNC HMC
Table

Size: 12.0” x 12.0”

Table Indexing: .001 Degree (4th Axis)

Maximum Table Load: 550 lbs

Max. Work piece Dia.: 19.7″

Max. Work piece Height: 29.3″

Travels

X-Axis Travel: 18.1″

Y-Axis Travel: 20.0″

Z-Axis Travel: 22.0″

B-Axis Travel: 0 to 360 Degrees

Spindle

Spindle Taper: #40

Spindle Speed: 40 to 15,000 RPM

Spindle Motor: 30 HP AC/5 Min. / 20HP AC/10 Min. / 15HP AC/30 Min.

APC

Number of Pallets: 2

ATC

Tool Storage Capacity: 50 ATC

Tool Holder Style: CAT40
Arumatik-Mi Control

Automatic Pallet Changer (2-Station) – (Rotary-type)

Chip Conveyor

15k spindle
