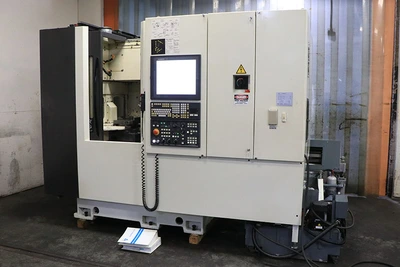

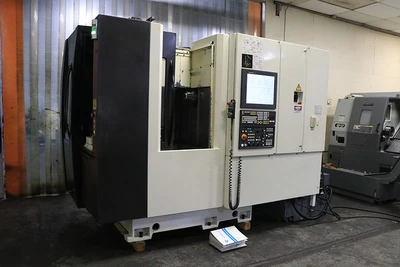

USED 2013 Kitamura HX-250G

12" X Axis 12" Y Axis Kitamura HX-250G HORZ MACHINING CENTER, ARUMATIK-MI 4-Axis CNC Cntrl,15,000 RPM,BT30,40ATC

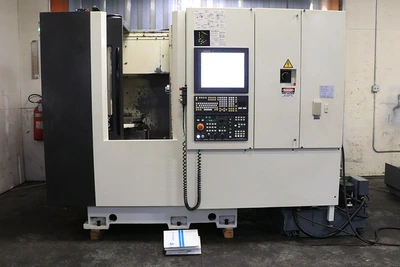

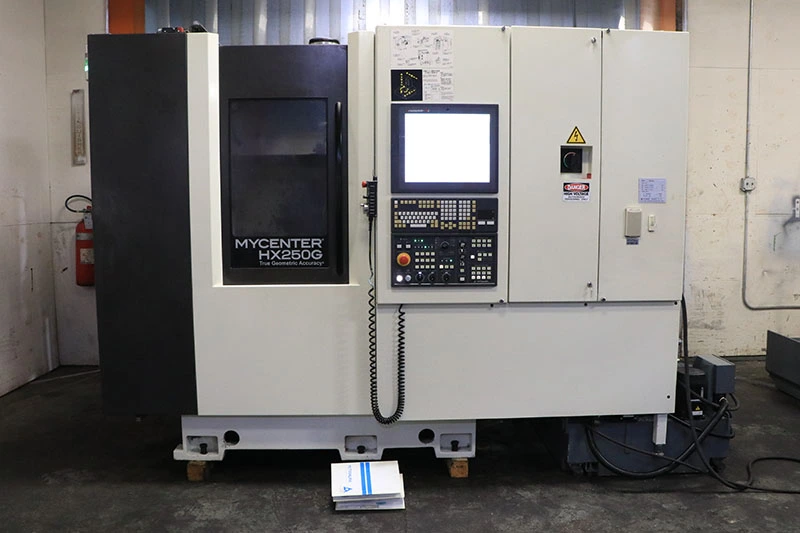

KITAMURA CNC HORIZONTAL MACHINING CENTER,

MODEL: MYCENTER-HX250G, NEW: 2013

SPECIFICATIONS:

X-AXIS TRAVEL ....................... 12"

Y-AXIS TRAVEL ....................... 12"

Z-AXIS TRAVEL ....................... 13"

SPINDLE POWER ....................... 15 HP

SPINDLE SPEED ....................... 15,000 RPM

TOOL POSITIONS  ..................... 40

SPINDLE TAPER ....................... BT-30

PALLET DIMENSIONS ................... 10" X 10"

NUMBER OF PROGRAMMABLE AXES ......... 4

MAXIMUM WORKPIECE DIAMETER .......... 13.8"

MAXIMUM WORKPIECE HEIGHT ............ 15.8"

RAPID FEED RATES X,Y,Z .............. 2,362 IPM

CUTTING FEED RATE X,Y,Z ............. 2362 IPM

RAPID FEED (B-AXIS) ................. 33.3 RPM

NUMBER OF PALLETS ................... 2

APC CHANGE TIME ..................... 8 SECONDS

REQUIRED FLOOR SPACE .......... 111.5" X 116.1" X 89.9" H

APPROXOMATE MACHINE WEIGHT .......... 12,000 LBS

EQUIPPED WITH:

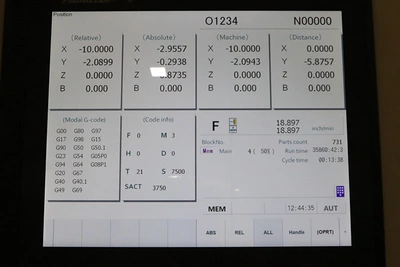

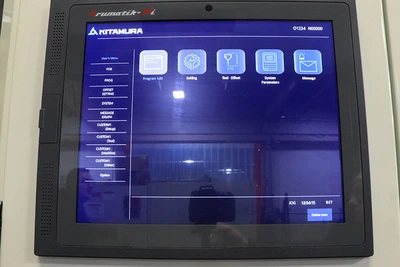

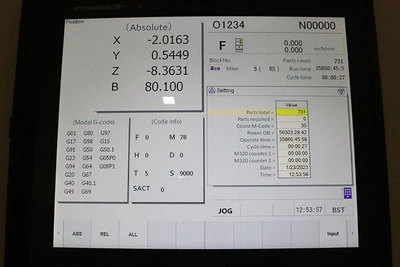

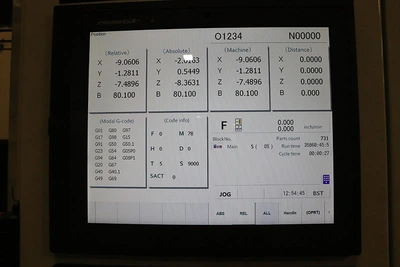

KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL

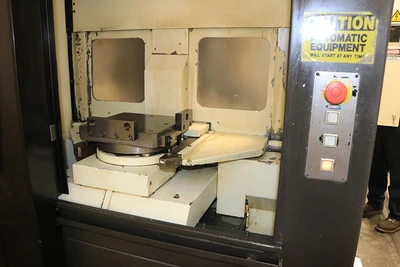

FULL 4TH AXIS

COOLANT THROUGH THE SPINDLE 220 PSI

CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Sales at 973-497-7510
