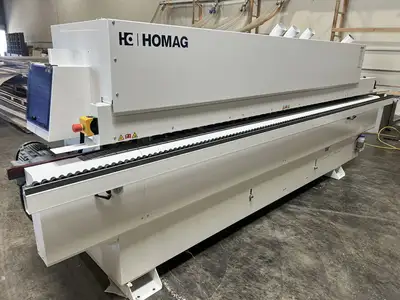

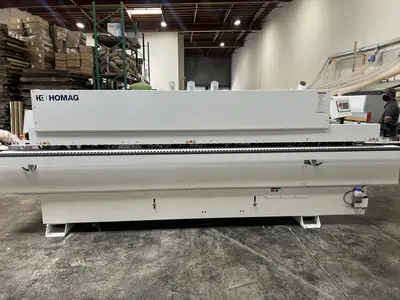

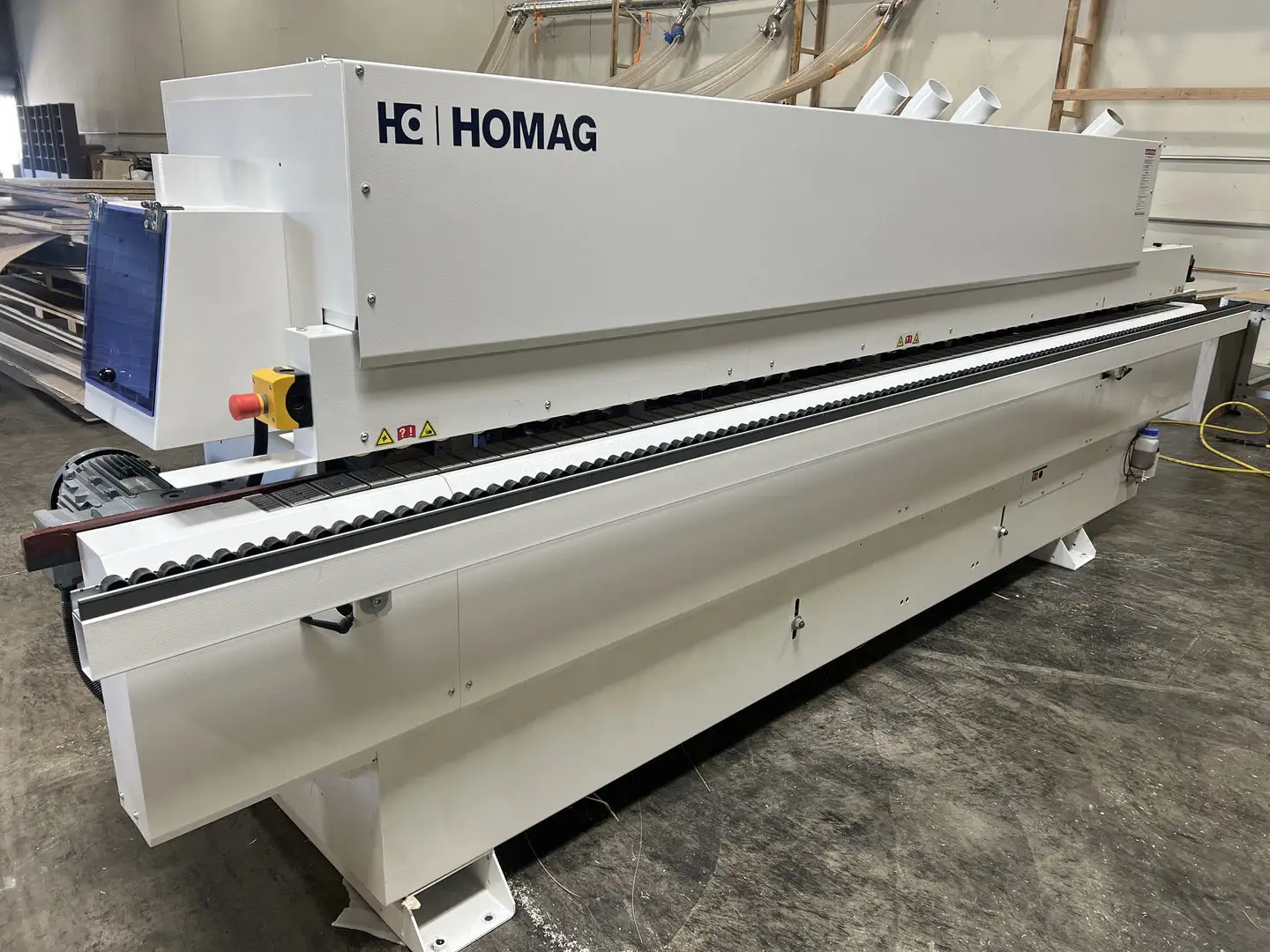

USED 2024 HOMAG EDGETEQ S-240

PUR Glue Compatible: Yes

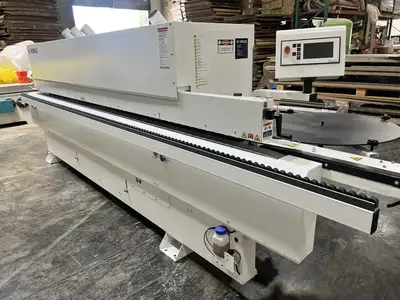

Control System: easyTouch control
Phase: 3-phase
**Includes 1 extra glue bucket
Video
HOMAG EDGETEQ S-240 FC AUTO Edgebander PDF

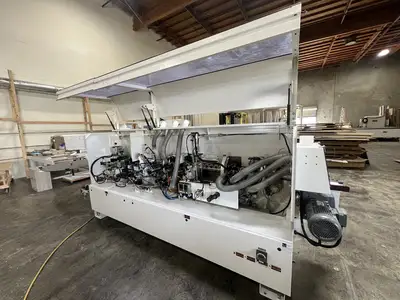

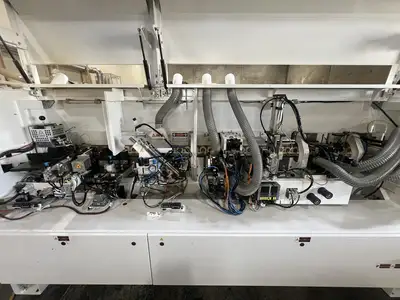

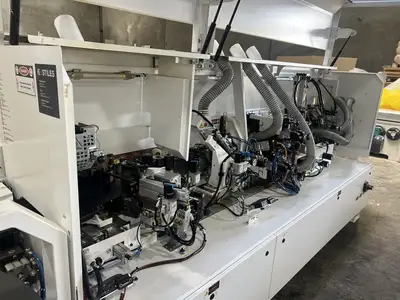

Stations:
Pre-Milling Unit
pre-trimming of the workpiece edge prior to gluing
two (2) motors each 12,000 rpm
one (1) motor clockwise rotation, one (1) motor counter-clockwise rotation
vertical spindle adjustment via digital settings
horizontal positioning via electro-pneumatic control
dust extraction hood included with 120 mm diameter outlet
diamond insert cutter heads, 100 mm diameter

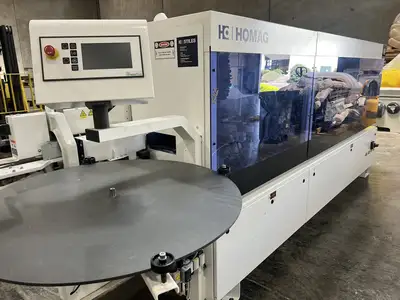

Automatic Magazine for Strip and Coil Feeding
large coil table (800 mm diameter) with built-in rollers to allow for 3 mm PVC coils
edge strip capacity: 4 - 6 mm
direction of glue rollers reversible and glue roller section retractable
one (1) large driven pressure roller with pneumatic pressure control
two (2) secondary rollers, all with controlled side pressure
manual setting of pressure zone via digital mechanical counter
strengthened pre-cutter for cutting thick PVC edges from the coil; maximum 3 x 45 mm; precutting system equipped with air volume reservoir for on-demand activation required for short workpieces

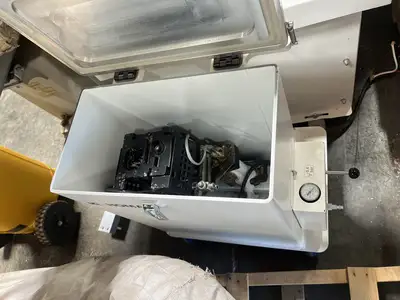

Hot Melt Gluing Unit
quick purge feature to remove the glue and replace with different color or change to PUR glue
Two level system: 350 g with 8-minute heat up time, 800 g with 15 minute heat up time.
infrared radiant glue heat zone control for optimum gluing strength. Automatic temperature reduction if not run within 15 minutes. This feature reduces the temperature automatically by 50°C.
Double-Motor End Trimming Unit
straight/chamfer end trim unit equipped with two (2) 0.18 kW 12,000 rpm motors
electronic motor brakes
end trim unit utilizes drawing cut system for reduced blade projection when working on thick workpieces
tooling also included
program-controlled indexing from straight to bevel end trimming
Straight/Radius Top & Bottom Trimmers
equipped with two (2) 0.27 kW 12,000 rpm trimming motors
electronic motor brakes
program-controlled positioning when processing thin edge, thick PVC and solid wood edges; positioning done pneumatically via the EasyTouch controller
horizontal and vertical tracing with lateral location indexing via digital "Quickset" system
each trimming motor is equipped with one dust hood and dust extraction hose
equipped with two (2) DFC combination straight / radius cutter heads, including four (4) carbide knife inserts with flush trimming possible up to 6 mm edge thickness
nested top copy system
Single-Motor Corner Rounding Unit
corner rounding of thick PVC edging material
includes diamond tooling
Quick Change Profile Scraping Unit
scraping of roughly trimmed thick PVC edges in order to remove the cutter marks
vertical and horizontal tracing wheels
radius knives included (quickly changeable to different radii)
program-controlled indexing
one (1) set of tooling standard
one (1) set of tooling with nested top and bottom copy system
Edging Scraper
Quick Change
Glue Scraper
flat knives remove any unwanted material from the trimmed / scraped edge
Buffing Unit
two (2) 2,800 rpm buffing motors (one top, one bottom) for polishing of longitudinal edges
inclinable vertically and horizontally
two (2) buffing wheels included
Features:

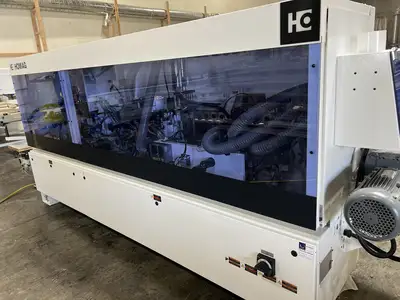

Sound Cover
Machine length: 4740 mm // 186.6 in.
Feed speed: 11 m/min // 36 ft./min
Workpiece width (in case of thickness 8 - 22 mm): 70 mm // 2.8 in.
Workpiece thickness: 8 - 60 mm // 0.3 - 2.4 in.
Edge thickness coils: 0.3 - 3 mm // 0.012 - 0.12 in.
Edge thickness strips / solid strips: 0.4 - 6 mm // 0.016 - 0.24 in.

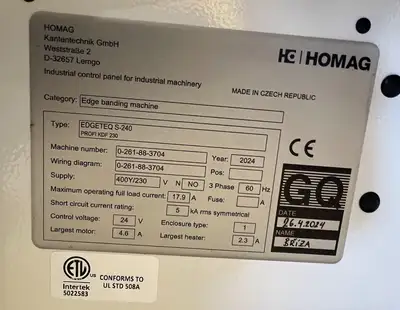

Voltage: 400Y / 230 volts
Phase: 3
Frequency: 60 Hz
Full load current: 17.9 amps
Short circuit current rating: 5 kA rms symmetrical
Control voltage: 24 volts
Largest motor: 4.6 amps
Enclosure type: 1
Largest heater: 2.3 amps
