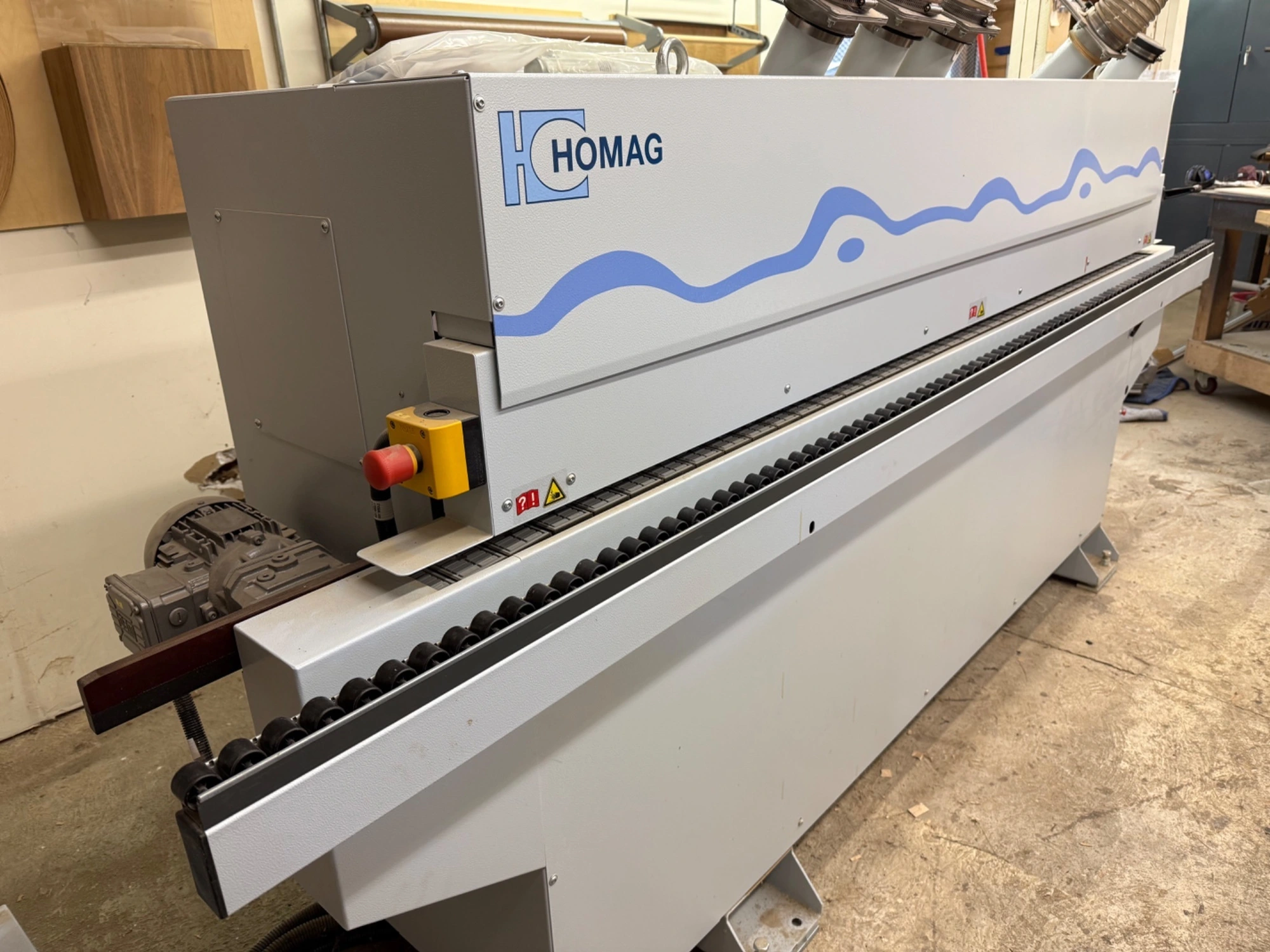

USED 2018 HOMAG KDN 110 Ambition 1110
Overview
Description
Like new, Less Than 700 hours !
Specifications
Homag KDN 110 Ambition 1110 Edge Banding Machine (2018)
Technical Data
Edge Thickness Capacity:
0.4 – 3mm (1/8″)
Panel Thickness Capacity:
8 – 40mm (0.3″ – 1.57″)
Minimum Panel Width:
60mm (2.3″)
Minimum Panel Length:
140mm (5.5″)
length of machine 144"
processing height 39"
edge thickness 0,4 - 3 mm
workpiece thickness 8 - 40 mm
feed speed 8m/min
pneumatics 6 bar
weight 1543 lbs
Equipped With
Upgraded from standard EVA to PUR adhesive
Control System EC 10+
Brandt/Homag Nesting Paket optionally available
Equipment
Gluing unit and roller magazine for a save transferring of the material. Depending on the likes of the client the magazine can be suitable for processing of standard lengths.
Snipping unit with two engines
multifunctional flush milling Aggregate. It`s easy to be controlled because of combinations of trimming units. It can be changed to three different settings: flush milling, radius, chamfer milling stations
2 free spots in postproduction for available aggregates: profile scrapper unit, glue joint scrapping unit and buffing unit
Dedicated single phase to 3 phase power
