USED 2023 HOMAG "EDGETEQ S-200"

Lot Closes:: 8/18/2026 11:05:00 AM PT

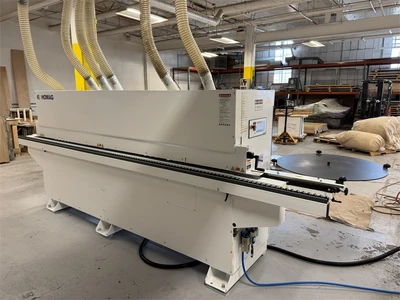

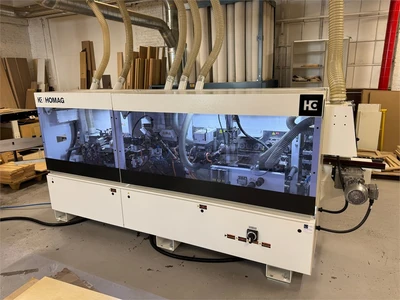

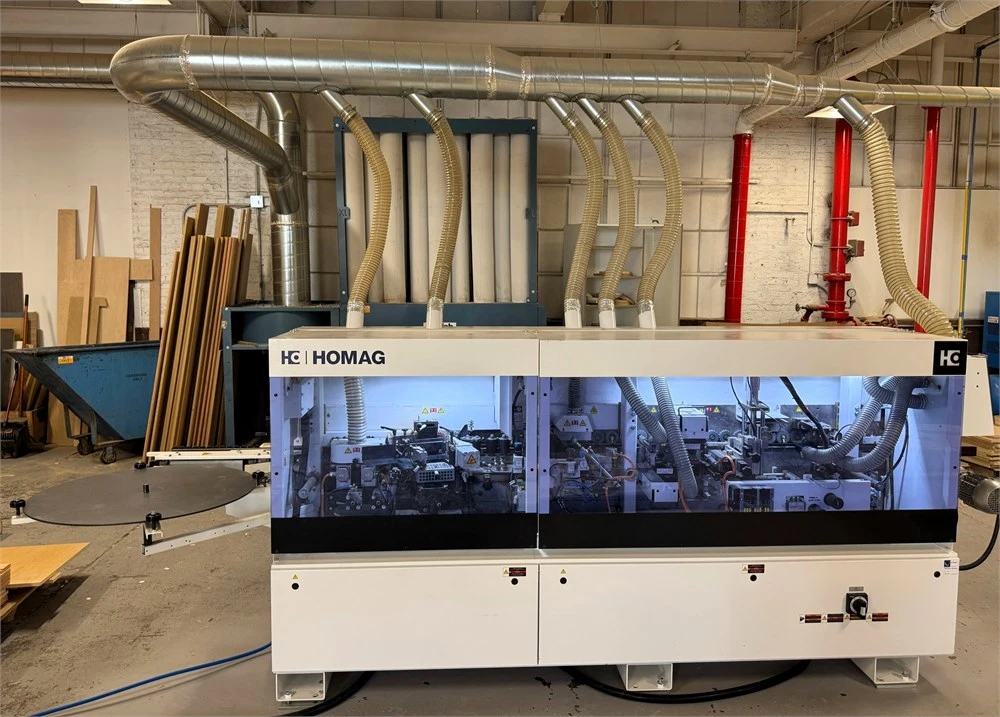

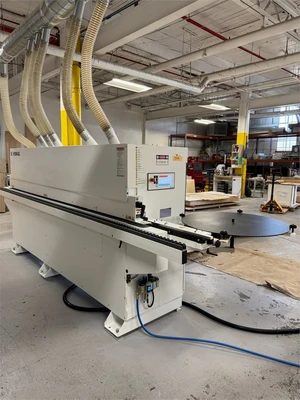

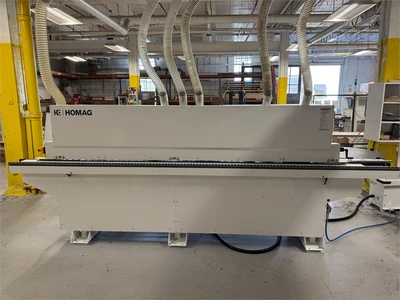

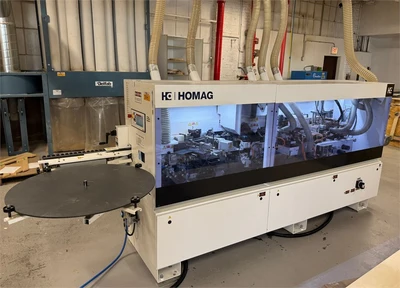

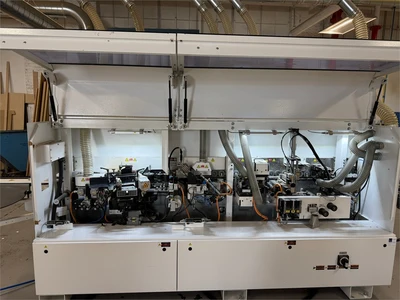

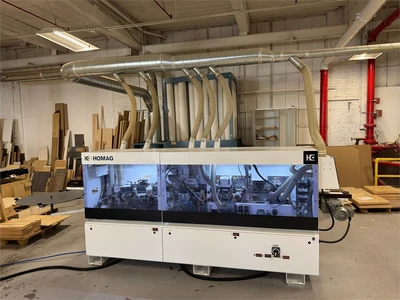

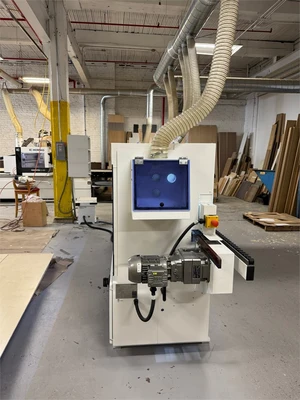

Homag "Edgeteq S-200" Edgebander - Pre-mill & Corner Rounding (2023)
See video of machine in operation
0.3 - 3 mm (0.016 - 0.11") Edge; 8 -60 mm (0.312 - 2.375") panel thickness; 160 mm (6.375") min. panel length; 70 mm (2-3/4") min. panel width.
Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges.
100 mm Dia.cutterheads.
Integrated heated glue roller.
Automatic Edge Magazine for: Strip & coil stock; up to3 mm PVC.
"Heavy-Duty" Guillotine.
"Quick-Change" glue pot & roller application unit.
Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled.
Feed Speed: 8 MPM. (26 FPM).

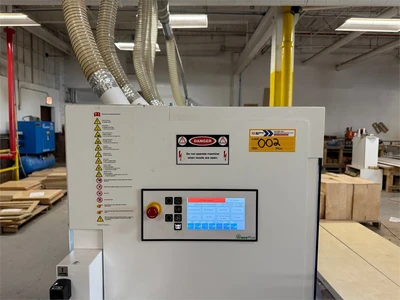

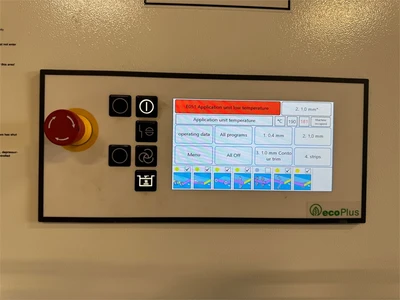

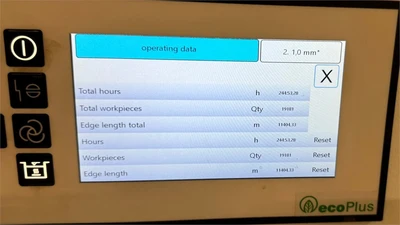

HOMAG "easyTouch"Operator Interface with: 7" Graphic color touch display & soft keypad; intuitive, user-oriented navigation.
(20) Storable programs guarantee flexibility when processing a wide variety of edge materials and changing customer requirements.
End Trimming: (2) Motors each @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from control panel 0° - 15°.
Flush/Bevel-Fine/Radius Trimming Unit. (2) Motors: Top/Bottom; 0.55 kW (3/4 HP) - 12,000 RPM; 0° - 25° with combination flush/radius/chamfer cutterheads.
Corner Rounding Unit. (1) Motor 0.35 kW (1/2 HP) - 12,000 RPM with: Automatic adjustment from control panel for: 1-Mil, 2-mil & 3-mil thickness.
Scraping, multi-profile(PVC) Top/Bottom with (2) profiles: (1) 1 mm, 2 mm, or 3 mm in place of (2) 2 mm positioning of vertical & horizontal copy wheels. PVC scrape collection box.
Board scraping station

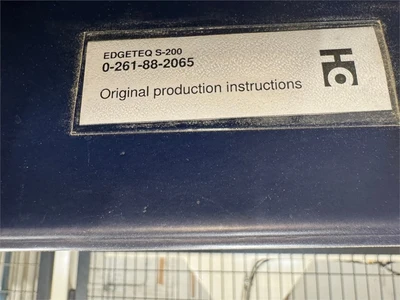

Motorized holddown pressure beam; padded sound enclosure, isolation transformer for multiple input voltages, used tooling, and Original factory machine documentation

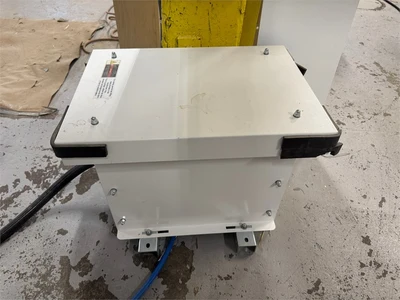

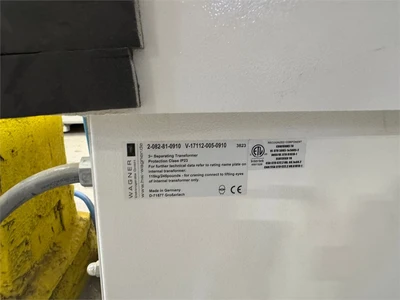

Multi-tap transformer included
