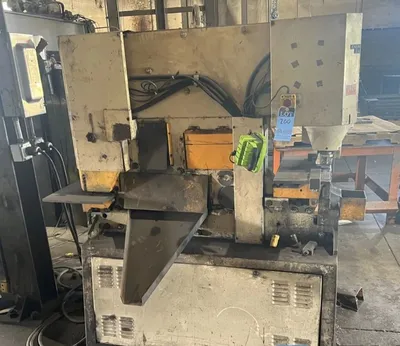

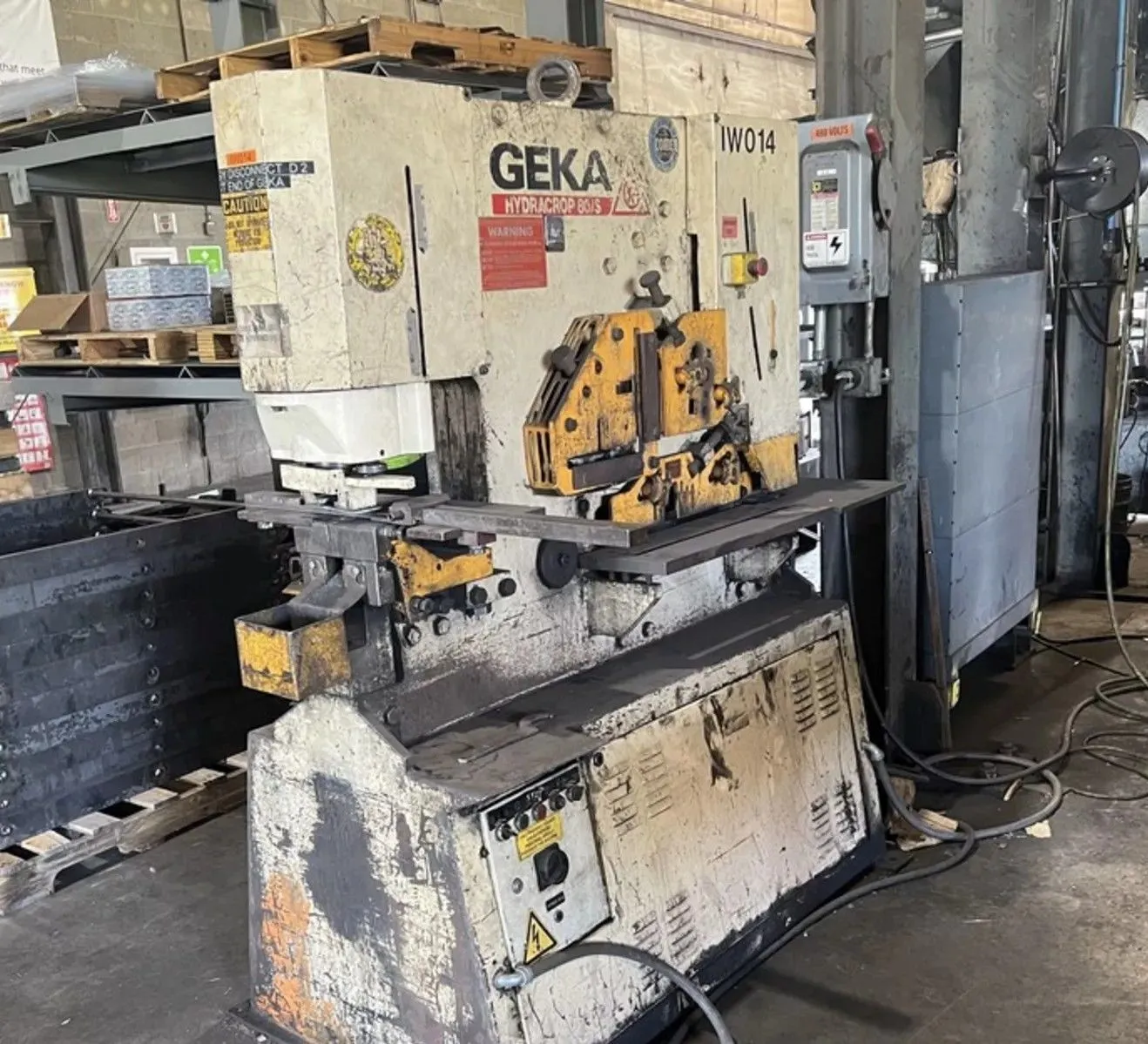

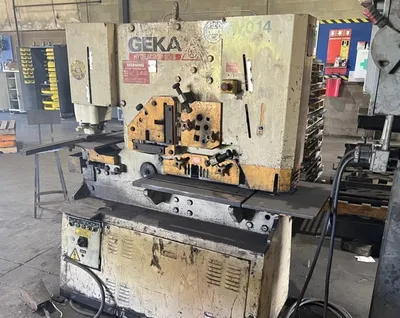

USED GEKA 80S

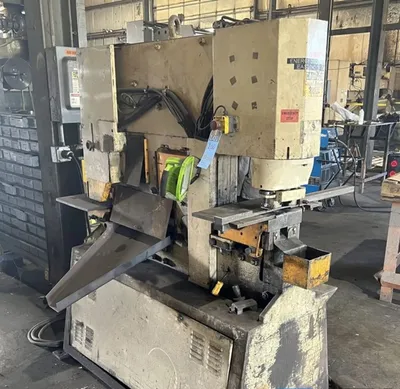

88 TON GEKA "HYDRACROP 80/S" DUAL-CYLINDER
HYDRAULIC IRONWORKER

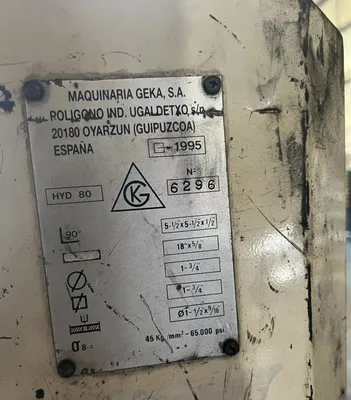

Serial No 6296, Model HYDRACROP-70-S

EQUIPPED WITH:

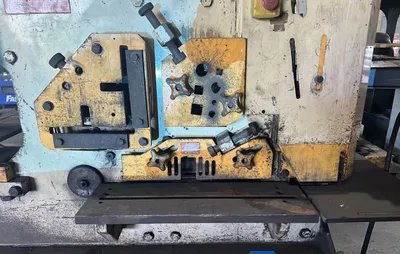

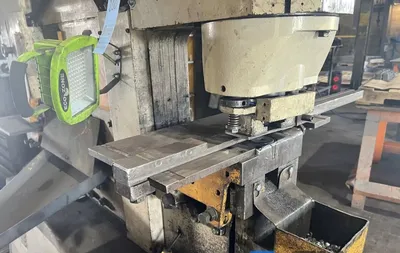

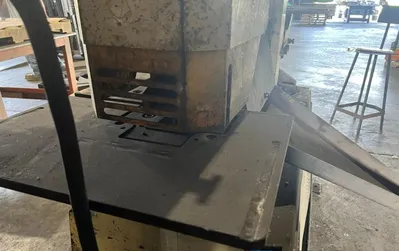

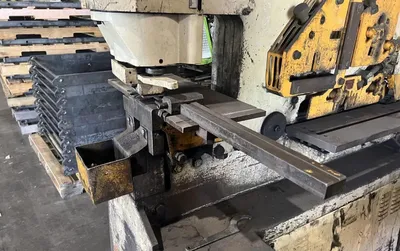

Plate Shear - Section & Bar Shear - Punch
Angle Shear - Notcher
Dual Cylinder Design

CATALOG SPECIFICATIONS:
Tonnage Capacity, Punch End 88 TON
Stroke Length, Adustable to 2-3/4"
Throat Depth 12"
Punching Capacity thru 9/16" Plate 1-1/2"
Plate Shear Cutting Length, Maximum 18-11/16"
Shearing Capacity, Flat Bars 18" x 5/8"
Shearing Capacity, Flat Bars 12" x 3/4"
Shearing Capacity, 90-Degree Angles 5-1/2" x 5-1/2" x 1/2"
Shearing Capacity, 45-Degree Angle 2-3/4" x 2-3/4" x 1/4”
Shearing Capacity, Round Bars 1-3/4"
Shearing Capacity, Square Bars 1-3/4"
Notching Capacity, Width 2"
Notching Capacity, Depth 3-1/2"
Notching Capacity, Thickness 4"
Strokes Per Minute 40 SPM
Motor Horsepower 12.5 HP
Overall Dimensions, L x W 84” x 47"
Overall Height 81"
Weight, Approximately 4575 LBS

F.O.B. ON WAY IN
