Geka Bendicrop 50 Single Cylinder Ironworker – NEW

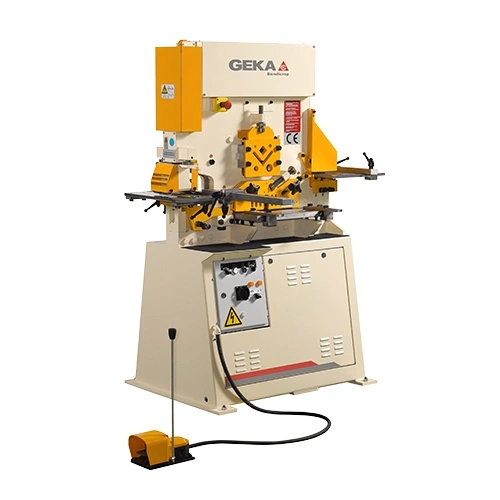

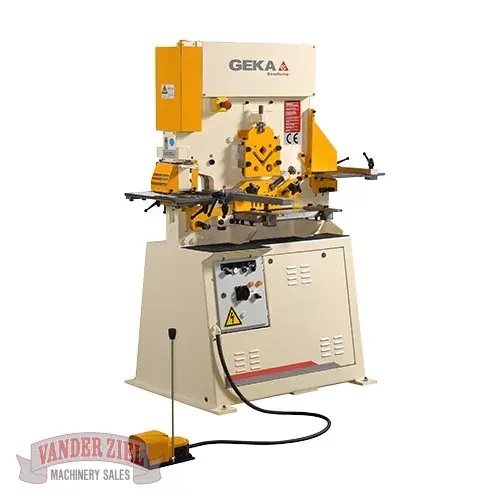

Bendicrop 50 Ironworker Machine
Bendicrop 50 hydraulic ironworker for sale from Geka, featuring a built-in bending station
The Bendicrop 50, part of Geka’s Bendicrop Series of hydraulic ironworking machines, features a single cylinder and six workstations. The six workstations include a built-in bending station that makes the Bendicrop machines unique in the market.
BENDICROP 50 FEATURES AND SPECIFICATIONS
FEATURES
BENDICROP 50
Punching Power
55 US Tons
Punching
Ø 1-1/16” x 1/2″
Shearing flat bars
14 x 3/8″@ 2º
14 x 1/2″@4º
Shear of angle section L at 90
3” x 3” x 5/16
Bending
4” x 3/8” with 2 “V” dies of
1-5/8” and 2-3/4” Openings
Rectangular Notching
Thickness 3/8”
Width of Notcher 1-9/16”
Depth of Cut 3/8”
Round and Square Bar Shearing
Ø1-3/8” Ø
1-3/16” Square
The manufacturer reserves the right to make modifications without prior notice.
All capacities based on a material resistance of 65,000 tensile.
Throat depth of punch is 6-7/8”.
Can also accept cutting of U profiles up to 3” x 4.1lb and other shapes of profiles in the Section
Shearing. Ask of more details on the sizes you may need to shear.
Also, the ability to install a Pipe/Tube Notcher, Triangular Notcher, or even a second Punching
Station place of the Rectangular Notcher.
Furthermore, it is fitted with a system to reduce deformation (twisting) when Shearing Fat Bars.
The manufacturer reserves the right to make modifications without prior notice.
All capacities based on a material resistance of 65,000 tensile.
Thanks to the blade holder’s vertical movement, the machine has the machine performs excellently in its six workstations:

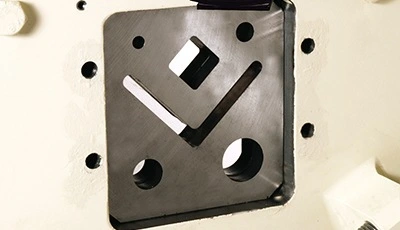

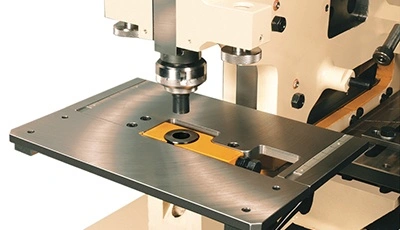

Punching station

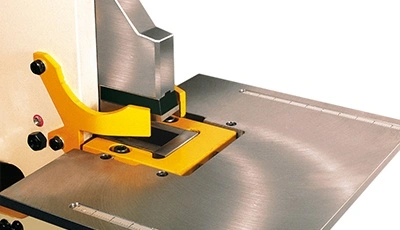

Notching station

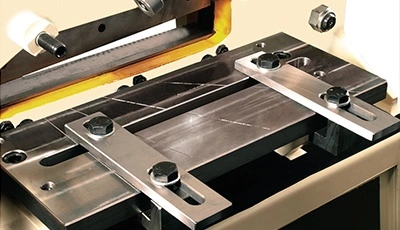

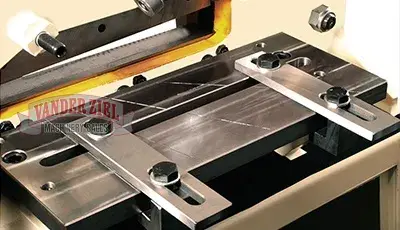

Flat bar shearing station
Angle cutting station
Round and square bar shearing station

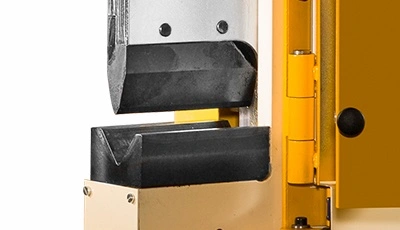

Integrated bending station
The machine also comes equipped with Geka’s anti-torsion system, which reduces deformation when shearing flat bars.
