USED THK HSR25R1SS(GK)

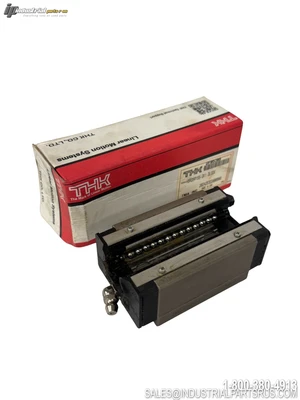

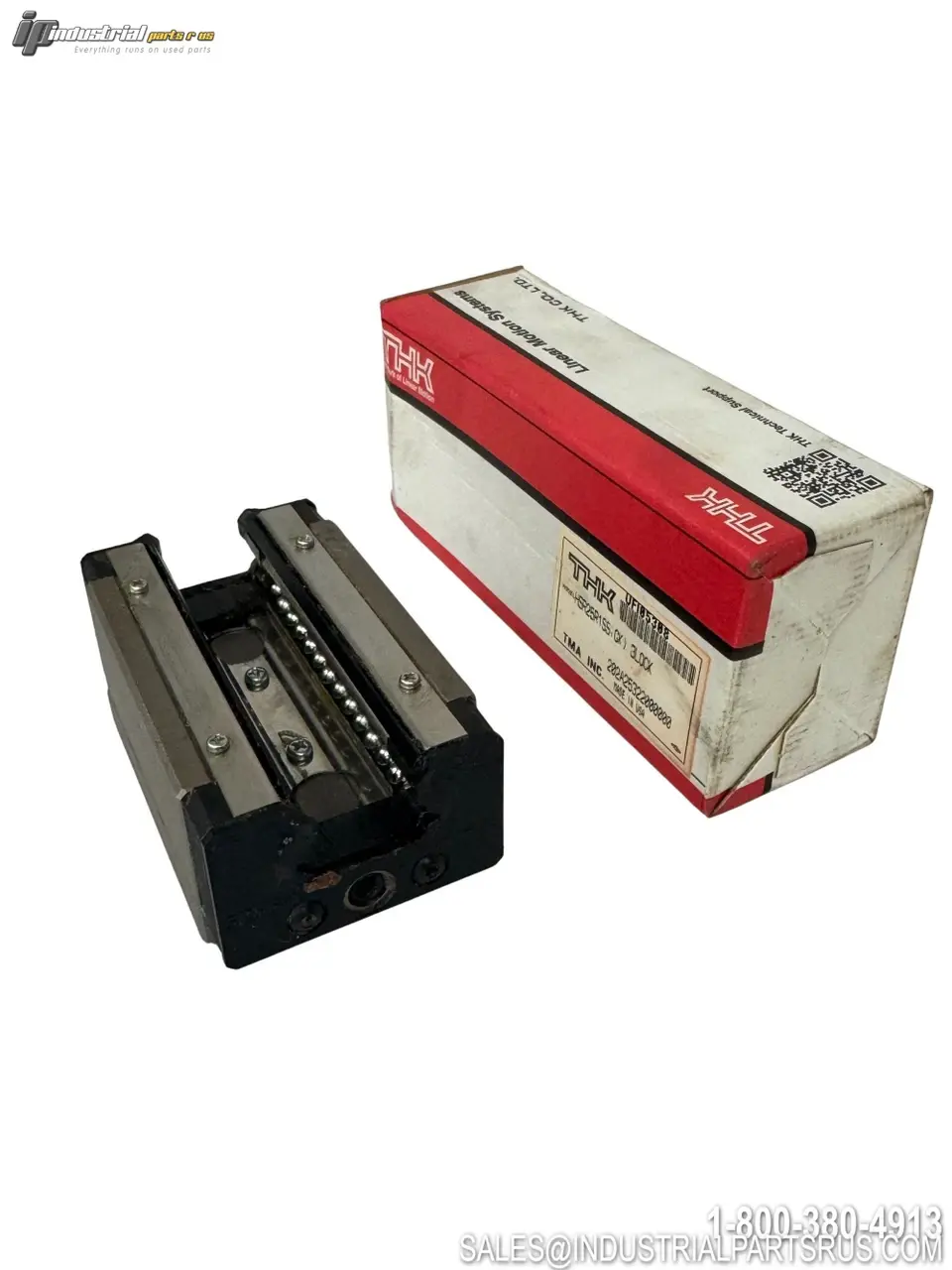

The THK HSR25R1SS(GK) is a precision linear guide block from THK's HSR-R series designed for heavy-duty applications requiring smooth linear motion. This narrow block design features four-row ball construction with 45° contact angles for uniform load distribution in all directions and low friction operation.
Specification
Value
Brand
THK
Model/Part Number
HSR25R1SS(GK)
Series
HSR-R
Block Type
Narrow Block
Overall Length
83.1 mm
Width
48 mm
Height
40 mm
Rail Width
23 mm
Nominal Rail Size
25 mm
Dynamic Load Capacity
19.9 kN
Basic Load Rating
27.6 kN
Mounting Holes
4 Through Holes (M6×8)
Seal Type
SS (End & Side Seals)
Weight
1.45 kg
Grease Nipple
B-M6F
Load Type
Heavy Load
Ball Rows
Four-row
Contact Angle
45°
Operating Temperature
-20 to +80°C
Material
Steel
Application
CNC Machine Tools, Automation
We warranty all items for 30 days from date of purchase.

SKU: AI1432
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: THK
Part Number: HSR25R1SS(GK)
Shelf: GS 2
Model: HSR25R1SS(GK)
MPN: HSR25R1SS(GK)
Type: Linear Guide
