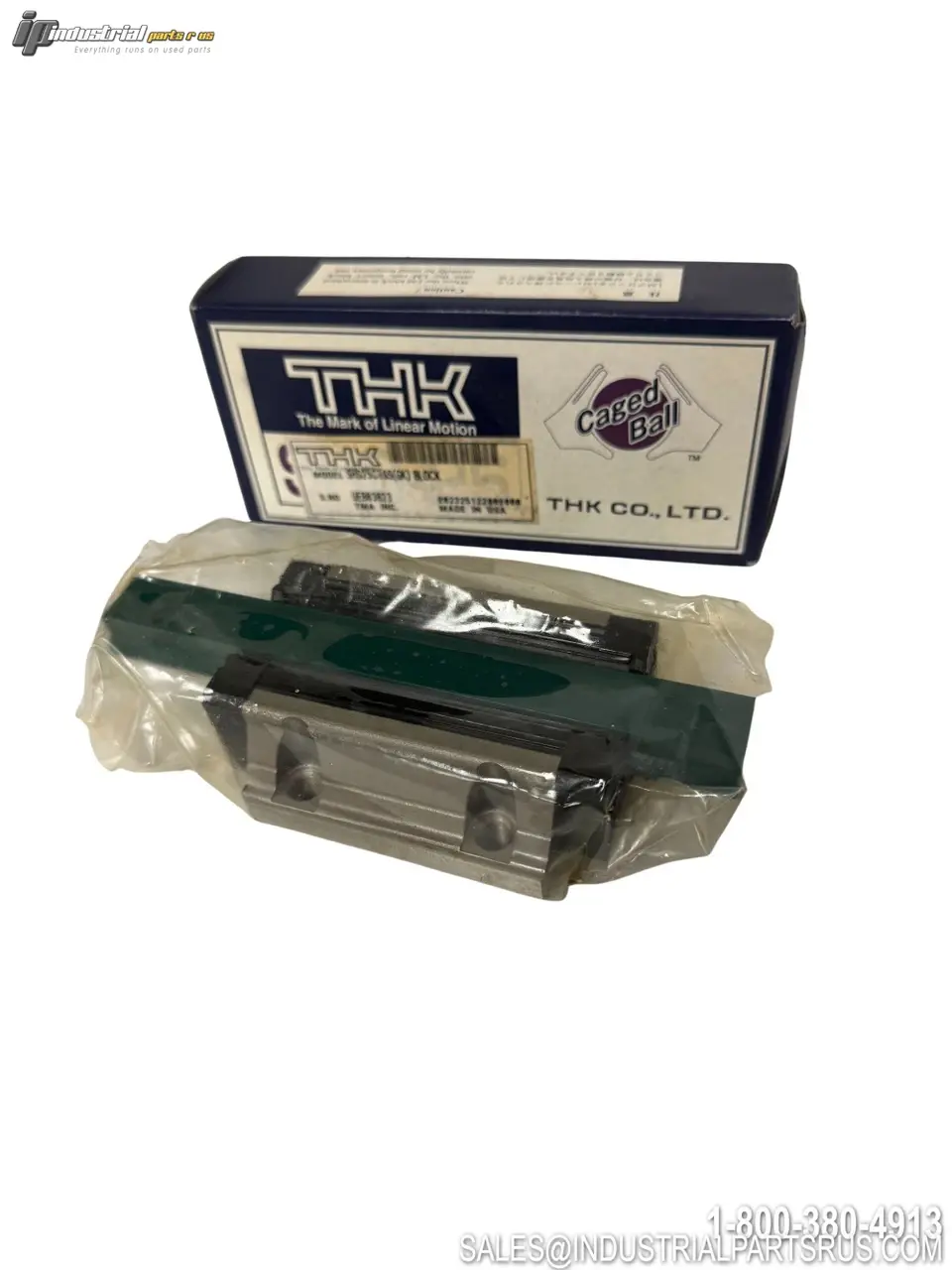

This is a Linear Guide Carriage SHS-C manufactured by THK with model number SHS25C1SS(GK). It features a caged ball design that provides high-speed operation, low noise levels, and extended service life. The carriage is designed for 23mm rail width with mounting from top or bottom.
Specification
Value
Brand
THK
Model/Part Number
SHS25C1SS(GK)
Series
SHS-C
Rail Width
23mm
Carriage Width
70mm
Carriage Length
92mm
Dynamic Load Rating
31.7kN
Static Load Rating
52.4kN
Weight
0.72kg
Design Type
Caged Ball
Mounting Type
Flanged Block
Seal Type
End Seal, Side Seal, Inner Seal
Contact Angle
45°
Block Type
C Type
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI1440
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: THK
Part Number: SHS25C1SS(GK)
Shelf: GS-2
Model: SHS25C1SS(GK)
MPN: SHS25C1SS(GK)
Type: Linear Guide
