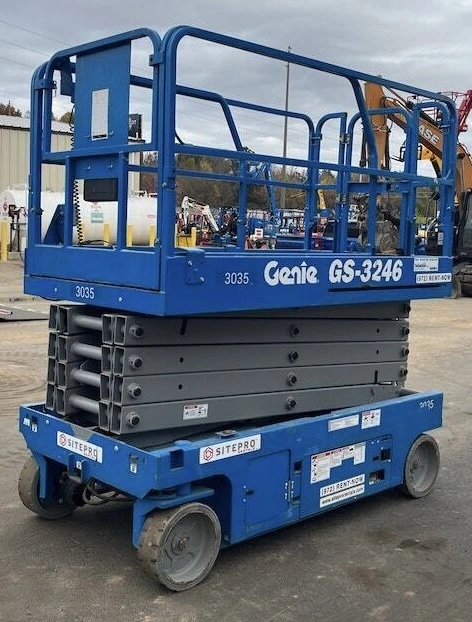

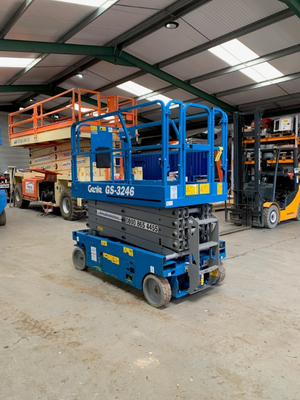

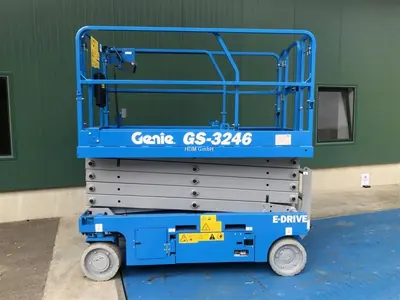

USED 2025 Genie GS3246
Overview
Description
Max Working Height (Indoor): 38 ft 1 in Max Platform Height: 32 ft 1 in Max Working Height (Outdoor): 28 ft Lift Capacity: 700 lbs Extension Deck Capacity: 250 lbs Dimensions Machine Width: 3 ft 10 in Machine Length (Stowed): 7 ft 9 in Platform Dimensions: 89 in × 45.3 in Extension Deck Length: 36 in Stowed Height (Rails Up): 8 ft 2 in Stowed Height (Rails Folded): 6 ft 1 in Wheelbase: 6 ft 1 in Ground Clearance: 5 in (0.9 in with pothole guards deployed) Performance Drive System: Dual front-wheel AC electric Drive Speed (Stowed): 2.0 mph Drive Speed (Raised): 0.5 mph Gradeability: 25% Raise Time: 53 sec Lower Time: 34 sec Turning Radius (Outside): 7 ft 6 in Weight & Loading Operating Weight: 5,218 lbs Max Tire Load: 2,227 lbs Floor Loading: 210 psf Contact Pressure: 146 psi Power System Battery: 24V DC, Four 6V Batteries (210 Ah) or Lithium-Ion (Optional) Hydraulic System Capacity: 4.5 gal
Specifications
| Weight | 5211.8 | 5211.8 |
|---|
Status: Available
Weight: 5211.8
Rental Rate: $1325
Rate Schedule: DAY: $199
Rate Schedule: WEEK: $630
Rate Schedule: 3 MOS: $3975
Rate Schedule: 6 MOS: $7950
