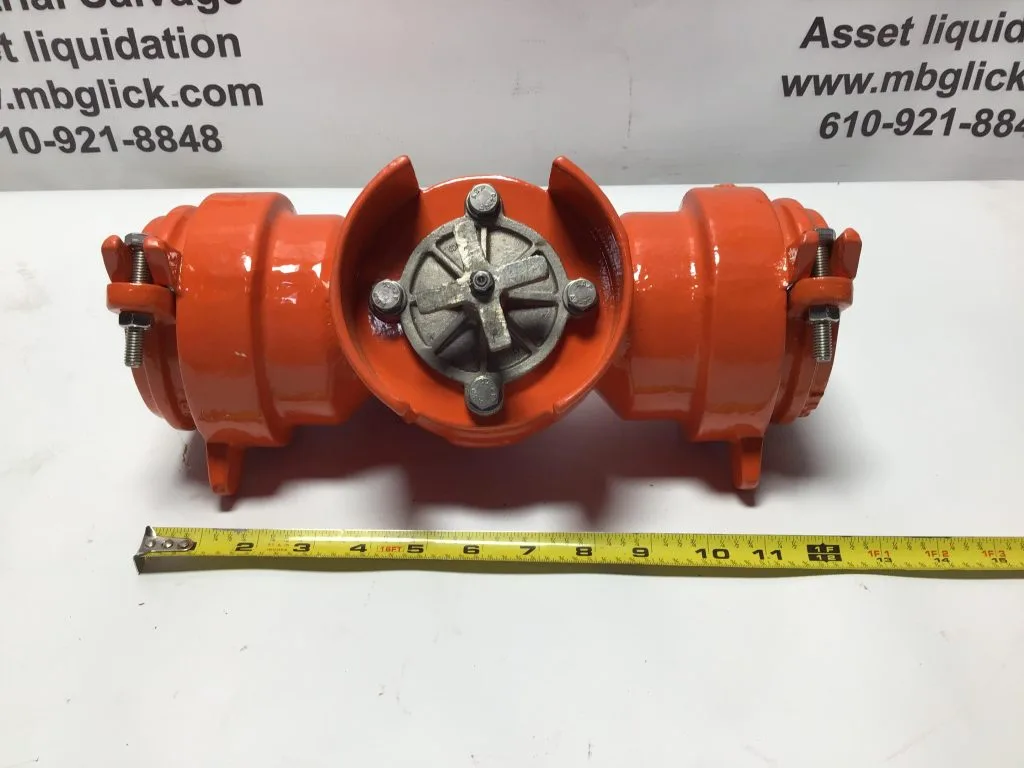

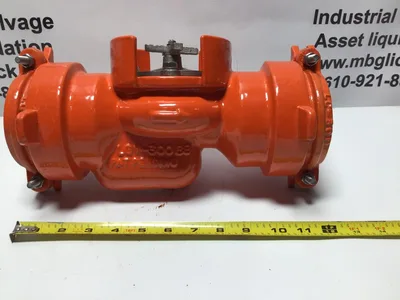

Leemco 3″ Globe Valve LGV-300BB For 9-15 17DR Lateral

Overview
Stock #:
L3GVL3F911L
Description

New. But does not come in the original packaging.
Details

Lateral to mainline connection is made with ductile

iron, resilient seated globe valve. Valve body and

restraint clamps are constructed of ductile iron.

Epoxy coating on all interior and exterior surfaces

are fusion bonded epoxy, 10-12 mil thickness. Valve

mechanism and hardware are made of 100% 304-

series stainless steel. The valve stem is fine

threaded stainless steel, O-Ring sealed for ease of

operation. Valve connection to the mainline fitting is

spigot x bell, mechanically attached and swivel

about the base 360 degrees to allow positioning of

valve outlet to any desired direction. Valve outlet is

deep bell, gasket and equipped with integrally cast

joint restraint clamps to securely fasten pipe to the

valve. Restraint has blunt cast serrations. Machine

threaded restraints will not be allowed. Riser

extensions are stackable.

Specifications

Manufacturer Leemco
https://www.leemco.com/wp-content/uploads/2017/10/lgv_valve-brochure.pdf

Specifications
Dimensions12 × 8 × 8 in12 × 8 × 8 in
Weight12 lbs12 lbs

Weight: 12 lbs
Dimensions: 12 × 8 × 8 in
