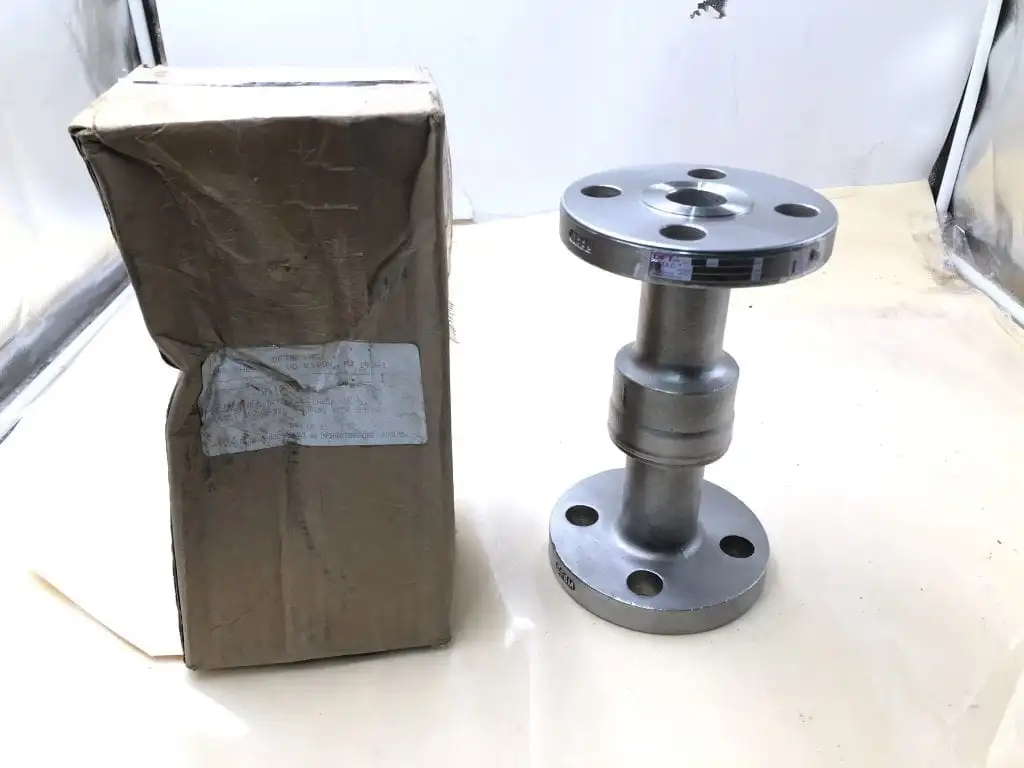

DFT DLC 1″ 316 Stainless Steel Class 300 Check Valve CF8M-NIB

New, in box.
720 psi @ 100 deg f.
 DFT® Model DLC is a corrosion resistant, dependable, versatile and economical spring assisted, in-line check valve for a wide range of applications. Whether the fluid is liquid, gas or steam, the DLC provides tight shut-off and protects other equipment in the system from water hammer. Its stainless steel construction insures a long service life.

Inconel X-750 spring is standard
Standard Features:

1/2″ to 3″ Line size

ASME Class 150 and 300

Standard Body Material A351 CF8M

Stainless Steel Construction

ANSI B16.10 Face-to-Face Dimensions

Raised Face Flanged Ends

Inconel® X-750 Spring

Electron Beam Welded Body

Spring-Assisted Silent Closing, Non-Slam

Horizontal or Vertical Installation

Weight: 16 lbs
Dimensions: 14 × 10 × 10 in
