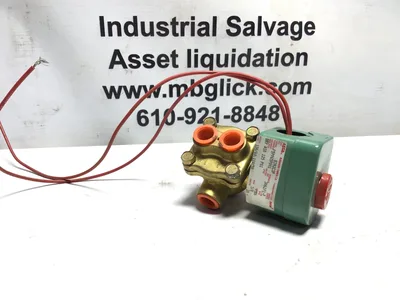

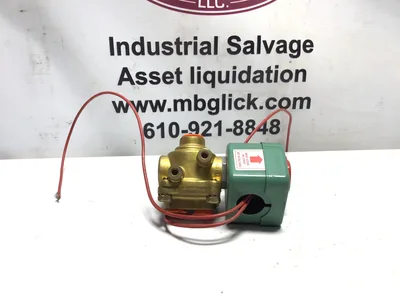

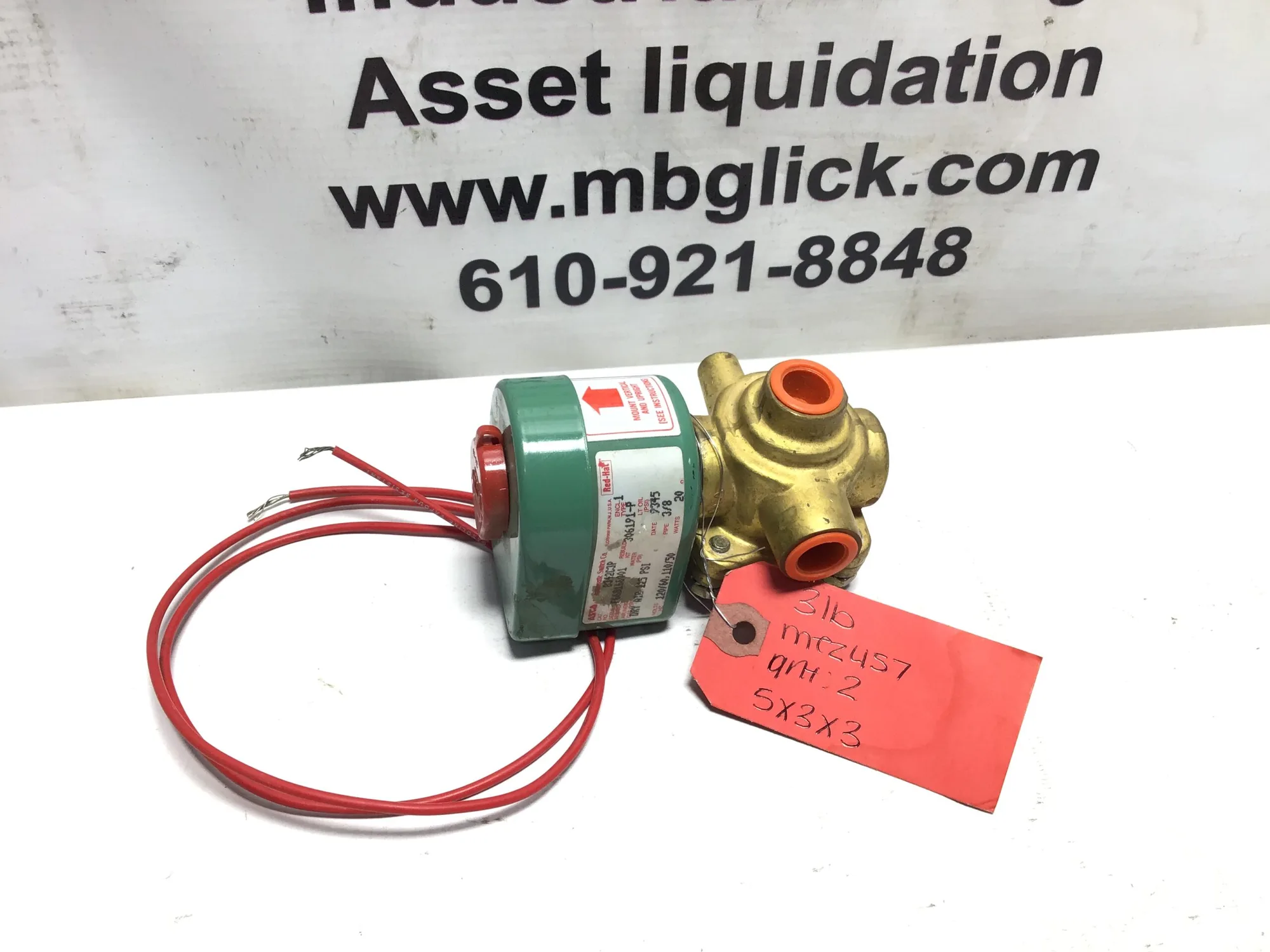

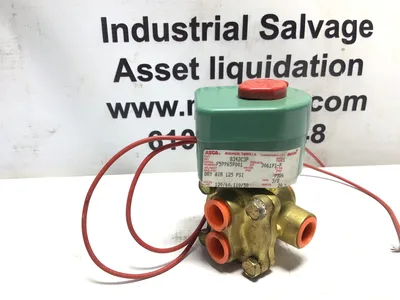

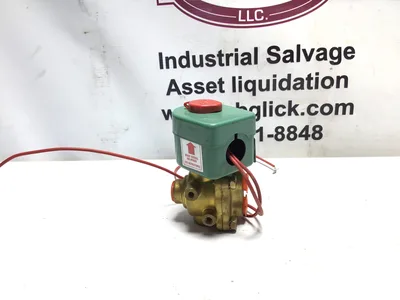

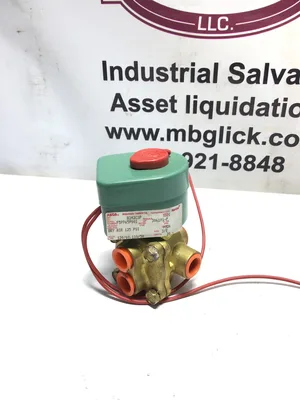

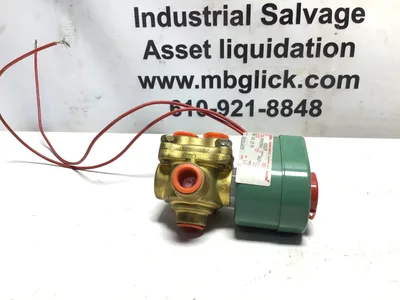

ASCO Red Hat Solenoid Valve 125PSI (8342C3P)

ASCO Red Hat Solenoid Valve 125PSI (8342C3P)
CAT NO.-8342C3P
SERIAL NUMBER-F599659001
GAS PSI- DRY AIR 125 PSI
VOLTS0 HZ- 120/60,110/50
PIPE-3/8
CODE-9326
REBUILD KIT- 306191-P
Direct Acting Valves:

When the solenoid is energized, the core directly opens the orifice of a Normally Closed valve or closes the orifice of a Normally Open valve.
When de-energized, a spring returns the valve to its original position.
These valves operate at pressures from 0 psi to their rated maximum.
Direct Acting Valves:
When the solenoid is energized, the core directly opens the orifice of a Normally Closed valve or closes the orifice of a Normally Open valve.
When de-energized, a spring returns the valve to its original position.
These valves operate at pressures from 0 psi to their rated maximum.
Internal Pilot Operated Valves:

These valves use inlet pressure for operation.
When the solenoid is de-energized, the pilot orifice is closed, and full line pressure is applied to the top of the piston or diaphragm.
When the solenoid is energized, the core opens the pilot orifice, relieving pressure from the top of the piston or diaphragm via the outlet side of the valve.
The line pressure then opens the valve by lifting the diaphragm or piston off the main orifice.
Two constructions are available for 2-way valves: floating diaphragm/piston (requires a minimum pressure drop) and hung-type diaphragm/piston (held open mechanically by the solenoid core)1.
Internal Pilot Operated Valves:
These valves use inlet pressure for operation.
When the solenoid is de-energized, the pilot orifice is closed, and full line pressure is applied to the top of the piston or diaphragm.
When the solenoid is energized, the core opens the pilot orifice, relieving pressure from the top of the piston or diaphragm via the outlet side of the valve.
The line pressure then opens the valve by lifting the diaphragm or piston off the main orifice.
Two constructions are available for 2-way valves: floating diaphragm/piston (requires a minimum pressure drop) and hung-type diaphragm/piston (held open mechanically by the solenoid core)1.
Manual Reset Valves:

These valves must be manually latched into position.
They return to their original position only when the solenoid is energized or de-energized, depending on construction1.
Manual Reset Valves:
These valves must be manually latched into position.
They return to their original position only when the solenoid is energized or de-energized, depending on construction1.

Weight: 3 lbs
Dimensions: 5 × 3 × 3 in
