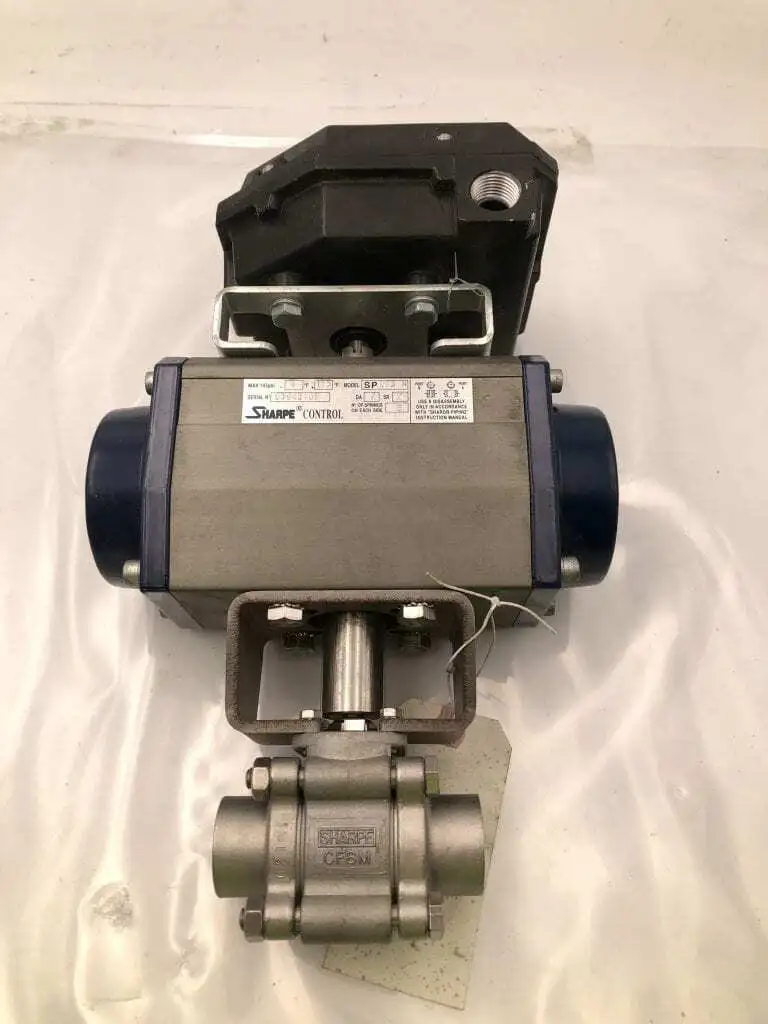

Sharpe Series 99 3/4” Ball Valve 2500 CWP SW 316 SST W/ Actuator

The Sharpe Series 99 Ball Valve is a heavy-duty, high-performance valve designed for industrial applications requiring precise flow control and durability. Equipped with an actuator, this valve is particularly suited for automated systems.
Key Features:
Valve Specifications:
Type: Ball valve.
Size: 3/4 inch.
Pressure Rating:

2500 CWP (Cold Working Pressure) for high-pressure applications.
2500 CWP (Cold Working Pressure) for high-pressure applications.
Connection:

SW: Socket weld ends ensure secure, leak-free connections.
SW: Socket weld ends ensure secure, leak-free connections.
Material:

316 Stainless Steel (SST): Provides excellent corrosion resistance and durability.
316 Stainless Steel (SST): Provides excellent corrosion resistance and durability.
Ball Design:

Full port or standard port design (consult specific sub-model for details).
Ensures minimal pressure drop and efficient flow.
Full port or standard port design (consult specific sub-model for details).
Ensures minimal pressure drop and efficient flow.
Actuator Specifications:
Type: Pneumatic or electric actuator (varies by configuration).

Pneumatic Actuator: Requires compressed air for operation, available in double-acting or spring-return styles.

Electric Actuator: Operated using an electric signal, suitable for remote control applications.
Pneumatic Actuator: Requires compressed air for operation, available in double-acting or spring-return styles.
Electric Actuator: Operated using an electric signal, suitable for remote control applications.
Torque Output:

Actuator torque matched to the valve for reliable operation under pressure.
Actuator torque matched to the valve for reliable operation under pressure.
Control:

Options for ON/OFF or modulating (positioning) control.
Options for ON/OFF or modulating (positioning) control.
Performance:
Temperature Range: Wide operational range, suitable for extreme temperatures (consult specific model for exact limits).
Media Compatibility: Handles various media, including gases, liquids, and corrosive substances.
Sealing: High-quality seals ensure zero leakage (ANSI Class VI or equivalent).
Applications:
Oil and gas pipelines.
Chemical processing.
Power generation systems.
High-pressure water systems.
Industrial automation and control systems.
Advantages:
Durability:

316 SST construction resists wear, corrosion, and extreme conditions.
316 SST construction resists wear, corrosion, and extreme conditions.
High Pressure:

Rated for 2500 CWP, making it suitable for demanding applications.
Rated for 2500 CWP, making it suitable for demanding applications.
Automation:

Actuator integration allows for remote and precise control.
Actuator integration allows for remote and precise control.
Safety:

Socket weld connections provide robust, leak-proof installations.
Socket weld connections provide robust, leak-proof installations.
Installation Notes:
Welding:

Ensure proper welding procedures for SW connections to avoid damaging the valve.
Ensure proper welding procedures for SW connections to avoid damaging the valve.
Actuator Configuration:

Verify actuator alignment and ensure proper torque for opening/closing the valve.
Verify actuator alignment and ensure proper torque for opening/closing the valve.
Maintenance:

Regularly inspect seals and actuator performance.
Lubricate moving parts as needed (if applicable).
Regularly inspect seals and actuator performance.
Lubricate moving parts as needed (if applicable).

Weight: 20 lbs
Dimensions: 20 × 16 × 16 in
