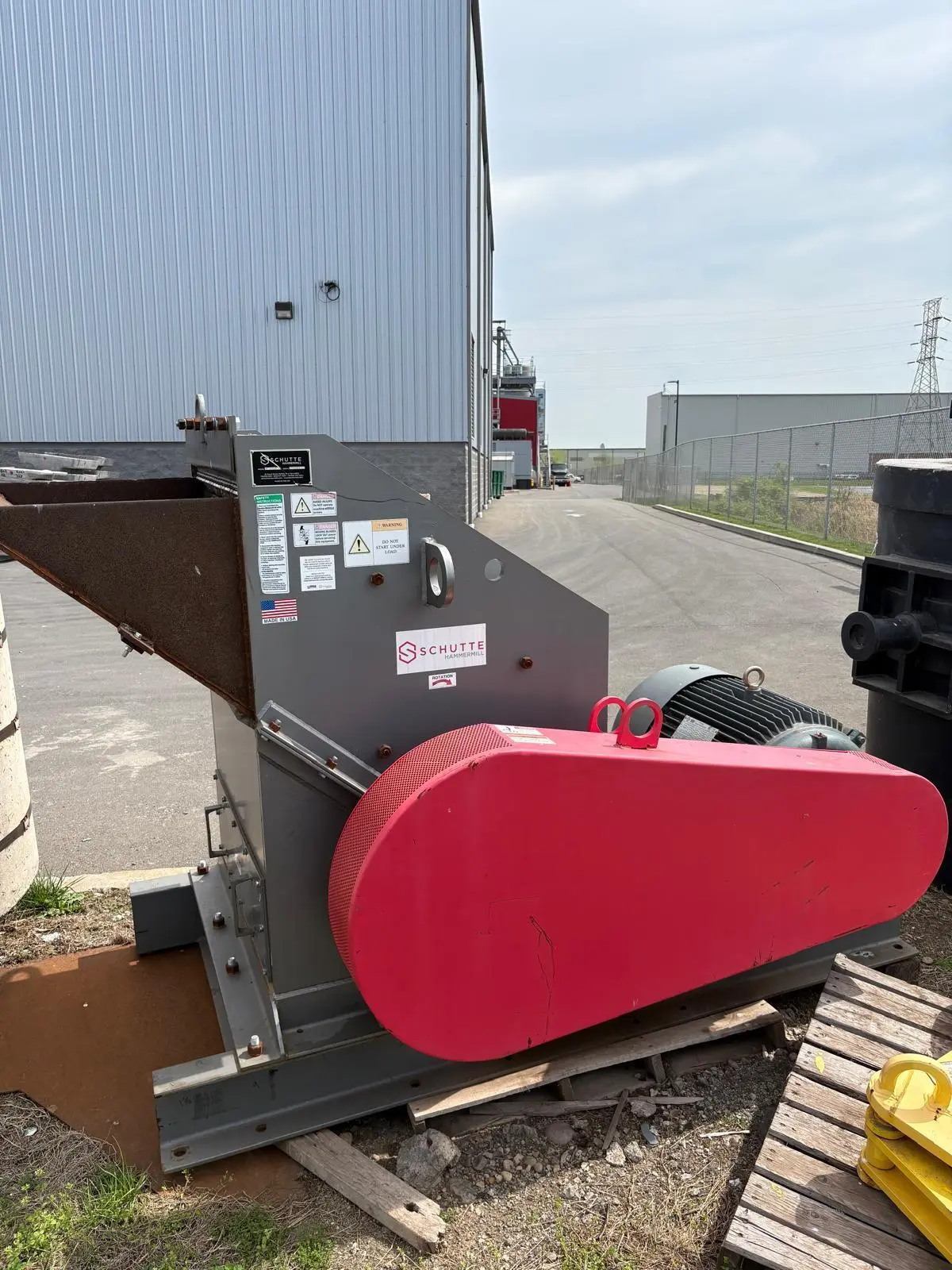

USED SCHUTTE RC 2232

⚙️ Core Specifications
Feed Opening: 22" x 32"
Motor Size: 60–75 HP
Throughput Capacity: ~50–60 TPH (½" nominal output)
Rotor Speed: ~1,800 RPM
Footprint: ~80" L x 46" W
📐 Typical Overall Dimensions (as-built units)
Approx. Size:
63" L x 40" W x 72" H
Hopper Size:
~26" L x 37" W x 25" H

(Dimensions vary slightly depending on hopper, base, and drive configuration.)

🔩 Construction & Internal Components
Heavy plate construction: ¾"–1½" steel housing
Replaceable AR-500 breaker plates (1")
Replaceable abrasion-resistant liners (⅜")
3" reversible cast carbide hammers
Bar grate system (controls final product size)
🔧 Standard Features
Hydraulic-opening top housing for maintenance
Safety interlock system
Slip disk protection on hammer rods
Ram-fed or gravity-fed configurations (varies by setup)
🧱 Typical Applications
Reclaimed asphalt (RAP)
Concrete / brick
Glass
Foundry castings
Slag / mineral waste
