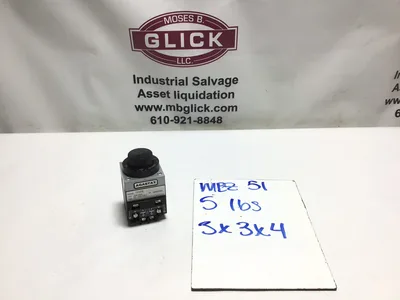

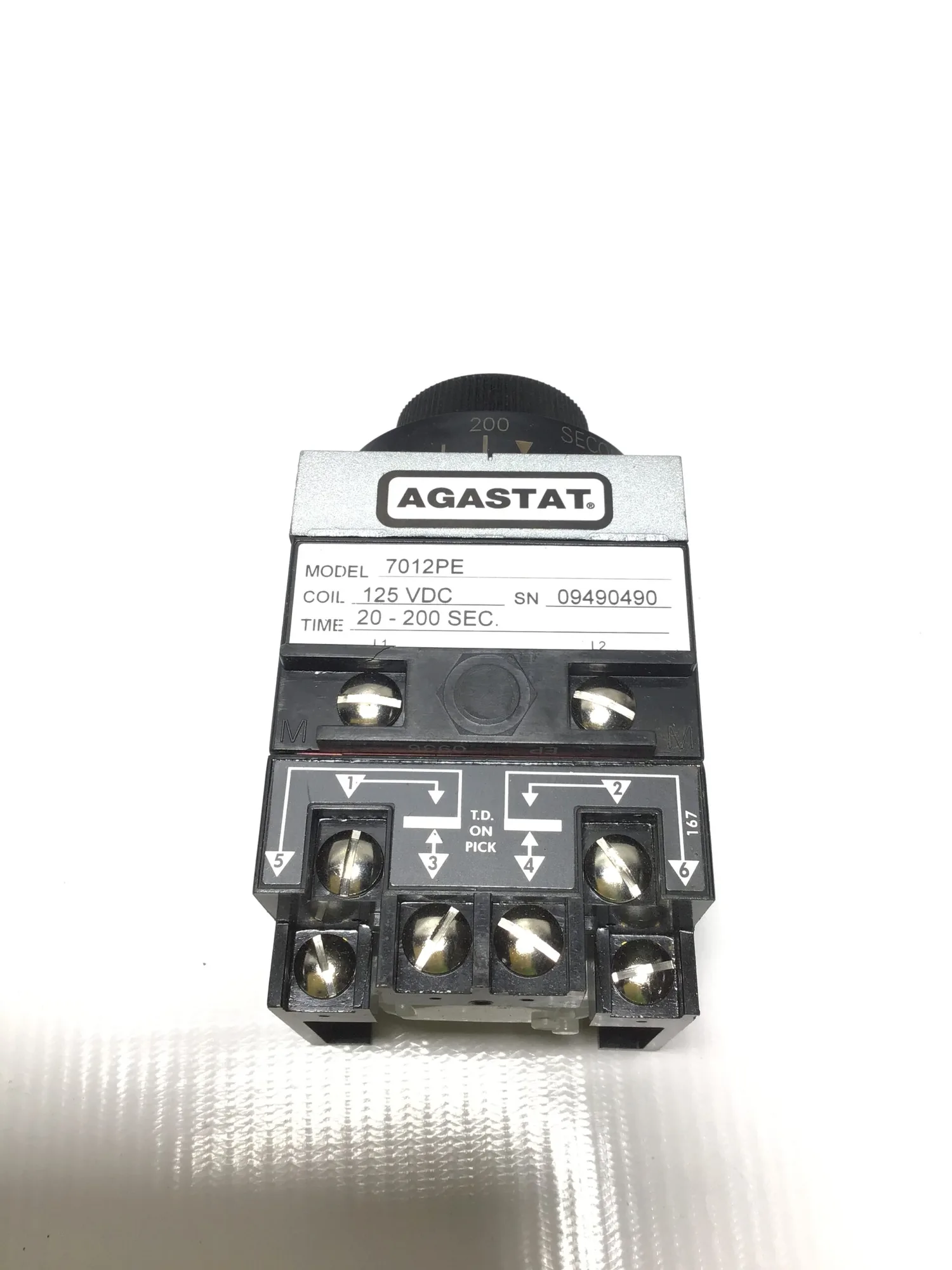

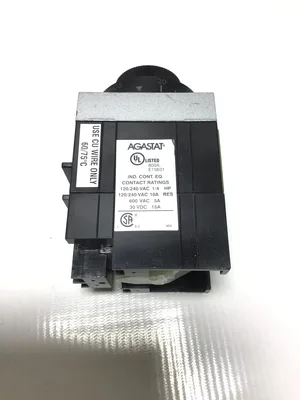

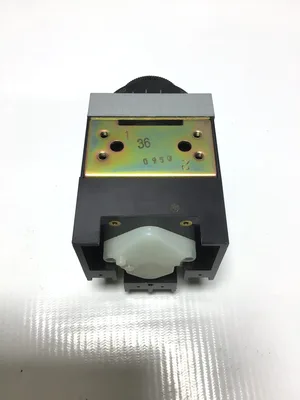

AGASTAT 70012PE Time Delay Relay

The AGASTAT 70012PE is a time delay relay designed for industrial applications, offering precise control over timing sequences. This relay is part of the 7000 series by TE Connectivity, known for its durability and reliability in demanding environments.
Key Features:
Relay Type: Time Delay Relay
Current Type: DC
Contact Arrangement: 2 Form C DPDT-CO
Contact Rating: 10 A
Mounting: Chassis Mount
Operating Temperature: Up to 75°C (167°F)
Coil Voltage: 125 VDC
Time Delay Range: Adjustable from 1 to 10 minutes
For detailed specifications and datasheets, refer to TE Connectivity’s official product page.

Pricing and Availability:
List Price: Approximately $341.26
Availability: In stock at various distributors
For purchasing options, consider checking with authorized distributors such as 3J Industry.

Cross-Reference Information:
The AGASTAT 70012PE relay is compatible with several other models in the 7000 series, including:
7012PA: Time Delay Relay, 125 VDC Coil, 0.1-1 Second Range
7012AF: Time Delay Relay, 240 VAC Coil, 10-Minute Delay

Weight: 5 lbs
Dimensions: 3 × 3 × 4 in
