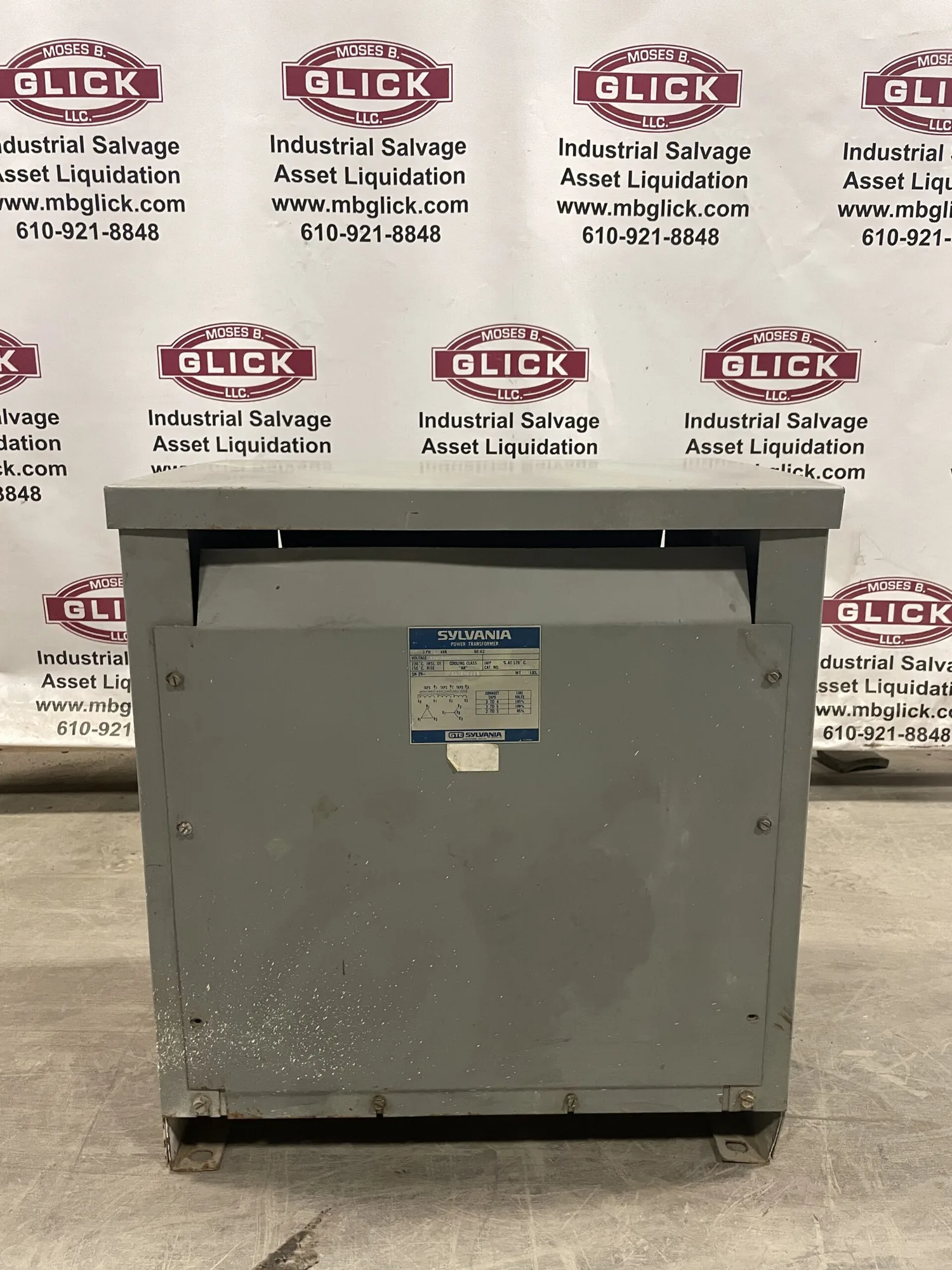

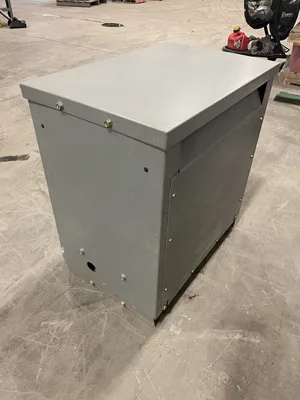

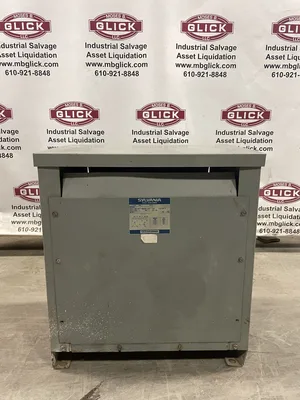

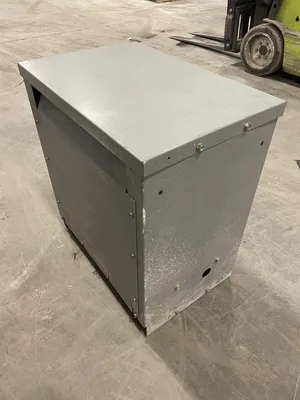

Sylvania 342-LP3-3A Power Transformer 34KVA 460V 460Y/266V 3PH 60hz

The Sylvania 342-LP3-3A is a 34 kVA, 3-phase, dry-type transformer designed for industrial applications requiring reliable voltage conversion. Its specifications are as follows:
    Specifications
Power Rating: 34 kVA
Power Rating: 34 kVA
Primary Voltage: 460V Delta
Primary Voltage: 460V Delta
Secondary Voltage: 460Y/266V Wye
Secondary Voltage: 460Y/266V Wye
Frequency: 60 Hz
Frequency: 60 Hz
Phase: 3-phase
Phase: 3-phase
Temperature Rise: 150°C
Temperature Rise: 150°C
Impedance: 2.90%
Impedance: 2.90%
Taps: +1, -1
Taps: +1, -1

Weight: 500 lbs
Dimensions: 32 × 22 × 34 in
