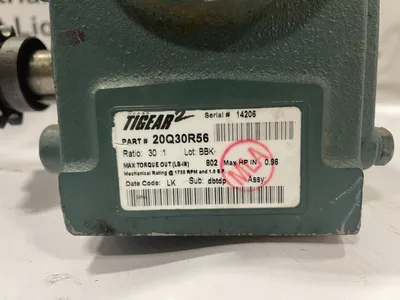

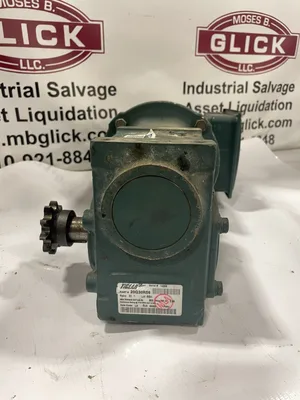

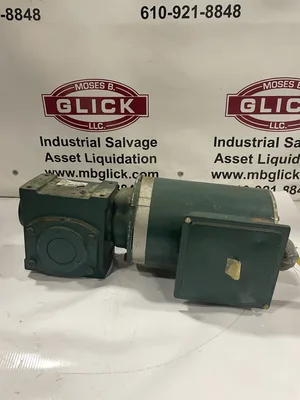

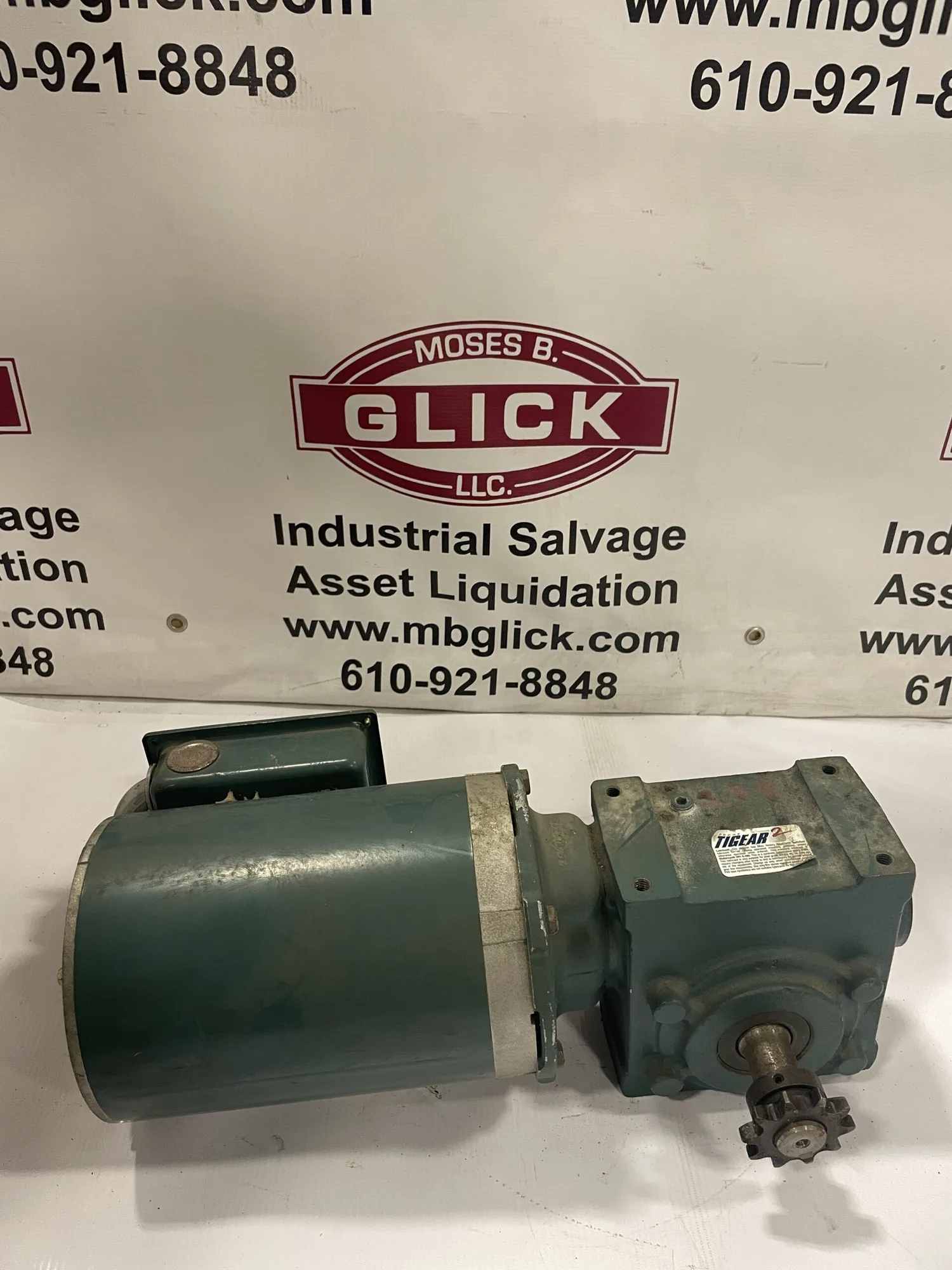

Dodge Tigear 2 20Q30R56 Gear Drive/Reducer 30:1 1HP 230/460V 3PH

The Dodge Tigear-2 20Q30R56 is a robust, right-angle worm gear reducer designed for industrial applications requiring reliable torque transmission and compact design. Part of the Dodge® Tigear-2® series, this model is engineered for durability and efficiency in demanding environments.
🔧 Key Specifications
Gear Ratio: 30:1
Gear Ratio: 30:1
Input Type: Quill (C-Face Quilled)
Input Type: Quill (C-Face Quilled)
Input Shaft Size: 5/8 inch
Input Shaft Size: 5/8 inch

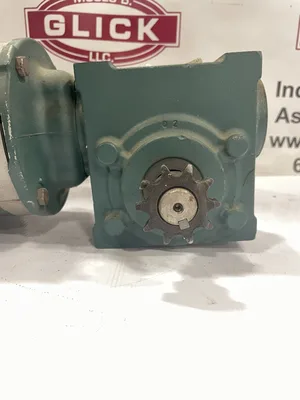

Output Type: Solid B Right
Output Type: Solid B Right
Output Shaft Size: 1 inch
Output Shaft Size: 1 inch
Maximum Input Speed: 1750 RPM
Maximum Input Speed: 1750 RPM
Maximum Output Speed: 58 RPM
Maximum Output Speed: 58 RPM
Rated Output Torque: 802 in-lb
Rated Output Torque: 802 in-lb
Horsepower Input: 0.96 hp
Horsepower Input: 0.96 hp
Horsepower Output: 0.74 hp
Horsepower Output: 0.74 hp
Thermal Horsepower Rating: 1.49 hp
Thermal Horsepower Rating: 1.49 hp
Center Distance: 2 inches
Center Distance: 2 inches
Weight: Approximately 30 lbs
Weight: Approximately 30 lbs
Housing Material: Class 30 Gray Iron
Housing Material: Class 30 Gray Iron
Lubrication: Synthetic Oil (PAG)
Lubrication: Synthetic Oil (PAG)
Seal Type: Single-Lip Contact
Seal Type: Single-Lip Contact
Mounting: 56C Frame, compatible with NEMA motors
Mounting: 56C Frame, compatible with NEMA motors
Overhung Load Capacity: 1560 lbf
Overhung Load Capacity: 1560 lbf
Efficiency: 60–95%
Efficiency: 60–95%
Rotation Type: Right Hand
Rotation Type: Right Hand

Weight: 72 lbs
Dimensions: 22 × 14 × 12 in
