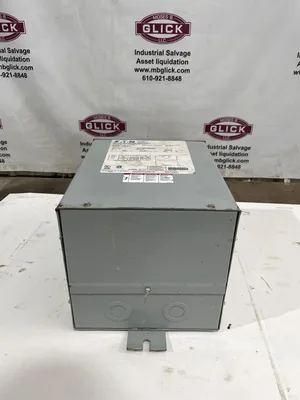

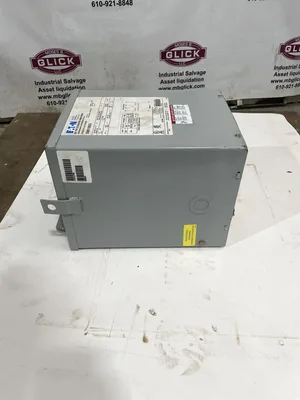

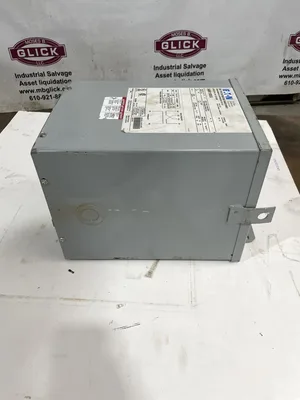

Eaton S48N11S05CU 5KVA Transformer 480V 120/240V 60Hz

The Eaton S48N11S05CU is a durable, high-performance single-phase encapsulated dry-type transformer, designed for general-purpose industrial, commercial, and institutional applications. With a primary voltage of 480 V and a secondary voltage of 120/240 V, this transformer delivers 5 kVA of reliable power conversion.
Housed in a NEMA 3R-rated enclosure, the S48N11S05CU is suitable for both indoor and outdoor installations, offering resistance to moisture, dust, and other environmental factors. It features aluminum or optional copper windings (CU variant may indicate copper), built to ensure longevity, efficiency, and reduced noise under load.
Engineered with a 115 °C temperature rise, this transformer provides excellent thermal performance, minimizing the risk of overheating and extending equipment life. The sealed, encapsulated design helps reduce maintenance and protects internal components from contaminants and vibration.

Weight: 166 lbs
Dimensions: 20 × 14 × 14 in
