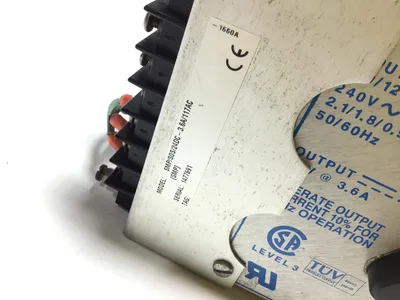

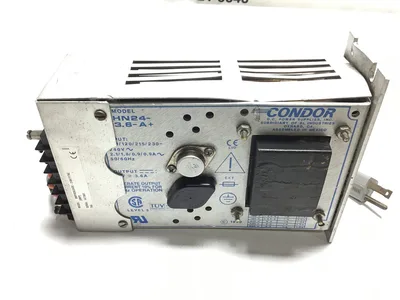

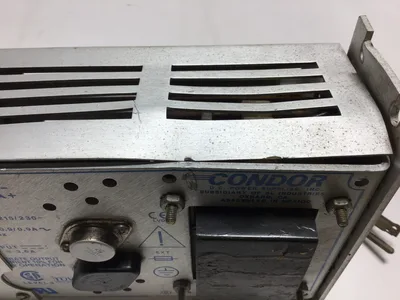

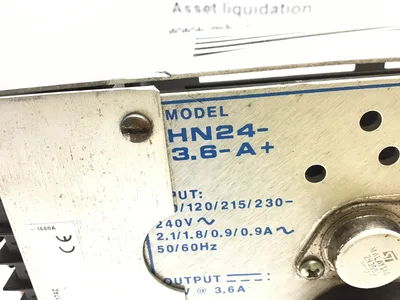

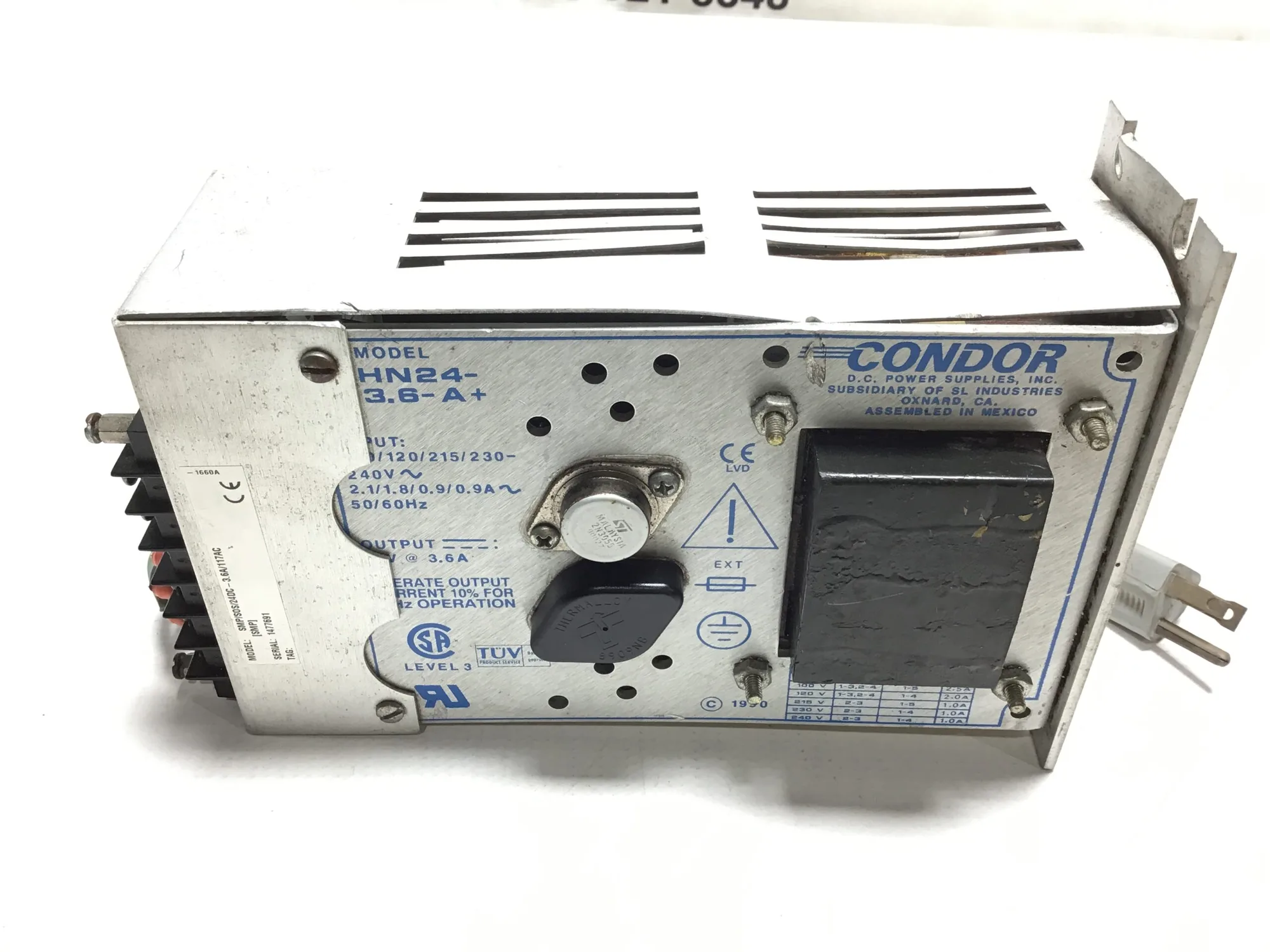

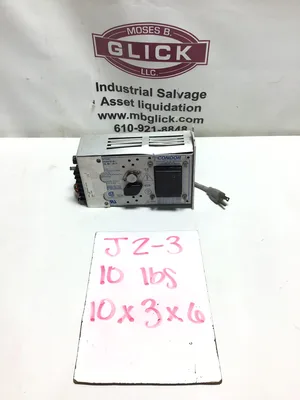

Condor HN24-3.6-A+ DC Power Supply

Product Overview
The Condor HN24-3.6-A+ is a linear, single-output DC power supply designed for industrial and instrumentation applications that require low noise and precise voltage regulation. It provides a regulated 24-volt DC output at up to 3.6 amps, delivering approximately 86 watts of output power. Manufactured by Condor (now part of SL Power Electronics), it’s a reliable, chassis-mount supply often used in test equipment, control systems, and other demanding electronic systems.
Key Features
Output Voltage: 24 V DC
Output Voltage: 24 V DC
Output Current: 3.6 A maximum
Output Current: 3.6 A maximum
Output Power: Approximately 86 W
Output Power: Approximately 86 W
Input Voltage Range: 100–240 V AC, 47–63 Hz
Input Voltage Range: 100–240 V AC, 47–63 Hz
Topology: Linear regulated design for low noise and ripple
Topology: Linear regulated design for low noise and ripple
Line and Load Regulation: ±0.05 % typical
Line and Load Regulation: ±0.05 % typical
Output Adjustment Range: ±5 %
Output Adjustment Range: ±5 %
Efficiency: Approximately 55–60 %
Efficiency: Approximately 55–60 %
Ripple and Noise: Very low (typical of linear supplies)
Ripple and Noise: Very low (typical of linear supplies)
Operating Temperature: 0 °C to 70 °C (derating may apply at higher temperatures)
Operating Temperature: 0 °C to 70 °C (derating may apply at higher temperatures)
Cooling: Convection-cooled, with chassis-mount configuration
Cooling: Convection-cooled, with chassis-mount configuration
Construction: Open-frame or chassis-mount style
Construction: Open-frame or chassis-mount style
Protection Features: Over-voltage and short-circuit protection
Protection Features: Over-voltage and short-circuit protection
Certifications: UL, cUL, TUV, CE (varies by production version)
Certifications: UL, cUL, TUV, CE (varies by production version)

Weight: 17 lbs
Dimensions: 11 × 11 × 7 in
