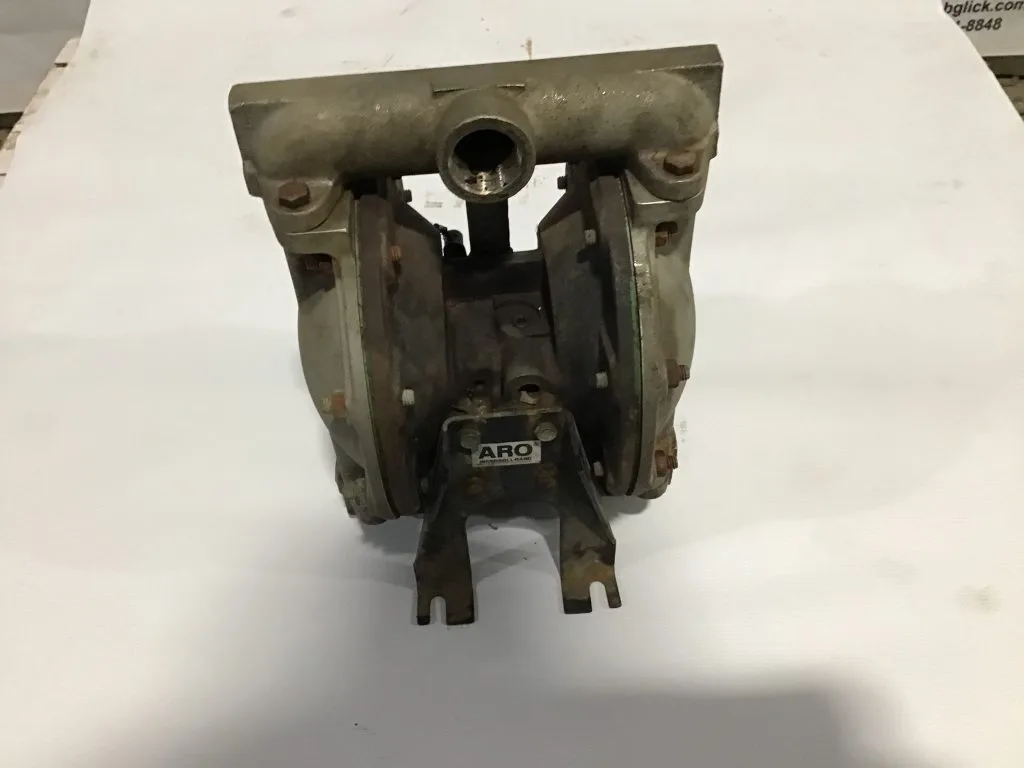

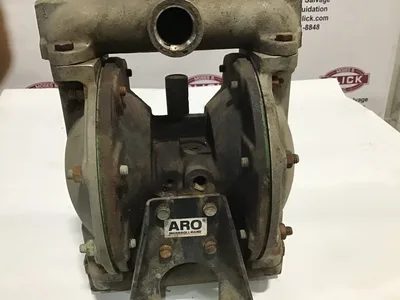

Ingersoll Rand ARO 666111-2A4-C of ARO Pro Series Diaphragm Pump 35 GPM

Used, in good condition. This pump was in working condition when taken out of service. It does need a good cleaning.
PRODUCT TYPE Pump

MATERIAL – DIAPHRAGM PTFE/Santoprene

BRAND ARO

PUMP APPLICATION Air Operated

INLET/OUTLET CONNECTION TYPE NPTF

MATERIAL – HOUSING Cast Iron

SOLIDS HANDLING 1/8 in

MATERIAL – BALLS Stainless Steel

MATERIAL – SEATS 316 Stainless Steel

MAX AIR INLET PRESSURE 120 psi (8.3 bar)

MAX FLOW 35 gpm (132.5 lpm)

MAX FLUID PRESSURE 120 psi (8.3 bar)

MAX TEMPERATURE 280°F (137.8°C)

NOISE LEVEL 64.5 dB(A)

NOTES Diaphragm Pump, 1″ Pro Series with Cast Iron body, NPTF threads, Stainles Steel fluid cap/mainfold, single inlet/outlet, Steel Hrdwr, 316 SS seats, SS balls, Teflon PFTE/Santoprene diaphragms.

DISPLACEMENT Positive Displacement
https://s3.amazonaws.com/zcom-media/sites/a0i0L00000VJ0SJQA1/media/mediamanager/666111-2A4-C-technical-datasheet.pdf
Double Diaphragm Pump

The ARO range of air operated diaphragm pumps offers many materials of construction. A double diaphragm pump is a positive displacement pump that uses a two sets of flexible membranes to pump fluids and a series of check valves to ensure fluid can only travel in one direction through the chamber. Air operated diaphragm pumps are designed for general use. They can easily pump from clean, light viscosity fluids to corrosive, abrasive medium viscosity fluids and can transfer large particles without damage. Due to their pneumatic motor, they could be used in potentially explosive areas. Air operated diaphragm pumps utilize a pressure differential in the air chambers to alternately create suction in the fluid chambers. Pump cycling will begin as air pressure is applied.
Features:

Mobility – Compact, rugged design allows for easy mobility

Efficiency – Motor design delivers optimum air efficiency

Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation

Versatility – Available in aluminum, cast iron or stainless steel to withstand tough chemical applications

Environmentally Sound – Bolted construction for leak-free fluid handling

Serviceability – Easy access to ball checks and fluid caps for maintenance and repairs

Pump Casing Materials:

Aluminum

Cast Iron

Stainless Steel

Weight: 60 lbs
Dimensions: 16 × 12 × 12 in
