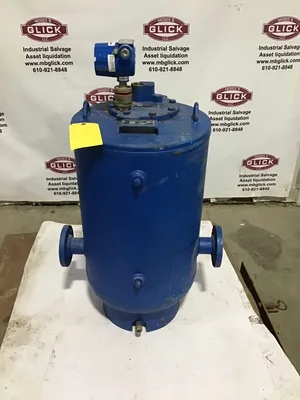

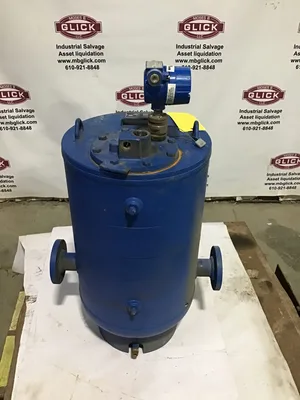

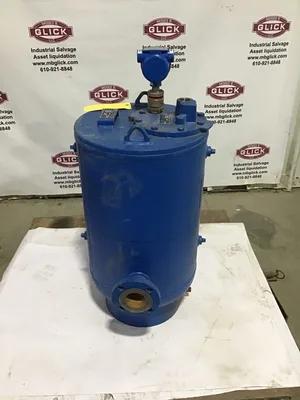

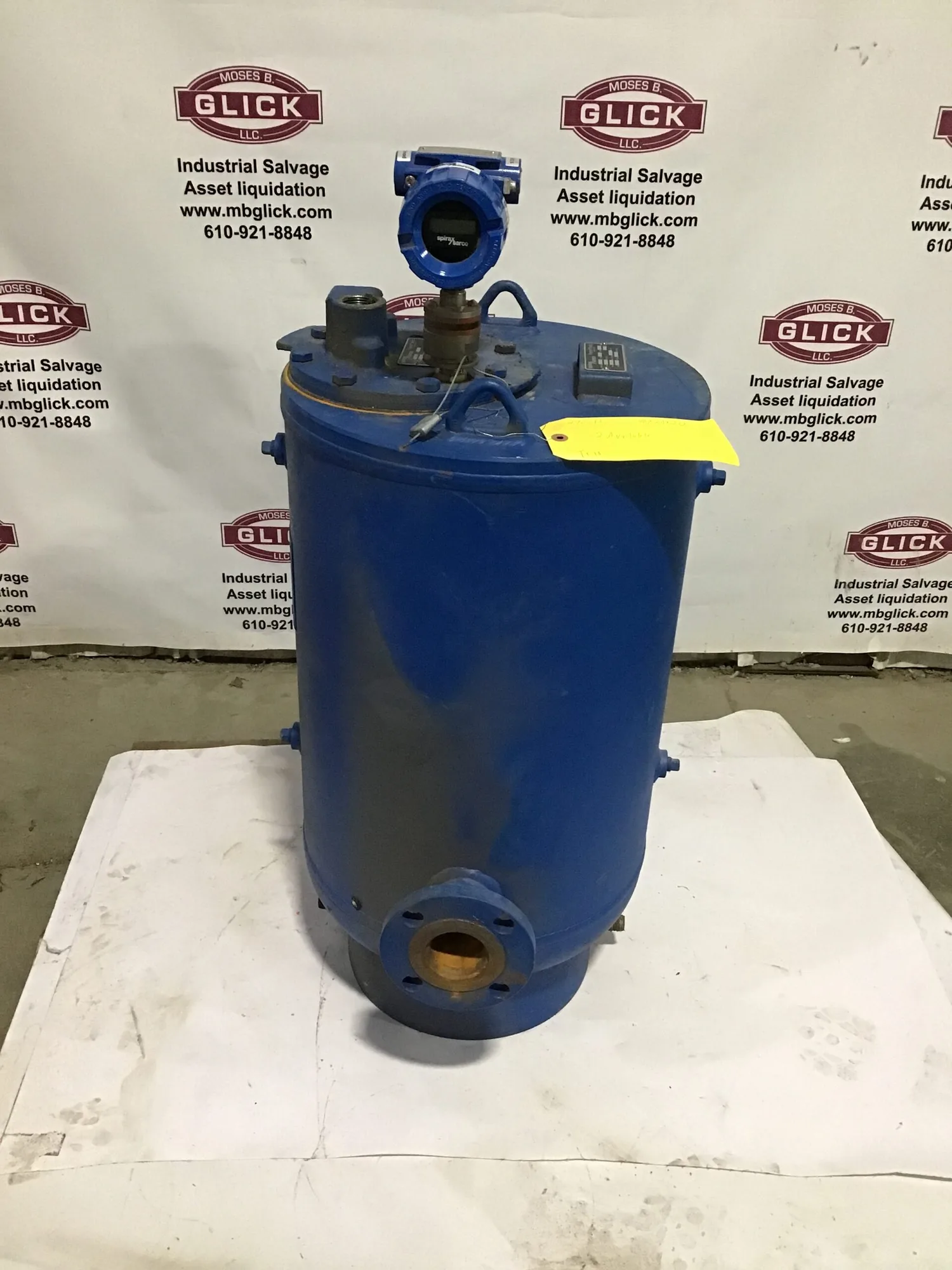

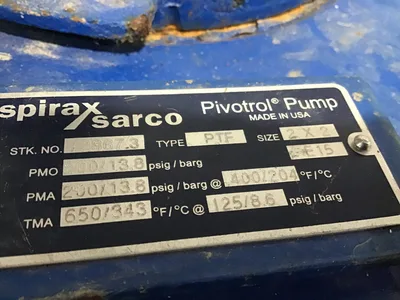

Spirax Sarco Pivotrol 72897.3 PTF Pressure Powered Pump
Overview
Description

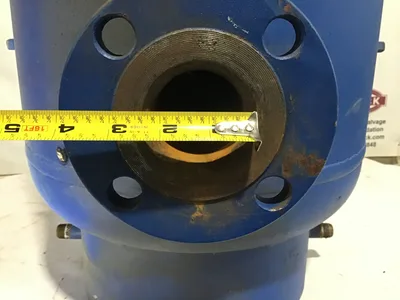

Spirax Sarco Pivotrol 72897.3 PTF Pressure Powered Pump With Check Valve, Fabricated Steel Body, 2 in Inlet x 2 in Outlet, Socket Weld/ANSI 150 Flanged Connection
SPECIFICATIONS
ITEM FEATURES
NPT cover
8.4 gal nominal pump discharge per cycle
3 lb of steam/1000 lb of liquid pumped air consumption
5 psig minimum motive differential pressure
200 psig at 400 deg F and 125 psig at 650 deg F maximum allowable pressure
400 deg F at 200 psig and 650 deg F at 125 psig maximum allowable temperature
Stainless steel check valve
60 SCF/1000 lb of liquid pumped air consumption
0.8 to 0.89 specific gravity
6 maximum number of cycles per minute
Filling head recommended above centerline of inlet check valve in 12 in
Specifications
| Dimensions | 40 × 20 × 20 in | 40 × 20 × 20 in |
|---|---|---|
| Weight | 240 lbs | 240 lbs |

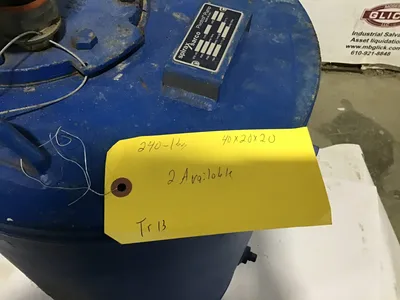

Weight: 240 lbs
Dimensions: 40 × 20 × 20 in
