USED FEDERAL PACIFIC T48LH2Y-30

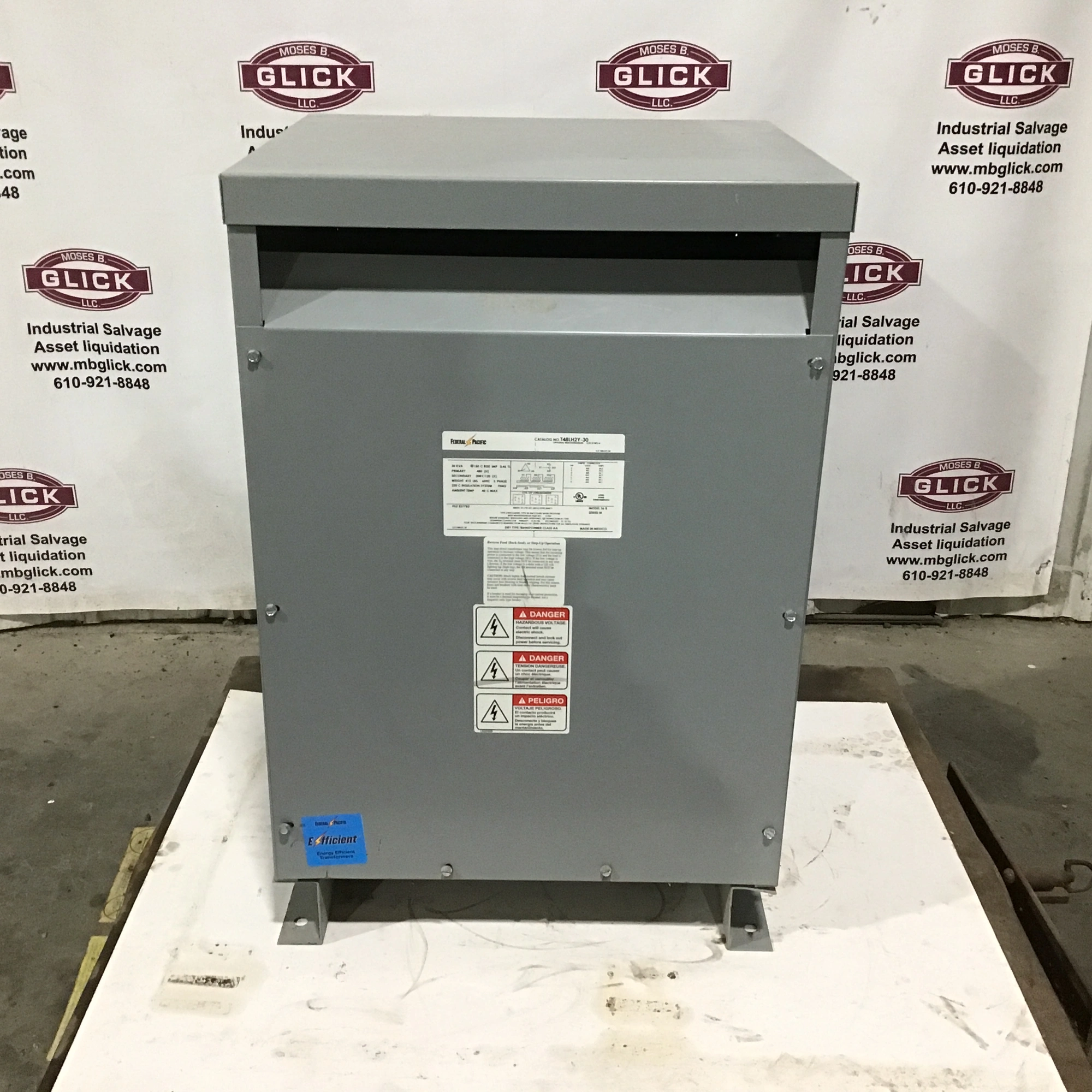

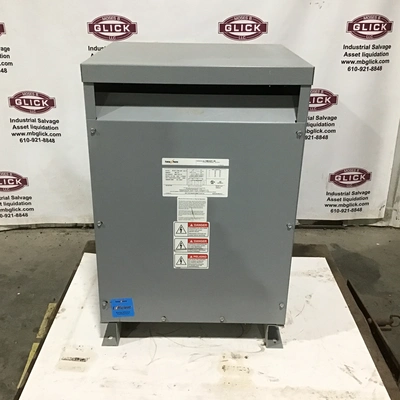

This listing is for a Federal Pacific 30 kVA dry-type distribution transformer, model T48LH2Y-30, in excellent used condition. This industrial-grade transformer is ideal for commercial, facility, industrial, and shop power distribution applications.
Built for reliability and continuous operation, this AA/FA rated transformer provides stable performance with a 480V primary and 208Y/120V secondary output. The unit is clean, tested, and ready for installation.
📌 Item Details
Brand: Federal Pacific
Brand: Federal Pacific
Model: T48LH2Y-30
Model: T48LH2Y-30
kVA Rating: 30 kVA
kVA Rating: 30 kVA
Type: Dry-Type Transformer (AA/FA)
Type: Dry-Type Transformer (AA/FA)
Phase: 3-Phase
Phase: 3-Phase
Primary Voltage: 480V
Primary Voltage: 480V
Secondary Voltage: 208Y/120V
Secondary Voltage: 208Y/120V
Frequency: 60 Hz
Frequency: 60 Hz
Temperature Rise: 150°C
Temperature Rise: 150°C
Insulation System: 220°C
Insulation System: 220°C
Enclosure: Ventilated NEMA-style enclosure
Enclosure: Ventilated NEMA-style enclosure
Weight: 415 lbs
Weight: 415 lbs

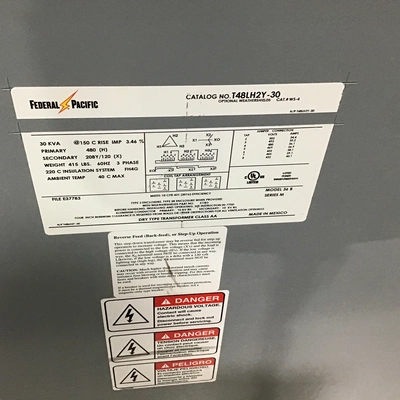

Wiring Diagram: Label intact (see photos)
Wiring Diagram: Label intact (see photos)
⭐ Features
High-efficiency commercial-grade transformer
High-efficiency commercial-grade transformer
Durable heavy-duty steel enclosure
Durable heavy-duty steel enclosure
Suitable for warehouses, manufacturing, HVAC, and building power distribution
Suitable for warehouses, manufacturing, HVAC, and building power distribution
Made in Mexico – quality Federal Pacific construction
Made in Mexico – quality Federal Pacific construction
Ideal for step-down power conversion from 480V to 208Y/120V
Ideal for step-down power conversion from 480V to 208Y/120V
🔧 Applications
Industrial electrical distribution
Industrial electrical distribution
Commercial buildings
Commercial buildings
Machine shops
Machine shops
Panelboards & subpanels
Panelboards & subpanels
HVAC equipment
HVAC equipment
Power distribution upgrades
Power distribution upgrades

Weight: 375 lbs
Dimensions: 36 × 36 × 40 in
