Circuit Shield Type 25V 424K105 Synchronism Check Relay; 10sec, 120V Measure

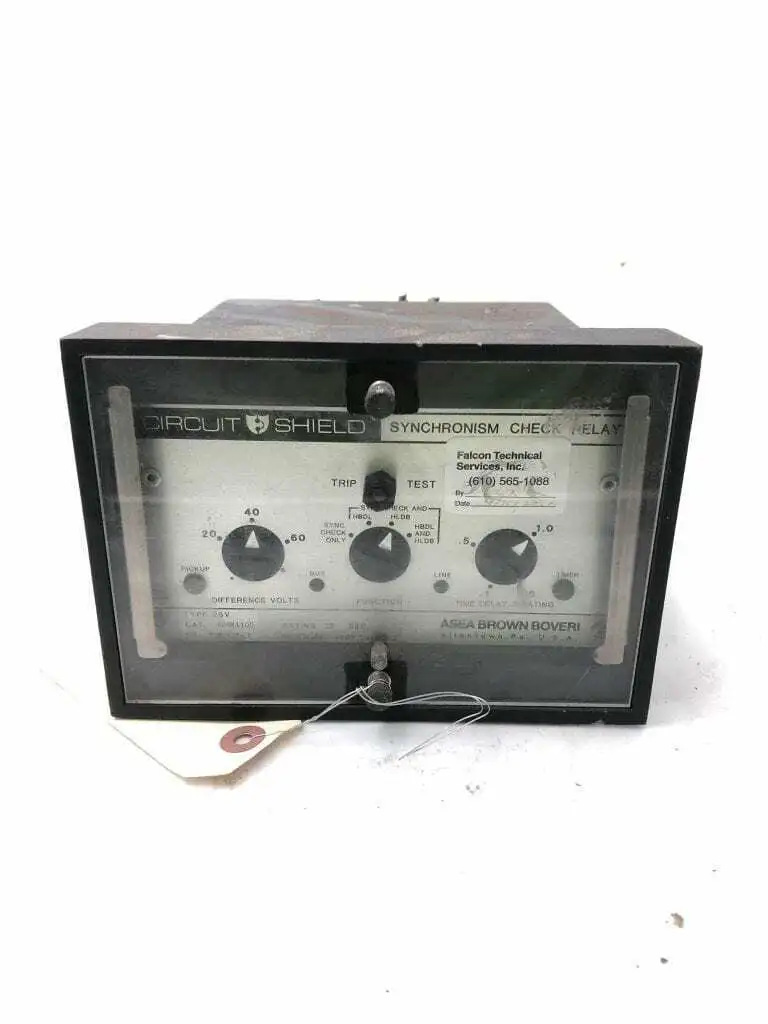

Name: Circuit Shield Type 25V 424K105 Synchronism Check Relay

Function: Synchronism Check / Voltage Monitoring Relay

Timing: 10-second delay

Input: 120V measure
Overview:

The Circuit Shield Type 25V 424K105 is a synchronism check relay used in electrical power systems to verify that two AC voltage sources are in proper synchronism before they are connected together. It ensures that voltages, frequency, and phase angle are within acceptable limits so that parallel operation of generators or connection of loads can occur safely and without damage.
Key Features:
Designed to measure 120 V AC input for voltage comparison
Designed to measure 120 V AC input for voltage comparison
Synchronism check function to compare phase relationship between two voltage sources
Synchronism check function to compare phase relationship between two voltage sources
Built-in 10-second delay timer to allow settling or controlled timing before relay action occurs
Built-in 10-second delay timer to allow settling or controlled timing before relay action occurs
Rugged industrial construction for reliable operation in control panels
Rugged industrial construction for reliable operation in control panels
Provides a logic output to permit or block breaker operation based on synchronism criteria
Provides a logic output to permit or block breaker operation based on synchronism criteria
Typical Uses:
Generator paralleling systems
Generator paralleling systems
Utility intertie protection
Utility intertie protection
Switchgear control logic
Switchgear control logic
Power system automation where synchronization must be verified before closing a breaker
Power system automation where synchronization must be verified before closing a breaker

Weight: 9 lbs
Dimensions: 13 × 11 × 10 in
