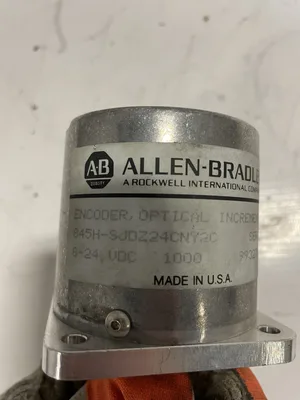

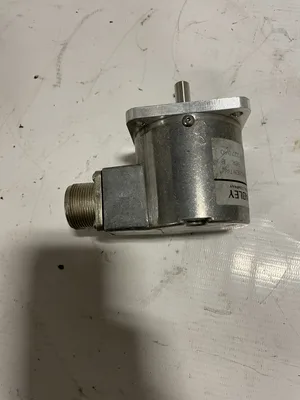

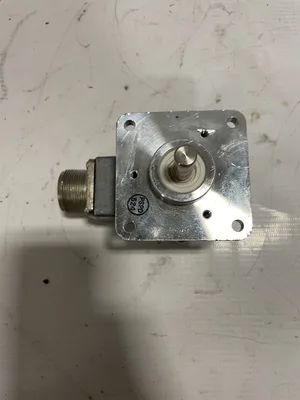

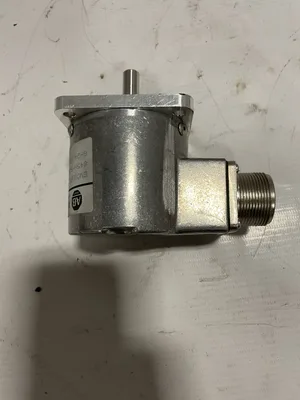

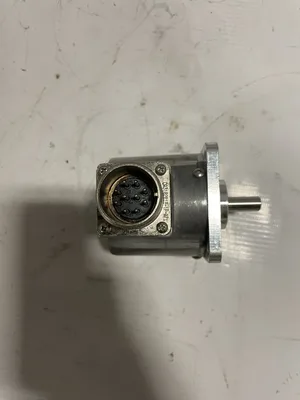

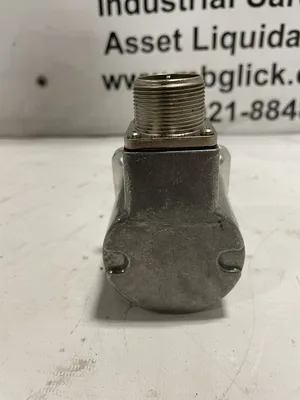

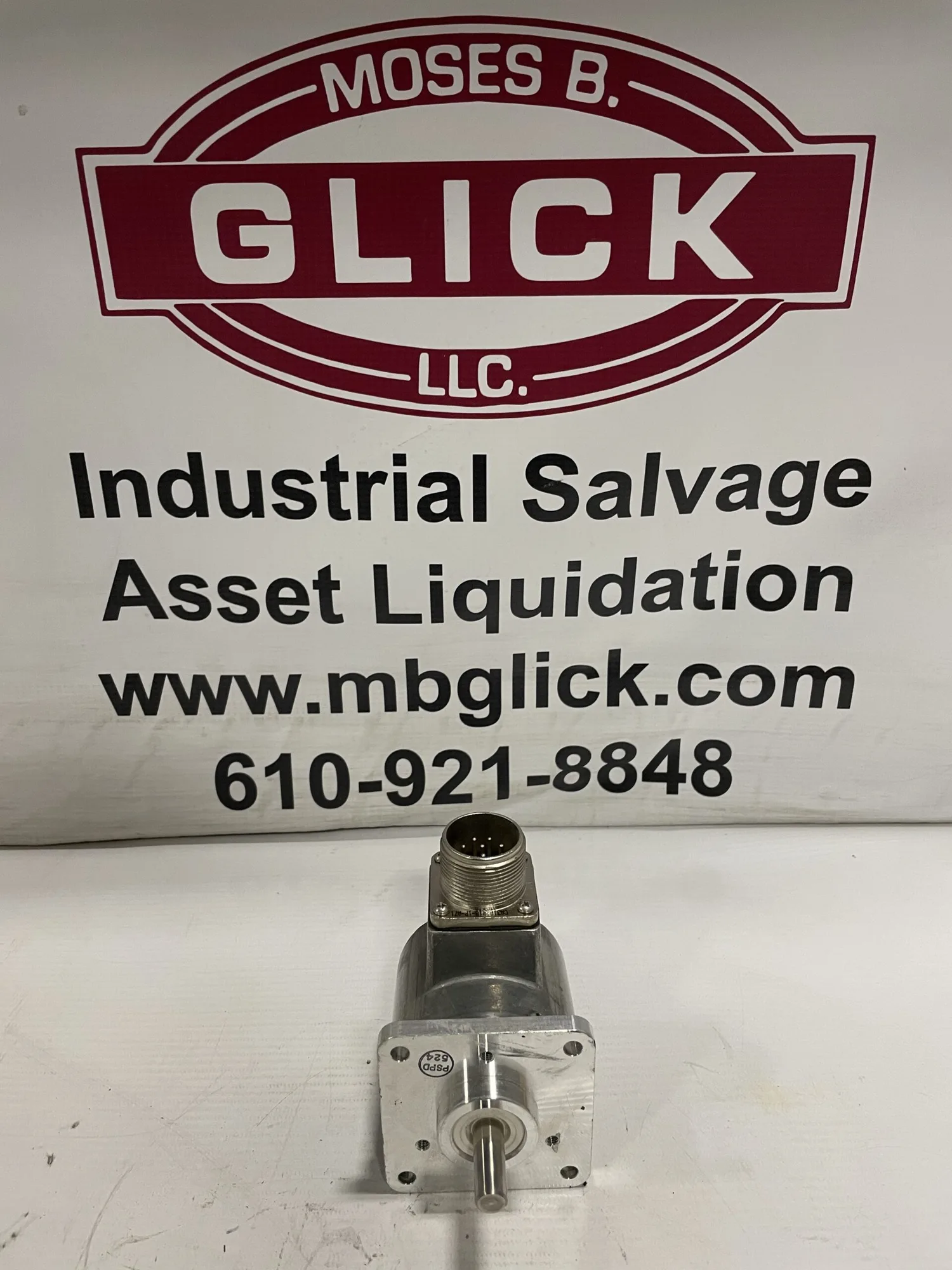

Allen Bradley 845H-SJDZ24CNY2C DC Optical Incremental Encoder 8-24V 1000 PPR

HAS A APPROX. 0.375” DIAMETER SHAFT
The Allen-Bradley 845H-SJDZ24CNY2C is an optical incremental encoder designed for use in industrial automation applications. Below is a breakdown of its features and specifications:
Key Features:
Series: 845H
Type: DC Optical Incremental Encoder
Signal Output: Provides incremental signals for precise motion control.
Resolution: Usually specified in terms of pulses per revolution (PPR). For the specific resolution of this model, refer to the product datasheet or documentation.
Power Supply: Operates on DC power. Specific voltage range is typically in the 5-24V DC range.
Output Signal:

Quadrature signals (A, B) for direction detection.
Optional index pulse (Z) for homing or reference.
Quadrature signals (A, B) for direction detection.
Optional index pulse (Z) for homing or reference.
Shaft or Hollow Shaft: Depending on the configuration, it might have a solid shaft or hollow shaft.
Mounting: Features a rugged design suitable for industrial environments with various mounting options.
Applications:
Position Sensing: In robotics, CNC machines, and automated systems.
Speed Feedback: For motors in industrial drives.
Motion Control: Integration in servo systems or variable frequency drives.
Key Benefits:
Durability: Designed for harsh industrial conditions.
Accuracy: High-resolution incremental feedback ensures precise control.
Compatibility: Supports a wide range of industrial controllers and interfaces.
For exact specifications like PPR, electrical connections, and environmental ratings, consulting the official Allen-Bradley datasheet for the 845H-SJDZ24CNY2C is recommended. Let me know if you need help finding that document or other related information!

Weight: 6 lbs
Dimensions: 9 × 7 × 8 in
