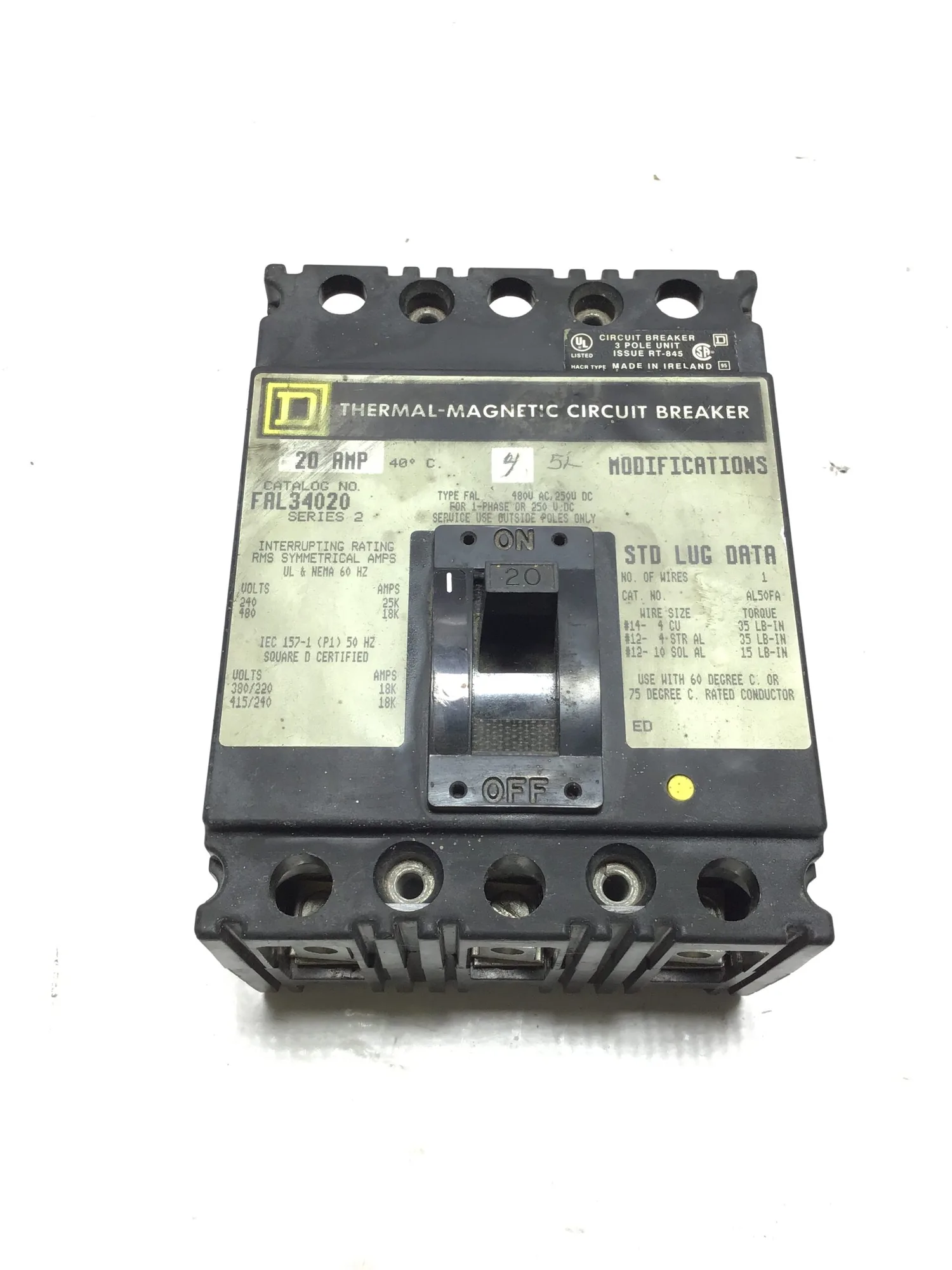

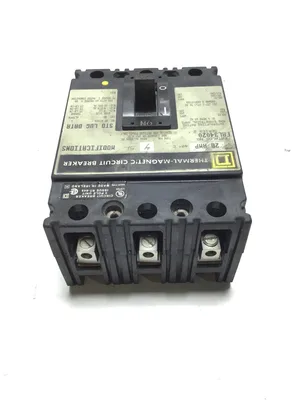

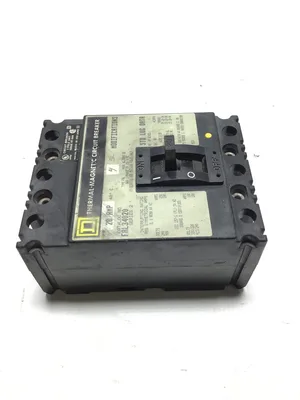

Square D FAL34020 Series 2 20AMP Thermal Magnetic Circuit Breaker 3 Pole

Introducing the Square D FAL34020 Thermal Magnetic Circuit Breaker, a robust solution designed for reliable electrical protection in demanding environments. This 3-pole circuit breaker features an impressive interrupting rating of 18K-25K Amps at 60Hz for 240/480V and 18K Amps at 50Hz for 220/380V and 240/415V, ensuring optimal performance and safety. With a voltage capacity of 480VAC and 250VDC, it is ideal for both single-phase and three-phase applications. Invest in the Square D FAL34020 to safeguard your electrical systems with confidence and efficiency.
⚡ Designed as a thermal magnetic circuit breaker for dependable overload and short-circuit protection in industrial and commercial electrical systems.
🔹 Features a 3-pole configuration, ideal for use in multi-phase electrical distribution and control panel applications.
🔋 Rated for 60Hz operation at 240/480V, making it suitable for standard industrial power systems.
⚙️ Built with an interrupting rating of 18K–25K amps at 60Hz, providing strong fault current protection.
🌍 Also supports IEC 50Hz voltage ratings of 220/380V and 240/415V, allowing compatibility with international electrical standards.
🛡️ Includes an 18K amp interrupting capacity under IEC 50Hz applications for reliable circuit interruption during fault conditions.
⚡ Suitable for 480VAC systems, commonly used in heavy-duty industrial equipment and machinery.
🔋 Supports 250VDC applications, making it versatile for both AC and DC electrical systems.
🏭 Classified as Type FAL, known for durable molded case construction and dependable performance.
🔧 Engineered for 1-phase and compatible power distribution setups, depending on installation requirements.

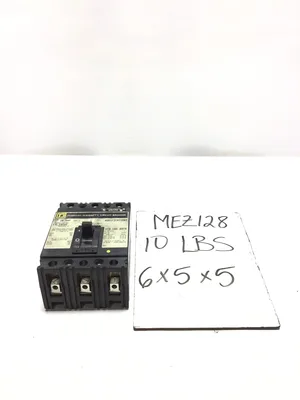

Weight: 10 lbs
Dimensions: 6 × 5 × 5 in
