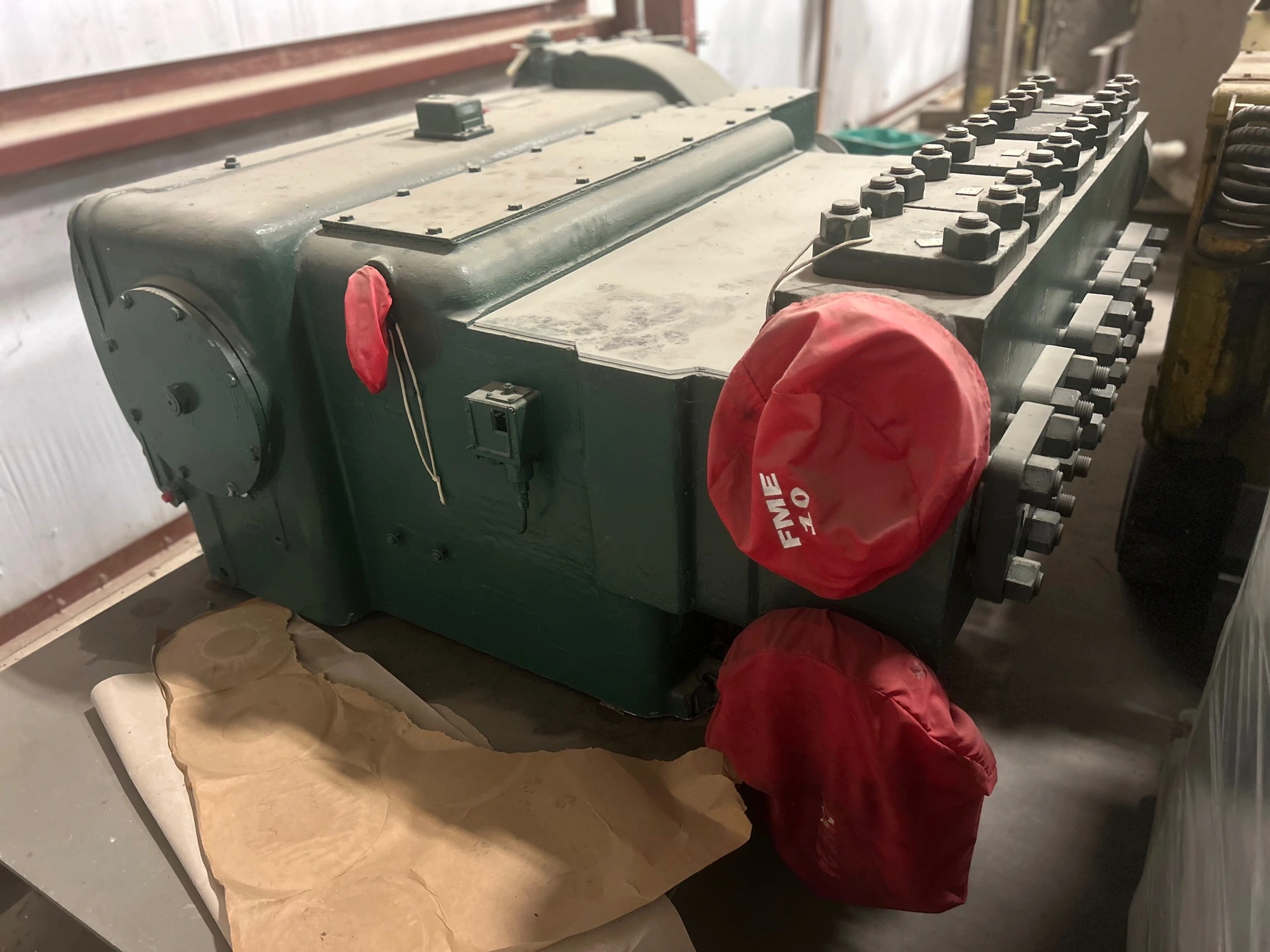

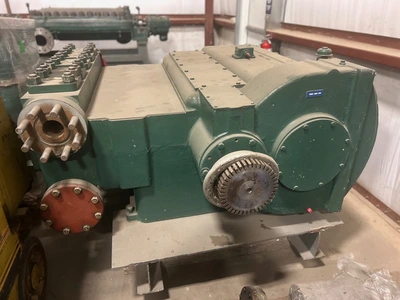

Union QX-300 Quintuplex Plunger Pump
Overview
Description
The Union QX-300 Quintuplex Pump is a powerful and versatile piece of equipment designed for heavy-duty industrial applications. Here are some key features:
Stroke: 5 inches
Stroke: 5 inches
Horsepower: 350 HP
Horsepower: 350 HP
Fluid End: 3D stainless steel
Fluid End: 3D stainless steel
Plungers: 2 1/2 inches
Plungers: 2 1/2 inches
Suction Connection: 6 inches, 150 pounds
Suction Connection: 6 inches, 150 pounds
Discharge Connection: 3 inches, 1500 pounds
Discharge Connection: 3 inches, 1500 pounds
Gear Box: 4.88:1 integral gear box
Gear Box: 4.88:1 integral gear box
Weight: 10,500 lbs
Weight: 10,500 lbs
It’s known for its durability and efficiency, making it a great choice for demanding environments.
Applications:
Pressure Testing Pump, Well Service Pump, Water Transfer Pump, Steel Mill Descaling Pump, Production Pump, Hydrotesting Pump, Hydrostatic Testing Pump, Mud Pump, Kill Truck Pump, Lift Station Pump, Condensate Pump, Cooling Tower Pump, Geothermal Pump, Steel Mill Pump, Gathering Pump
Specifications
| Dimensions | 90 × 72 × 49 in | 90 × 72 × 49 in |
|---|---|---|
| Weight | 10500 lbs | 10500 lbs |
Weight: 10500 lbs
Dimensions: 90 × 72 × 49 in
