Allen Bradley PowerFlex 40 22B-D010N104 Variable Frequency Drive

The Allen Bradley PowerFlex 40 22B-D010N104 Variable Frequency Drive (VFD) is a versatile and efficient drive designed for industrial applications. Here are some key features:
Voltage: 480 V AC, 3-phase
Voltage: 480 V AC, 3-phase
Current: 10 Amps
Current: 10 Amps
Power Output: 4 kW (5.1 HP)
Power Output: 4 kW (5.1 HP)
Control: Sensorless vector control for precise speed and torque control
Control: Sensorless vector control for precise speed and torque control

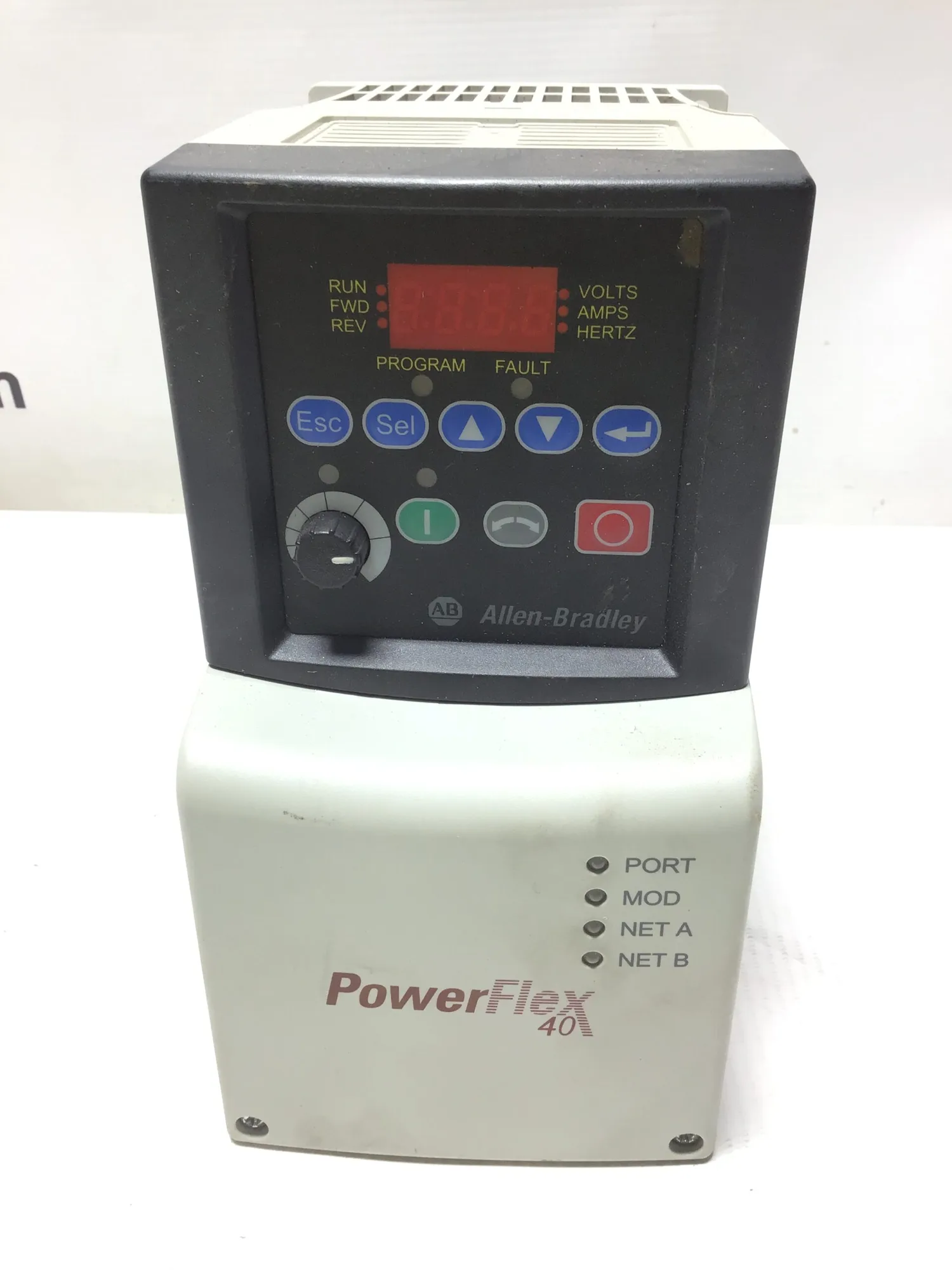

Human Interface: Fixed digital keypad with LED display for easy configuration and monitoring
Human Interface: Fixed digital keypad with LED display for easy configuration and monitoring
Inputs: Two analog inputs (one unipolar, one bipolar), three fixed digital inputs, and four programmable digital inputs
Inputs: Two analog inputs (one unipolar, one bipolar), three fixed digital inputs, and four programmable digital inputs
Outputs: One analog output (0-20 mA or 0-10 V), two opto outputs, and one form C relay output
Outputs: One analog output (0-20 mA or 0-10 V), two opto outputs, and one form C relay output
Communication: Supports DeviceNet, RS-485, and Ethernet interfaces
Communication: Supports DeviceNet, RS-485, and Ethernet interfaces
Additional Features: Timer, counter, basic logic, StepLogic functions, autotune feature, flying start, drive overload protection, and ramp regulation
Additional Features: Timer, counter, basic logic, StepLogic functions, autotune feature, flying start, drive overload protection, and ramp regulation

Weight: 10 lbs
Dimensions: 4 × 8 × 8 in
