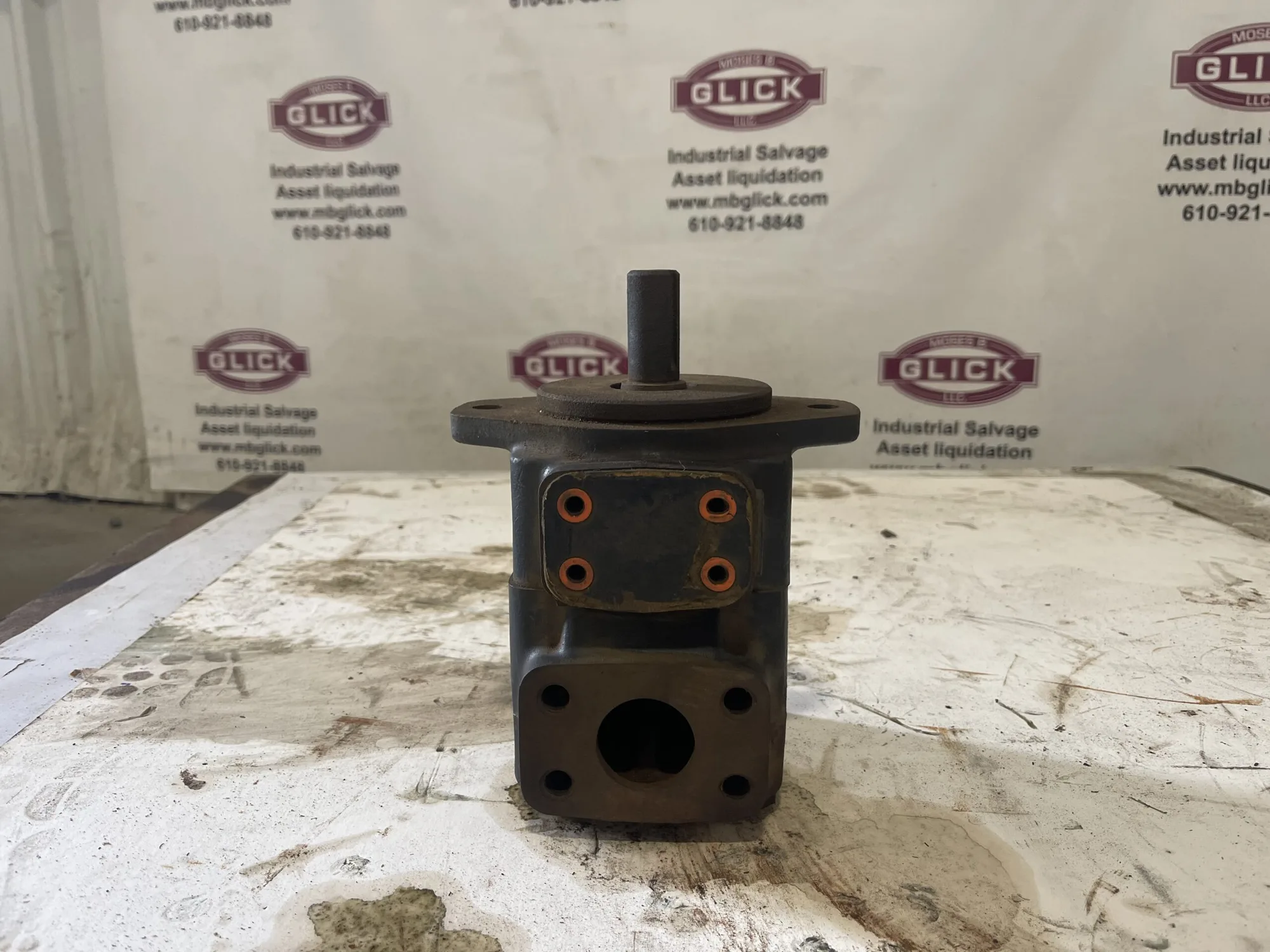

Unbranded Vane Pump 12 x 10 x 10″

A vane pump is a type of positive displacement pump that uses vanes mounted on a rotor to move fluids. It is commonly used for hydraulic systems, automotive applications, and fuel transfer due to its efficiency and ability to handle a wide range of viscosities.
🔧 How It Works:
Rotor: Spins inside a cavity (pump housing).
Rotor: Spins inside a cavity (pump housing).
Vanes: Slidably mounted in slots on the rotor and pushed outward by centrifugal force or springs.
Vanes: Slidably mounted in slots on the rotor and pushed outward by centrifugal force or springs.
Chamber Expansion: As the rotor turns, vanes maintain contact with the pump casing, forming expanding chambers on the inlet side (drawing fluid in).
Chamber Expansion: As the rotor turns, vanes maintain contact with the pump casing, forming expanding chambers on the inlet side (drawing fluid in).
Chamber Contraction: As the rotor continues turning, the chambers shrink, forcing fluid out through the outlet.
Chamber Contraction: As the rotor continues turning, the chambers shrink, forcing fluid out through the outlet.

Weight: 36 lbs
Dimensions: 12 × 10 × 10 in
