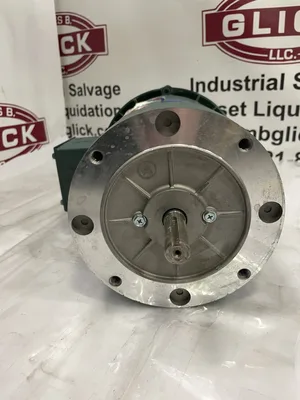

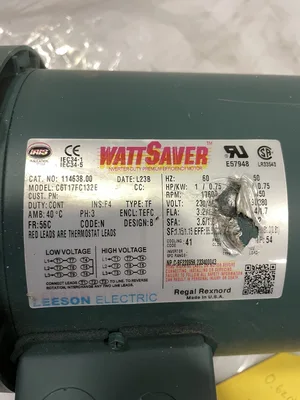

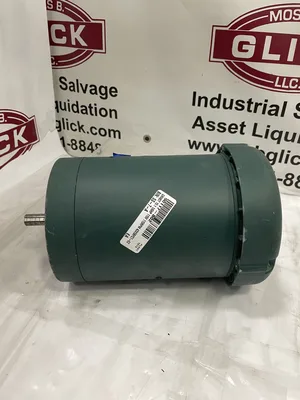

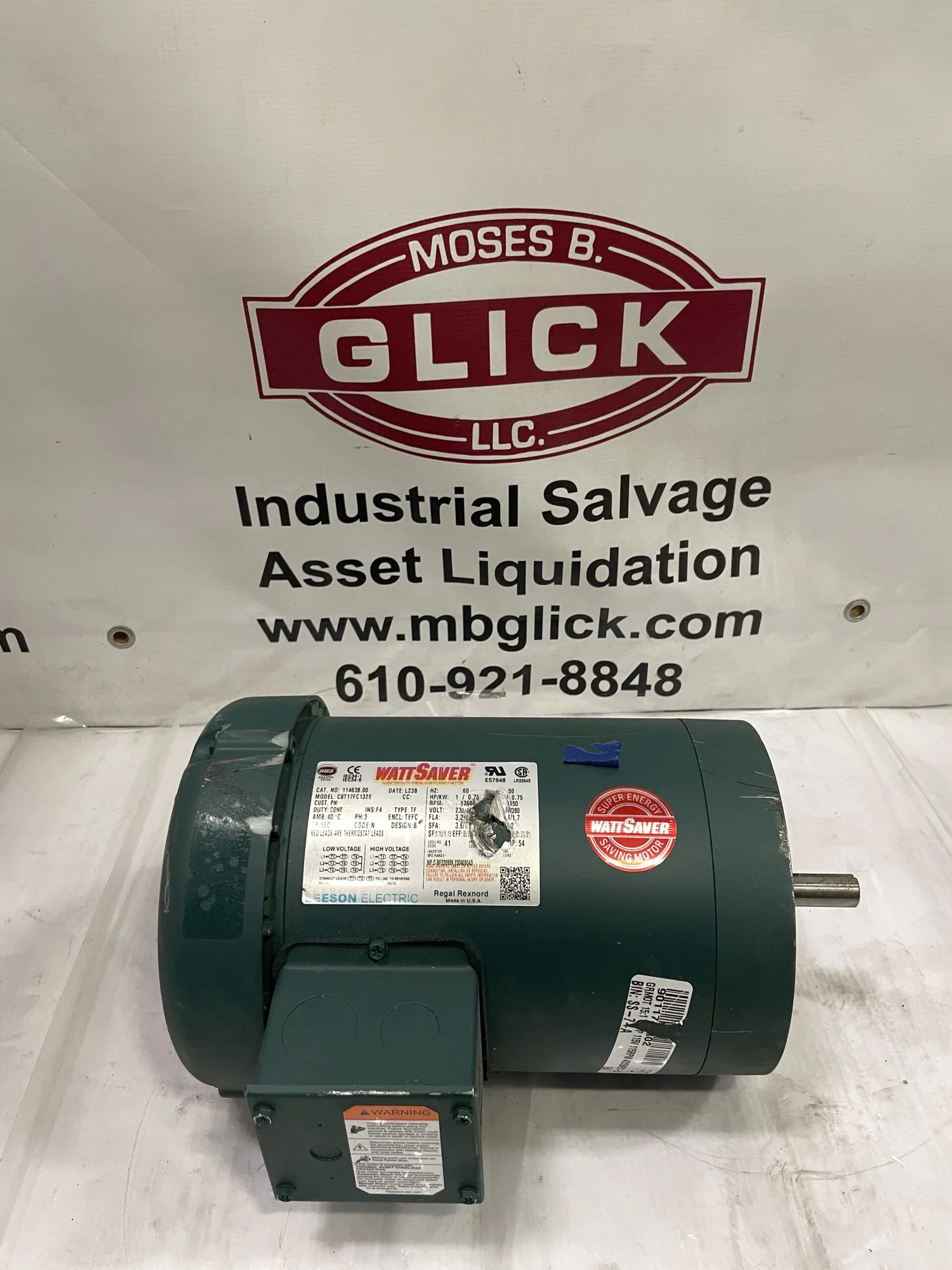

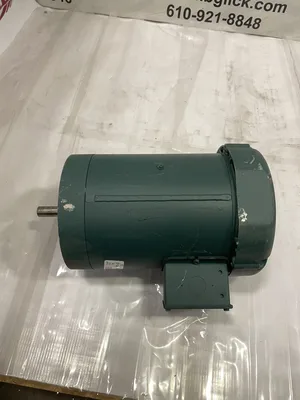

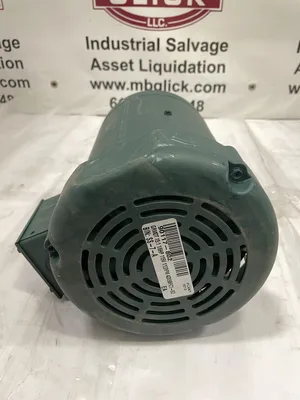

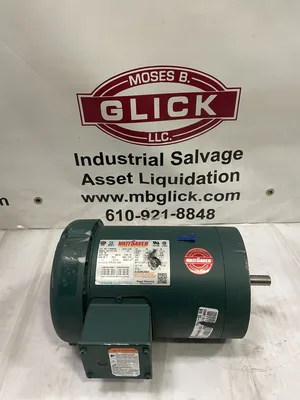

Leeson Electric WattSaver C6T17FC132E 1HP Electric Motor 1760rpm 230/460V 3PH TEFC

5/8″ APPROX. DIAMETER SHAFT
The Leeson Electric WattSaver C6T17FC132E is a premium-efficiency 1 HP, three-phase AC motor designed for reliable industrial service, operating at 1760 RPM on 230/460V, 60 Hz power. Built on a 56C frame with a C-Face mount, it features a TEFC (Totally Enclosed Fan Cooled) enclosure for protection in dusty or dirty environments, along with Class F insulation, a 1.15 service factor, and continuous-duty capability. Its dual-voltage flexibility, inverter-ready design, and robust ball bearings make it well-suited for applications such as pumps, fans, conveyors, and general machinery where energy efficiency, durability, and consistent performance are important.

Weight: 43 lbs
Dimensions: 17 × 14 × 12 in
