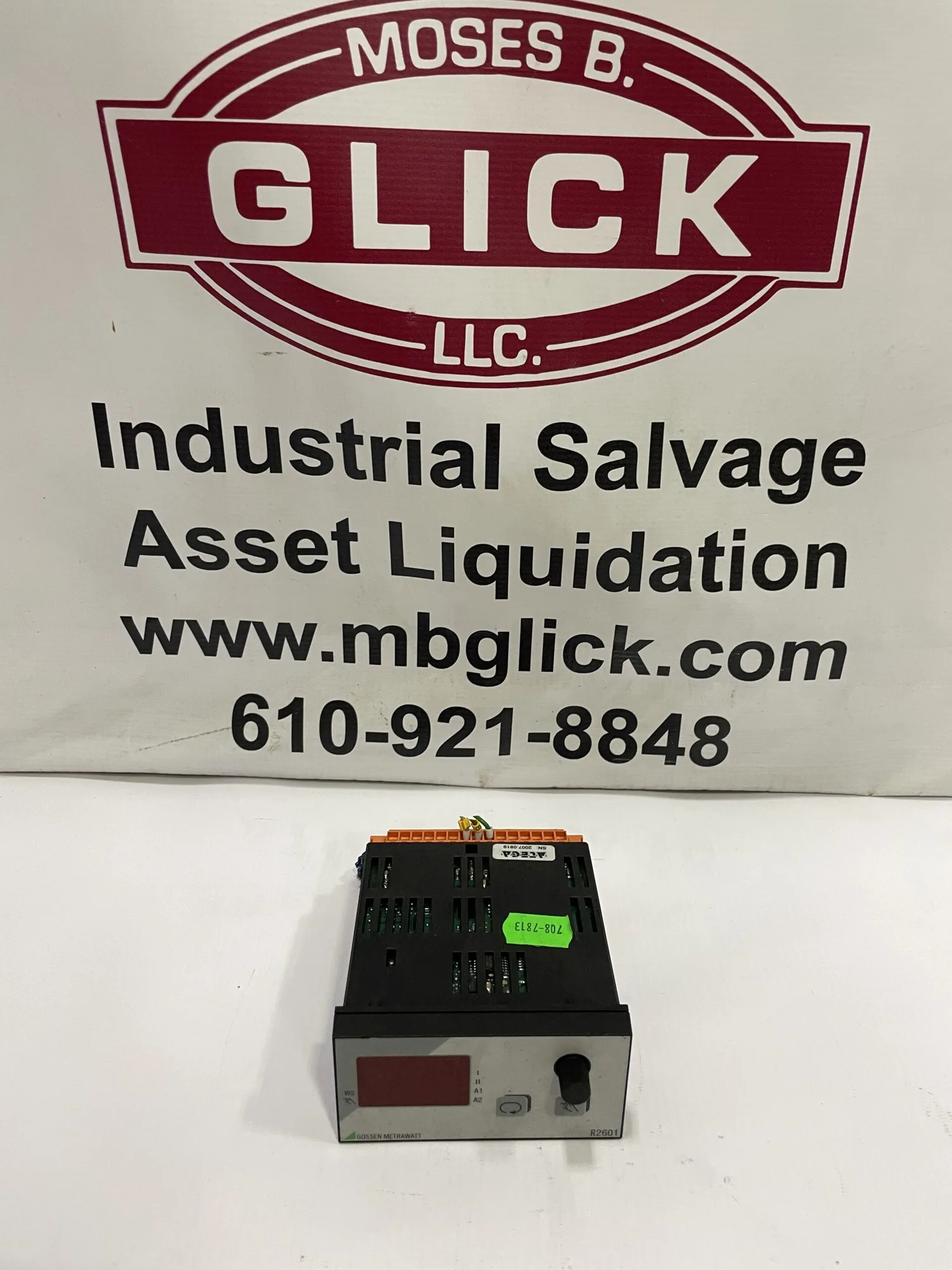

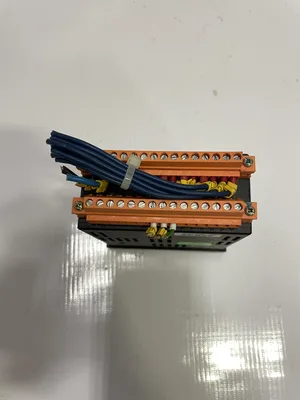

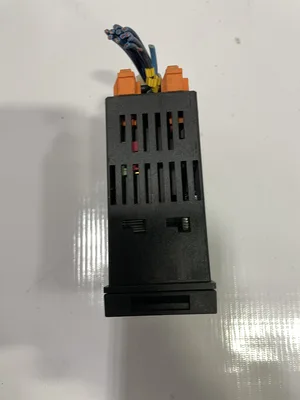

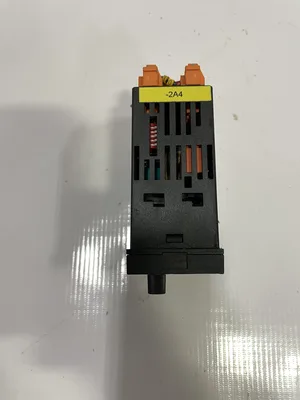

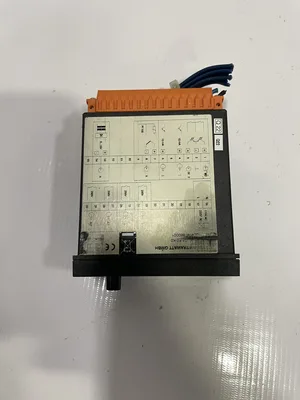

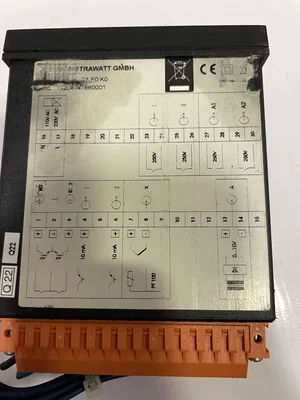

The Gossen Metrawatt R2601 is a compact, high-precision digital process controller designed for temperature regulation and general-purpose automation tasks. Offering 16-bit analog input resolution, advanced PDPI control algorithms, and self-optimization, the R2601 ensures accurate and stable control in demanding industrial environments.
This versatile unit supports a wide range of input signals including thermocouples (J, K, S, R, etc.), Pt100 RTDs, and standard analog inputs such as 0/4–20 mA and 0–10 V. It features configurable relay or transistor outputs, dual alarm functions, and a user-friendly digital interface for quick setpoint adjustments and status monitoring.
The R2601 also supports RS-232 or RS-485 communication using the DIN 19244 protocol, enabling seamless integration into modern control systems. With its robust design, flexible I/O options, and reliable control performance, the R2601 is ideal for machine builders, OEMs, and process control applications.
| Dimensions | 9 × 8 × 7 in | 9 × 8 × 7 in |
| Weight | 6 lbs | 6 lbs |
Weight: 6 lbs
Dimensions: 9 × 8 × 7 in
