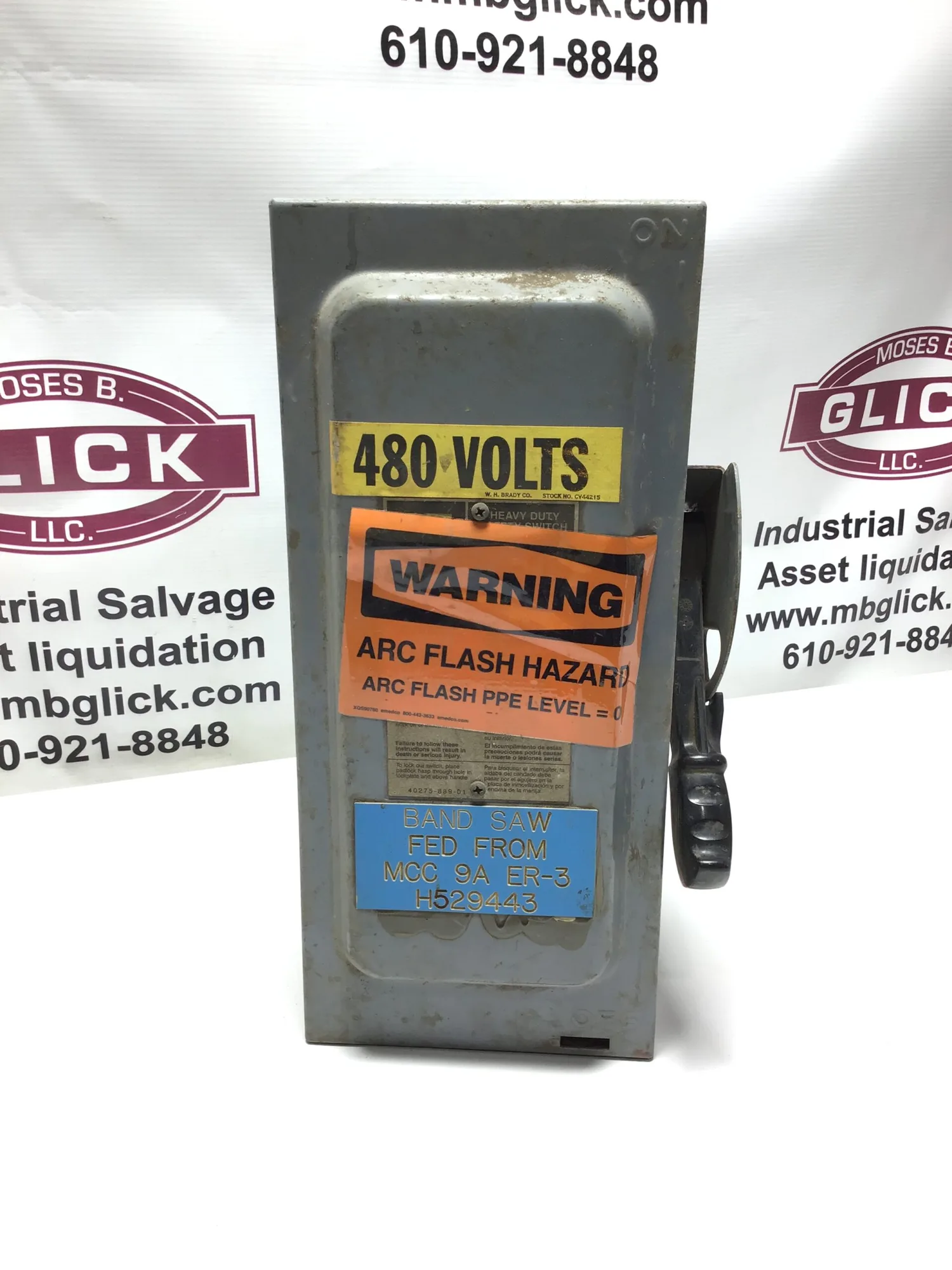

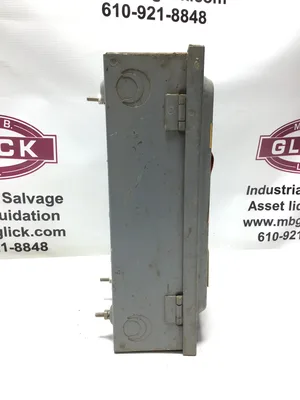

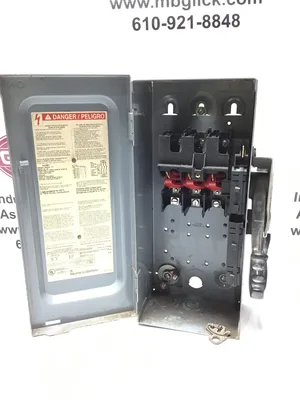

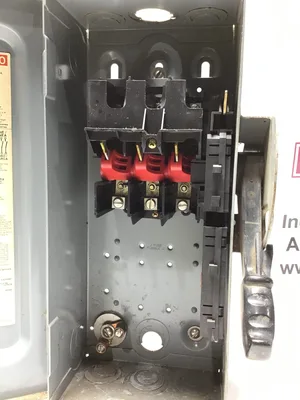

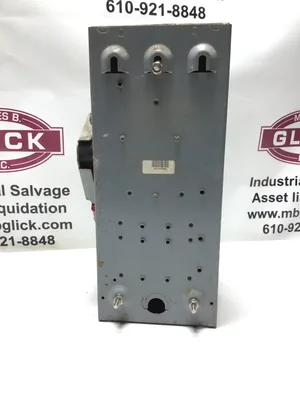

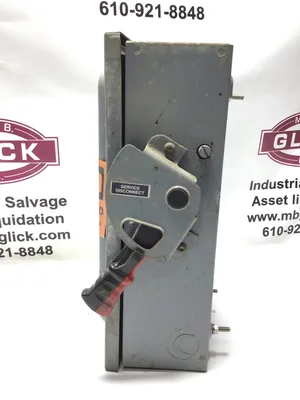

Square D F1 HU361 Safety Switch Disconnect
Overview
Description
The Square D F1 HU361 Safety Switch Disconnect is a heavy-duty, non-fusible safety switch designed for industrial applications. Here are some key features:
Current Rating: 30A
Current Rating: 30A
Voltage Rating: 600V AC/DC
Voltage Rating: 600V AC/DC
Number of Poles: 3
Number of Poles: 3
Enclosure Rating: NEMA 1 for indoor use
Enclosure Rating: NEMA 1 for indoor use
Material: Steel enclosure
Material: Steel enclosure
Operating Mechanism: Quick-make, quick-break
Operating Mechanism: Quick-make, quick-break
Interlock: Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
Interlock: Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
Weight: 8.8 lbs (4 kg)
Weight: 8.8 lbs (4 kg)
Mounting: Surface mounted
Mounting: Surface mounted
Short Circuit Current Rating: 200kA
Short Circuit Current Rating: 200kA
Specifications

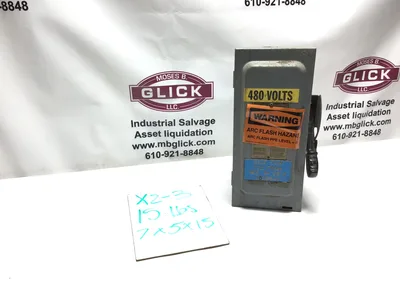

| Dimensions | 7 × 5 × 15 in | 7 × 5 × 15 in |
|---|---|---|
| Weight | 15 lbs | 15 lbs |
Weight: 15 lbs
Dimensions: 7 × 5 × 15 in
