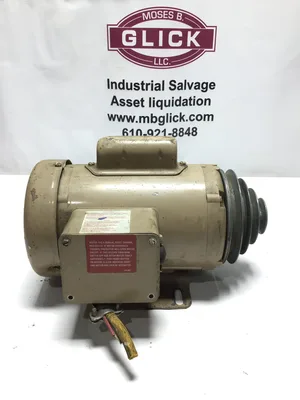

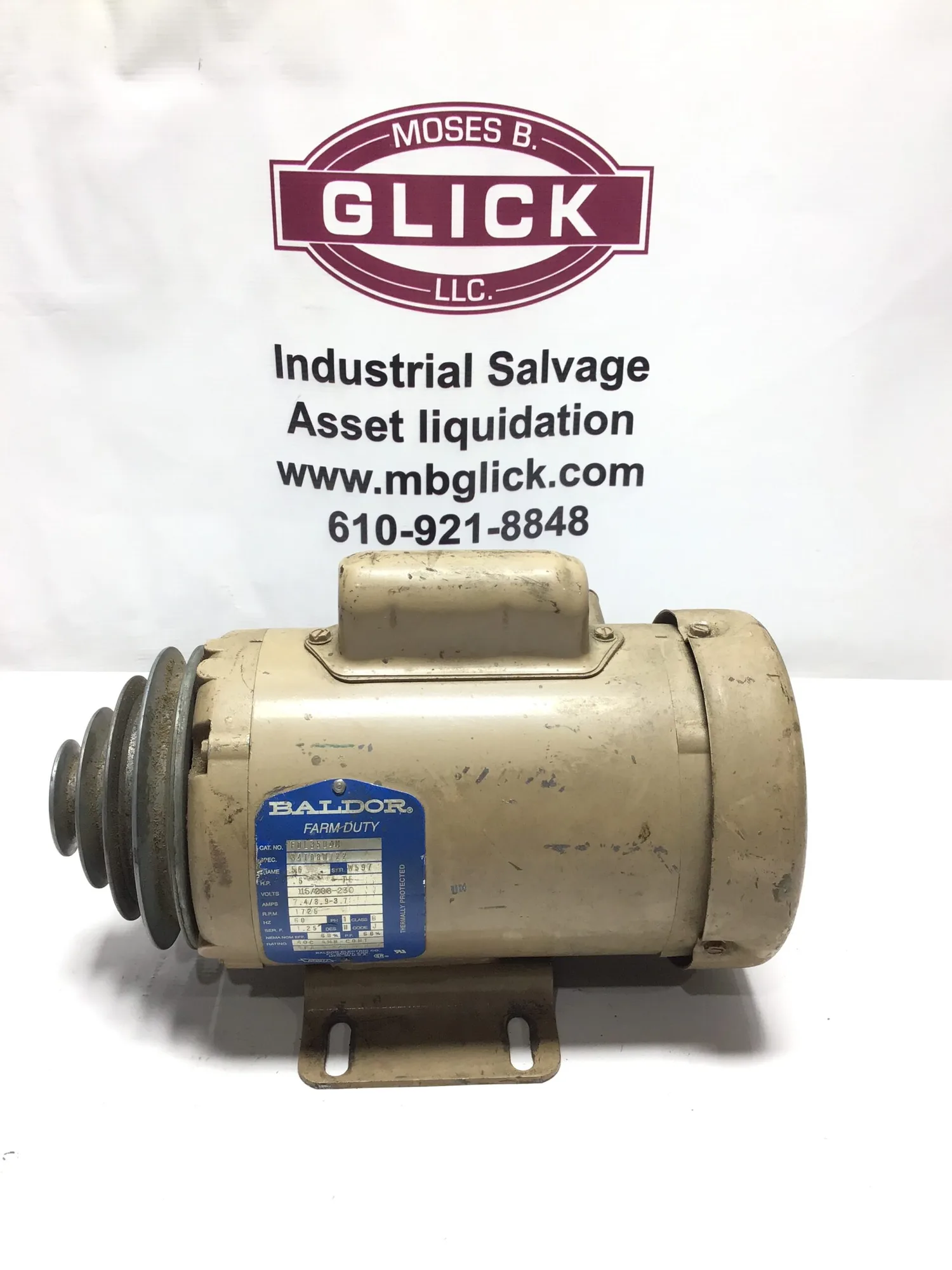

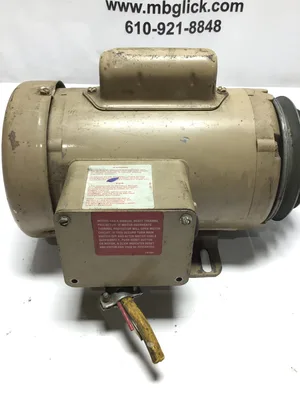

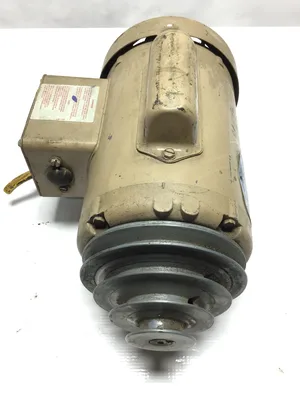

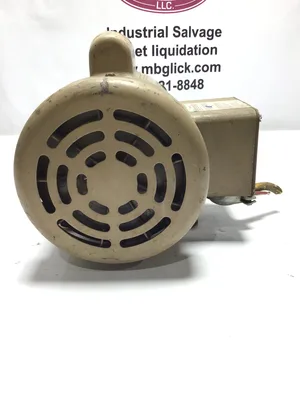

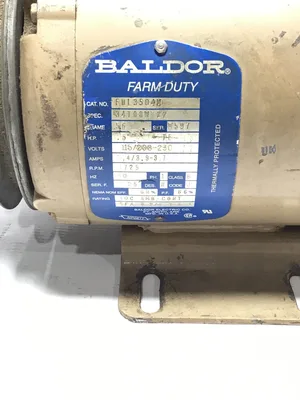

Baldor FDL3504M Farm Duty Electric Motor 1PH 5HP

Experience reliable performance with the Baldor FDL3504M Farm Duty Electric Motor, designed for demanding agricultural applications. This robust 5HP motor operates at 1725 RPM and features a durable 5.6 frame, ensuring longevity and efficiency. With a Class B insulation rating and a service factor of 1.25, it delivers consistent power while maintaining optimal temperature control. Compatible with both 115/208-230V power supplies, it offers versatility with a current draw of 7.4/3.9-3.7 Amps. Upgrade your farm equipment with this dependable motor, engineered to meet the rigorous demands of farm duty operations.
🔌 Single Phase (1PH) motor engineered for consistent and reliable operation
💪 Powerful 5 Horsepower (5HP) output suitable for pumps, compressors, conveyors, and farm equipment
⚙️ Rated speed of 1725 RPM provides steady and efficient performance for medium-speed machinery
🔄 Operates at 60Hz frequency for standard electrical systems
🔋 Dual voltage capability: 115/208-230V allowing flexible installation options
🔌 Full load amperage: 7.4 Amps (115V), 3.9–3.7 Amps (208-230V) for efficient energy use
📏 NEMA Frame Size: 56 ensures compatibility with standard mounts and easy replacement
🧠 Class B insulation offers dependable thermal protection and extended motor life
⚡ Design N motor provides normal starting torque with low starting current
🔁 Service Factor (SF): 1.25 allowing the motor to handle temporary overload conditions safely

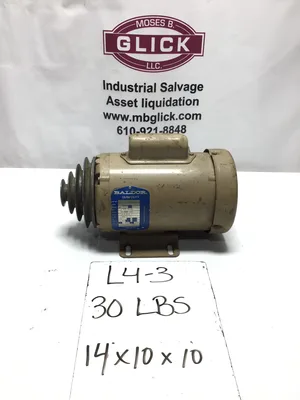

Weight: 30 lbs
Dimensions: 14 × 10 × 10 in
