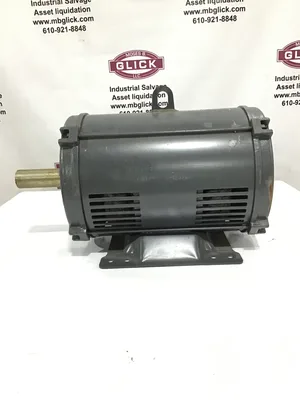

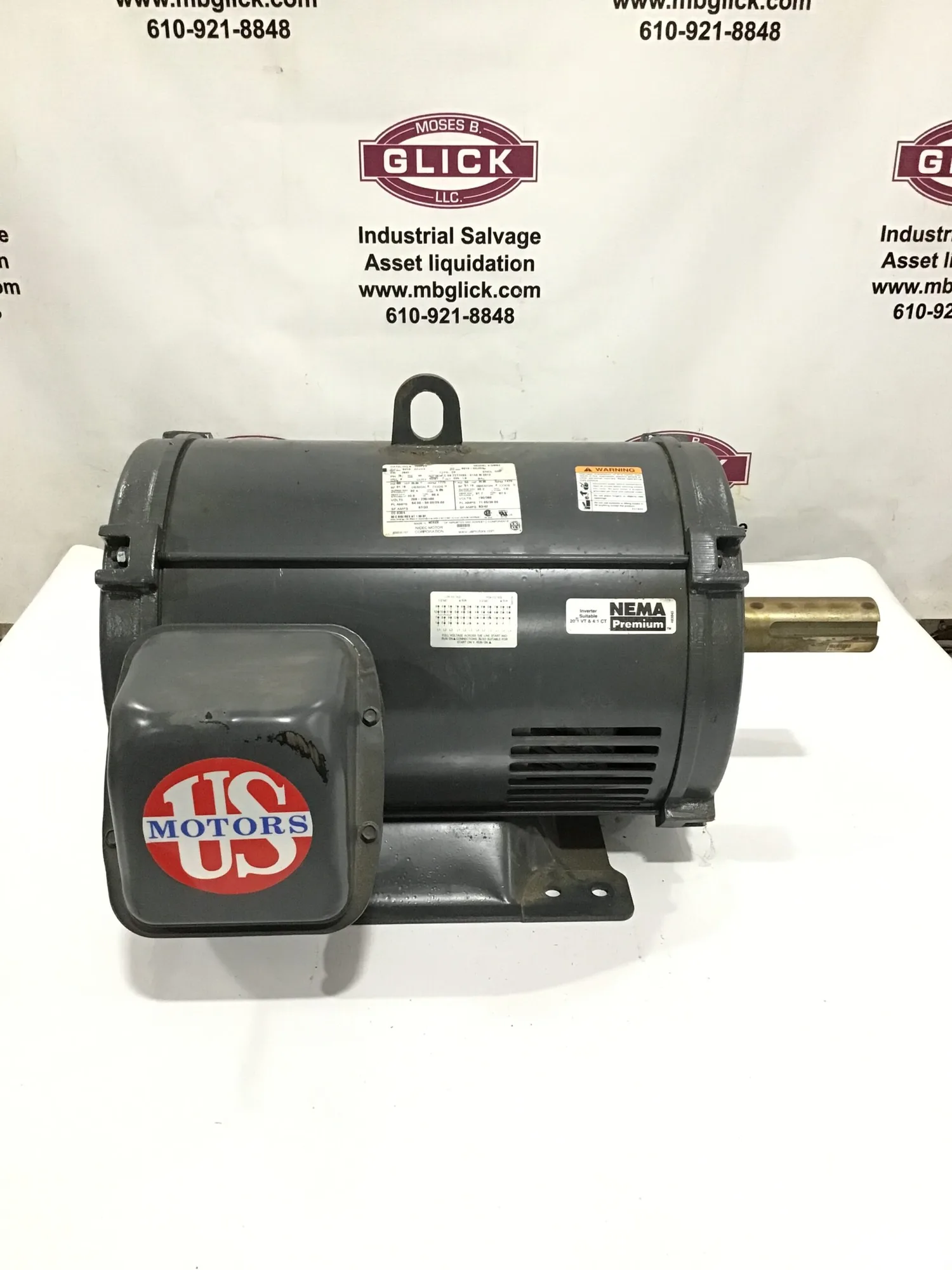

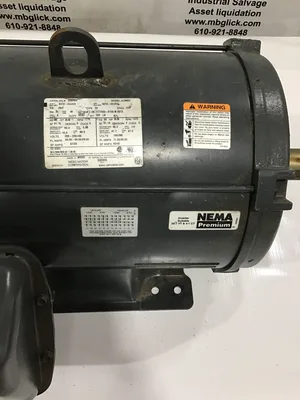

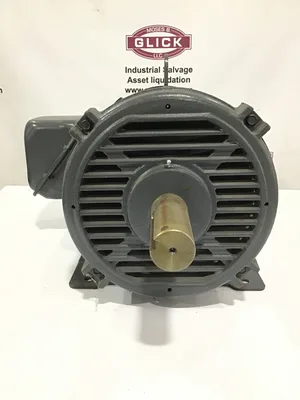

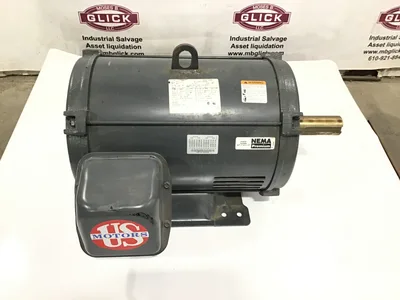

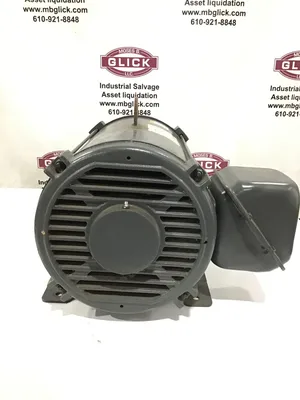

US Motors DB93 25HP Nidec General Purpose Motor 3PH 208-230/460V 1775 RPM
Overview
Description
Power your operation with this high-performance 25HP industrial motor from U.S. Motors, a trusted brand under Nidec Motor Corporation, known for durability and efficiency in demanding environments. Model DB93 (Catalog #026PZD), built on a rugged 284T frame, is a 3-phase AC induction motor designed for consistent torque, long service life, and reliable operation in applications like pumps, compressors, conveyors, and more. Featuring NEMA Premium efficiency and inverter-duty capability, it supports VFD use for precise speed control while helping reduce energy costs, making it an excellent choice for both replacement and upgrade in industrial systems.
⚙️ Key Specifications:
Horsepower: 25 HP
Phase: 3 Phase (3PH)
Voltage: 208-230/460V
RPM: 1775
Frame: 284T
Enclosure: ODP (Open Drip Proof)
Frequency: 60 Hz
Service Factor: 1.15
Design: B
Efficiency: ~92.4% (Energy Efficient / NEMA Premium)
Inverter Duty: Yes (20:1 VT / 4:1 CT)
Weight: Approx. 225 lbs
🏭 Features & Benefits
Heavy-duty industrial motor
Energy-efficient design
Inverter-rated
Rugged construction
Built by Nidec Motor Corporation
Specifications
| Dimensions | 28 × 24 × 16 in | 28 × 24 × 16 in |
|---|---|---|

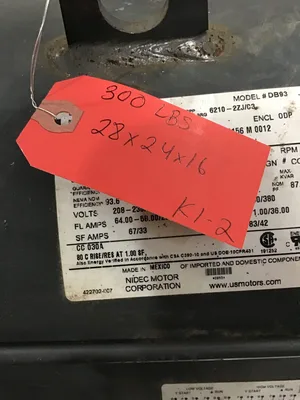

| Weight | 300 lbs | 300 lbs |
Weight: 300 lbs
Dimensions: 28 × 24 × 16 in
