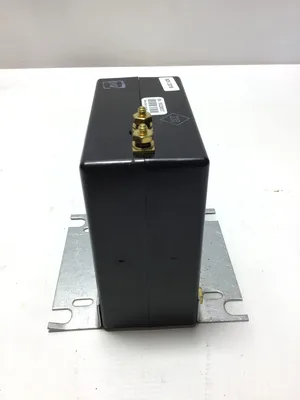

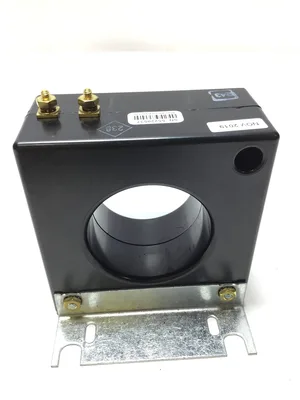

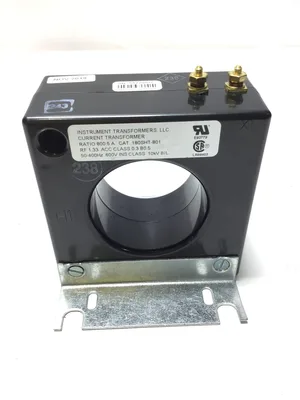

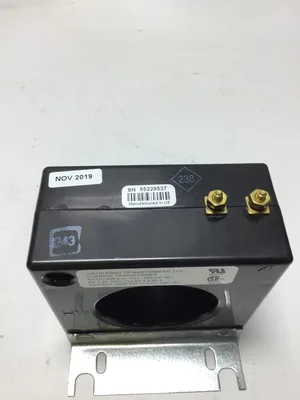

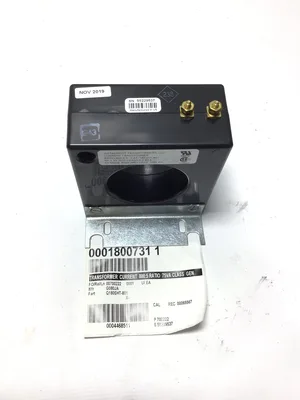

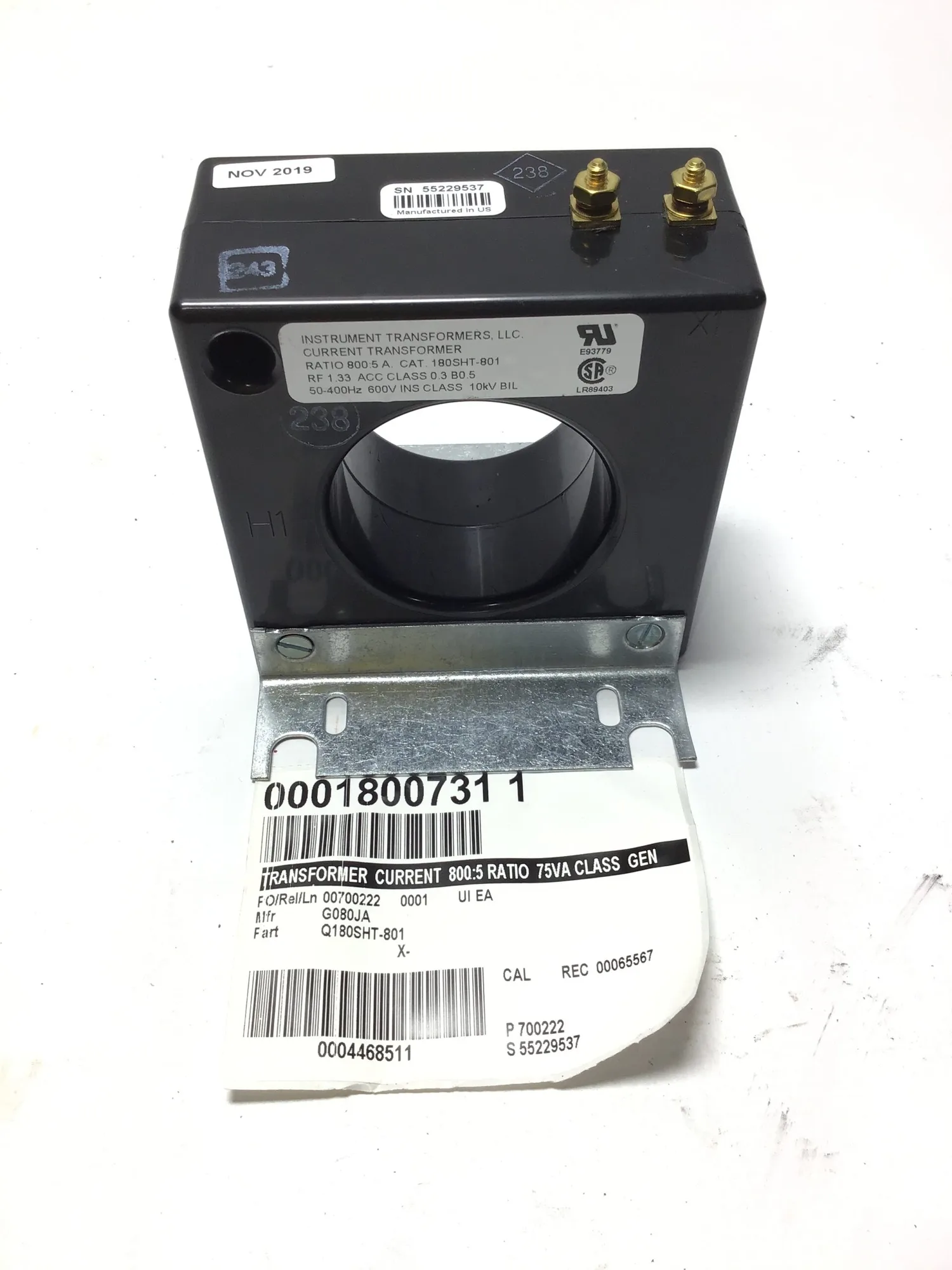

Engineered for precision and durability, this Instrument Transformers, LLC Q180SHT-801 Current Transformer delivers reliable high-accuracy performance with an 800:5 ratio, 75VA burden, and Class 0.3 metering accuracy, making it ideal for demanding industrial and commercial power monitoring applications. Built in the USA and designed for 50/60Hz systems with a 600V insulation class and 10kV BIL, this CT ensures consistent, dependable measurements in control panels, submetering, and energy management setups. Its robust construction, secure terminal connections, and included mounting bracket make installation straightforward while maintaining long-term operational stability in tough electrical environments.
Key Features:
Brand: Instrument Transformers, LLC
Model: Q180SHT-801
Ratio: 800:5
Accuracy Class: 0.3
Burden: 75 VA
Frequency: 50–60 Hz
Insulation Class: 600V
BIL Rating: 10kV
Category: CAT II
Applications
Electrical power monitoring
Energy metering systems
Industrial control panels
Utility and submetering installations

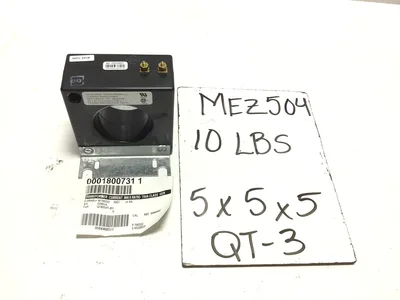

| Dimensions | 5 × 5 × 5 in | 5 × 5 × 5 in |
| Weight | 10 lbs | 10 lbs |
Weight: 10 lbs
Dimensions: 5 × 5 × 5 in
