WEG PEWWE15-18-254T Induction Motor15HP 3-Phase1780RPM
Overview
Description
Power your operation with this 15HP Premium Efficiency 3-Phase Induction Motor (Model: PEWWE15-18-254T), built for reliable, continuous industrial performance. Featuring a rugged TEFC (Totally Enclosed Fan Cooled) enclosure, IP54 protection, and NEMA Premium efficiency, this motor helps reduce energy costs while standing up to demanding environments. With dual voltage 230/460V, 1780 RPM, and a 254T frame, it delivers consistent torque and versatile compatibility for applications like pumps, compressors, conveyors, and HVAC systems. Manufactured by Wolong Electric Corporation, this heavy-duty motor offers durability, efficiency, and dependable operation—making it a cost-effective solution for replacements or upgrades in any industrial setting.
⚙️ Key Specifications:
Brand/Manufacturer: WEG
Model Number: PEWWE15-18-254T
Efficiency Rating: Premium Efficiency (NEMA Premium)
Horsepower: 15 HP
Voltage: 230/460V (Dual Voltage)
Frequency: 60 Hz
RPM: 1780 RPM
Amperage: 36.4 / 18.2 A
Enclosure: TEFC
Frame Size: 254T
Insulation Class: F
Service Factor: 1.15
Protection Rating: IP54

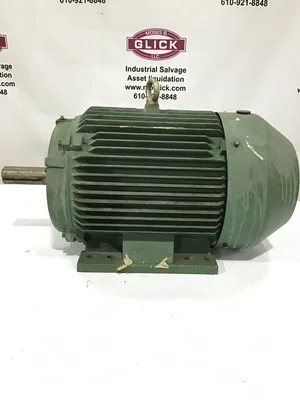

Mounting: Foot-mounted base

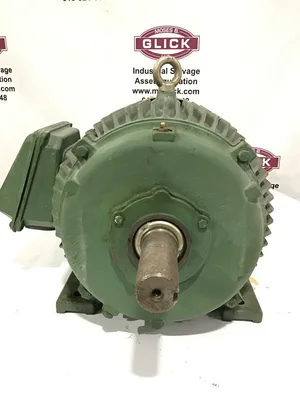

Shaft: Standard keyed shaft
Bearings: Heavy-duty (ODE Bearing: 6309 C3)
💡 Features & Benefits:
Energy Efficient Design
TEFC Enclosure
Dual Voltage Capability
Industrial Grade Construction
Reliable Performance
🏭 Common Applications:
Air compressors
Industrial pumps
Conveyor systems
HVAC equipment
Agricultural machinery
Manufacturing equipment
Specifications

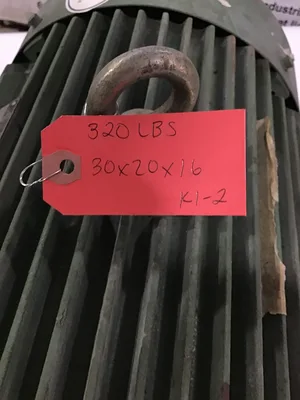

| Dimensions | 30 × 20 × 16 in | 30 × 20 × 16 in |
|---|---|---|
| Weight | 320 lbs | 320 lbs |
Weight: 320 lbs
Dimensions: 30 × 20 × 16 in
