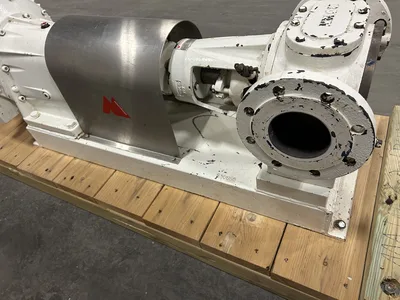

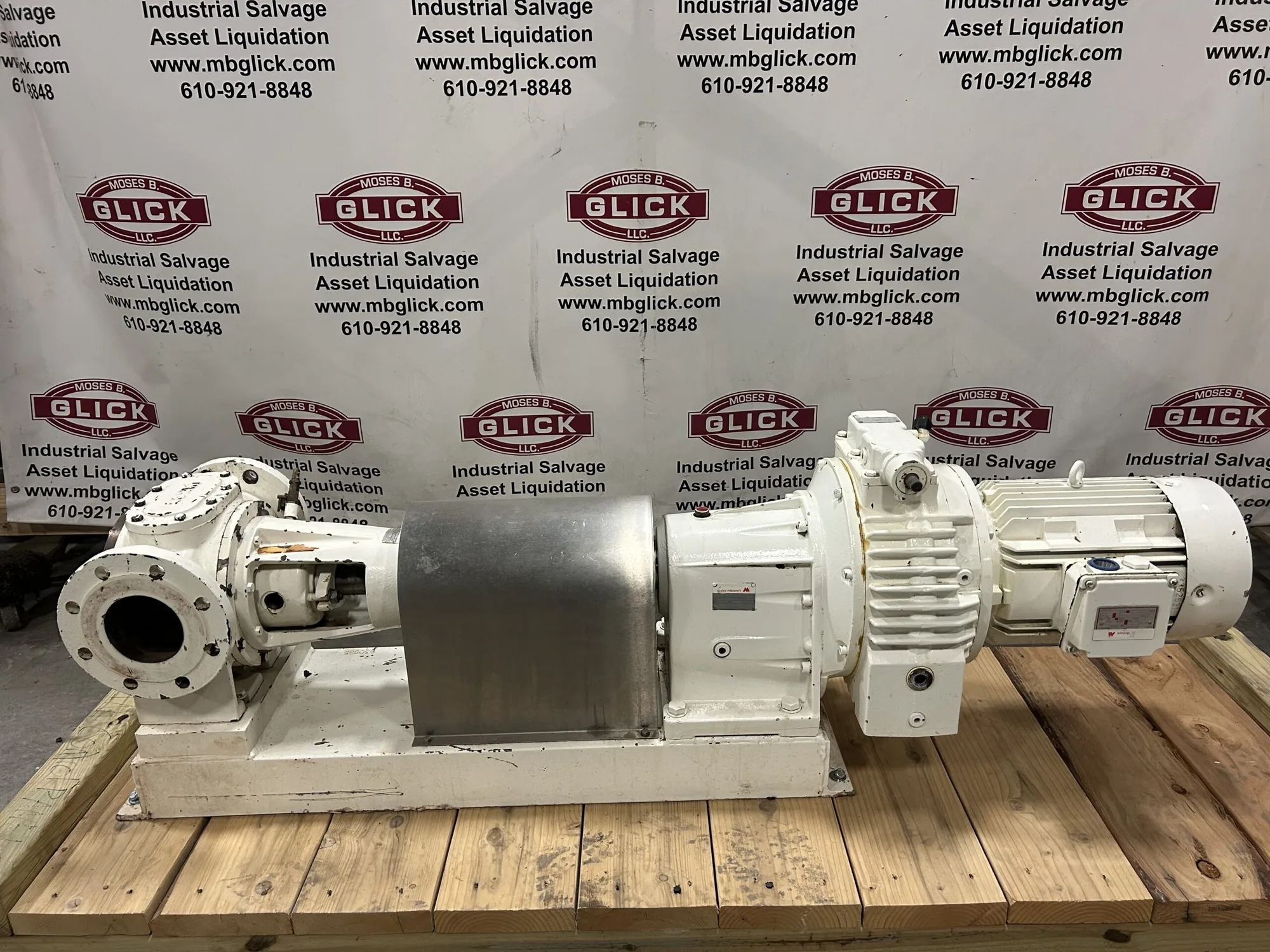

4″ Desmi Rotan HD101-ECHD Jacketed Internal Gear Chocolate Pump + 30HP Motor

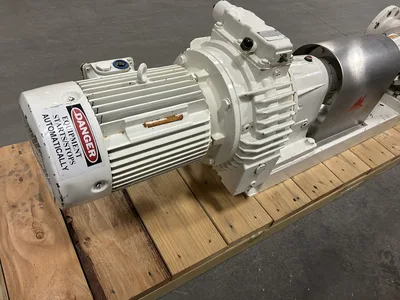

3-PHASE MOTOR.
3/4″ JACKET PORTS.
Application: Ideal for high-viscosity, non-corrosive liquids, including fuel, oils, grease, asphalt, and sludge.
Design & Construction: The HD series is known for a sturdy, simple design, often utilizing a cast iron or carbon steel housing. The 101E typically represents a specific size or configuration in the HD range.
Performance: Capable of handling high viscosities, often up to 250,000 cSt and high temperatures, up to 482∘F.
Key Features:

“True” Back Pull-Out: Allows for maintenance on internal parts without disturbing the pump housing or piping.
90-Degree Ports: Specifically configured for angular flow.
Jacketed (ECHD): Typically indicates the presence of a heating/cooling jacket for temperature control of the pumped medium.
Internal Gear: Provides low-pulsation, consistent flow.
“True” Back Pull-Out: Allows for maintenance on internal parts without disturbing the pump housing or piping.
90-Degree Ports: Specifically configured for angular flow.
Jacketed (ECHD): Typically indicates the presence of a heating/cooling jacket for temperature control of the pumped medium.
Internal Gear: Provides low-pulsation, consistent flow.
Maintenance: Designed with easily replaceable parts, with maintenance kits available for in-field overhauls.

Weight: 915 lbs
Dimensions: 79 × 24 × 26 in
