Emerson H21663 Industrial Electric Motor 3PH 10HP 1.15SF

Experience unparalleled performance with the Emerson H21663 Industrial Electric Motor, designed for heavy-duty applications. This robust 3-phase motor delivers a powerful 10HP at 1760 RPM, ensuring efficient operation across various industrial settings. With a voltage range of 208-230/460V and a service factor of 1.15, it provides reliable power while maintaining energy efficiency. The motor operates at 60Hz and features a current rating of 12.30/27.30-24.60A, making it suitable for demanding tasks. Built to last, the Emerson H21663 is the ideal choice for those seeking durability and high performance in their industrial machinery.
⚡ Power Rating: 10 HP (Horsepower) – designed for industrial-grade applications
⚙️ Phase: 3 Phase motor for stable, efficient power delivery in commercial systems
🔌 Voltage: 208-230/460V dual voltage flexibility for different power setups
🔄 Speed: 1760 RPM (approx. 4-pole motor, standard industrial speed range)
📅 Frequency: 60Hz operation for standard North American industrial systems
📈 Full Load Amps: 12.30 / 27.30 – 24.60A depending on voltage configuration
🛠️ Frame Size: 215T frame for compatibility with many industrial mounts and equipment
🔧 Service Factor: 1.15 SF allowing short-term overload capacity without damage
🏷️ Design Type: Design B – balanced torque and efficiency for general-purpose use
🔩 Code Letter: H – indicates locked rotor kVA range for electrical starting characteristics

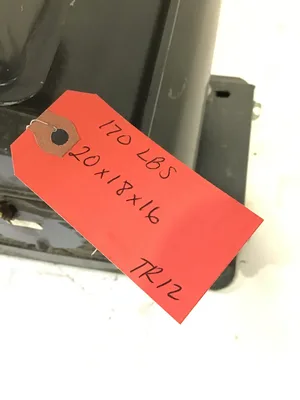

Weight: 170 lbs
Dimensions: 20 × 18 × 16 in
