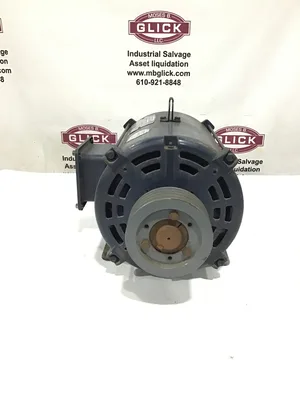

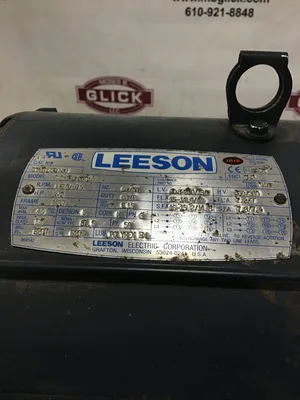

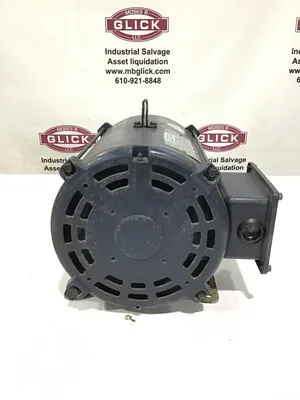

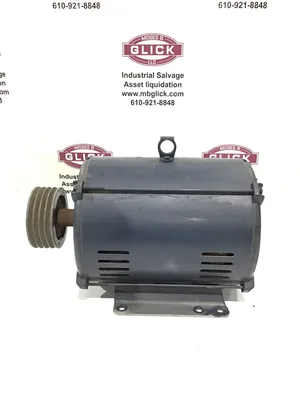

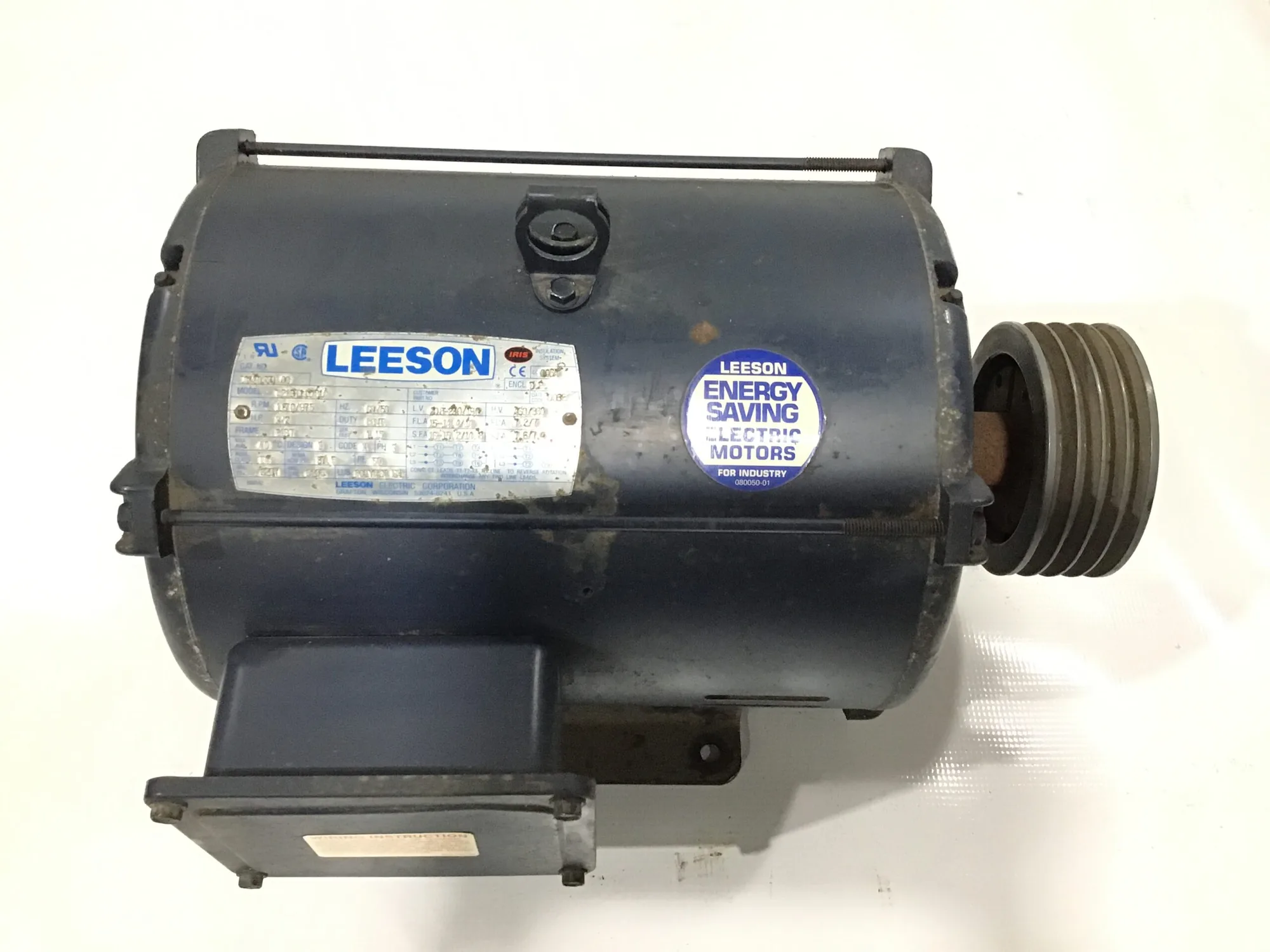

USED LEESON ⚙️ MODEL: LEESON 1213T11DB1C BUILT FOR GENERAL-PURPOSE AND HEAVY-DUTY EQUIPMENT USE

Experience unparalleled performance with the Leeson 1213T11DB1C Electric Motor, designed for efficiency and reliability. Operating at 975/1170 RPM with a robust 3/2HP output, this motor is perfect for a variety of industrial applications. It features a maximum ambient temperature of 40°C and is built with Insulation Class F4, ensuring durability in demanding environments. With a 1.15 service factor and versatile voltage options of 208-230V for low voltage and 460-330V for high voltage, this 3-phase motor operates seamlessly at both 50 and 60Hz. The 213T frame design guarantees easy installation and compatibility, making it an ideal choice for your power needs. Upgrade your machinery with the Leeson Electric Motor and enjoy enhanced productivity and longevity.
⚙️ Model: Leeson 1213T11DB1C built for general-purpose and heavy-duty equipment use
🔁 Dual speed operation: 975 RPM / 1170 RPM for flexible performance across varying load conditions
💪 Power rating: 3/2 HP output, providing strong torque and efficient energy use for machinery operations
🔌 Voltage compatibility: 208-230/190V Low Voltage and 460/330V High Voltage for versatile installation setups
⚡ Frequency: 50/60Hz compatible, suitable for global industrial power systems
🏗️ Frame size: NEMA 213T Frame, ensuring standard mounting and strong mechanical support
🌡️ Maximum ambient temperature: 40°C, designed for stable operation in normal industrial environments
🛡️ Insulation Class F construction for improved thermal resistance and extended motor lifespan under load
📊 Service Factor: 1.15SF, allowing safe overload capability for short-duration peak demands
⚙️ Design Type: Design D motor, optimized for high starting torque and heavy load applications
🔋 Electrical Code: Code K, engineered for specific locked-rotor current and performance characteristics
🔄 Phase type: 3 Phase motor, providing smooth, efficient, and consistent power delivery

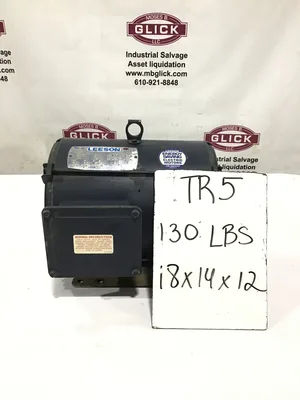

Weight: 130 lbs
Dimensions: 18 × 14 × 12 in
